Striebel & John Série AK Quadro de distribuição de superfície 60 PLE 5 filas sem porta IP65 IK08 cinzento claro RAL 7035

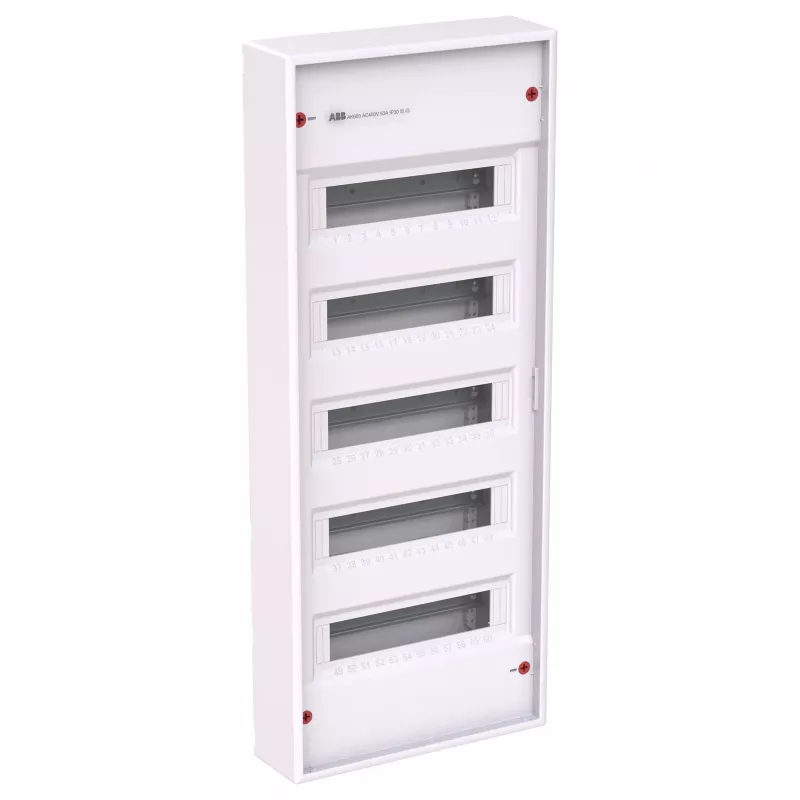

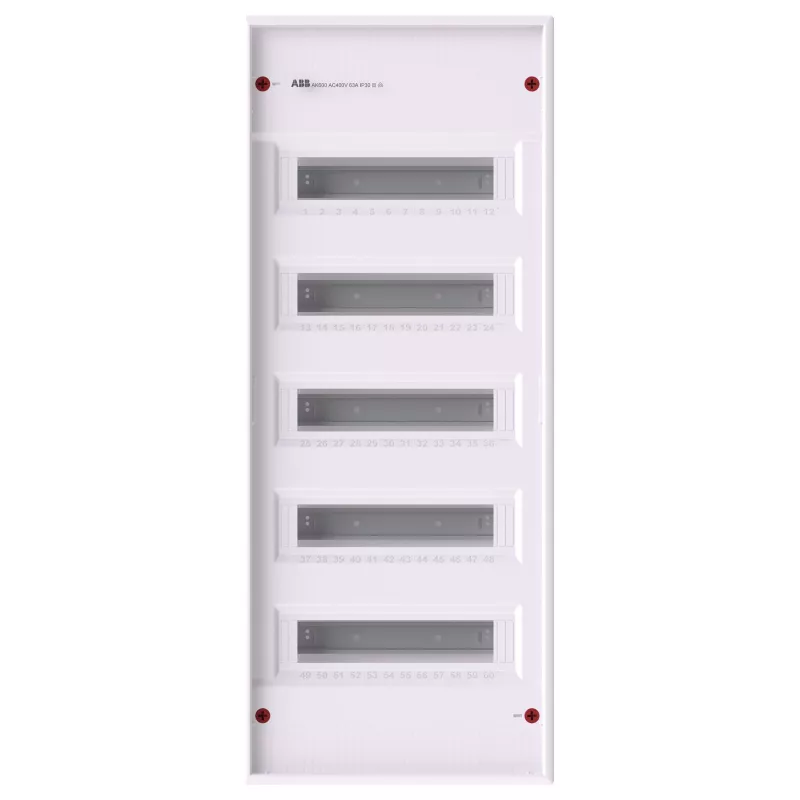

The Striebel & John AK660N42 distribution board is a high-quality surface-mounted enclosure designed for electrical installations requiring robust protection and ample capacity. With 60 module units (PLE) across 5 rows, it offers generous space for circuit breakers, RCDs, and other DIN rail components. The board is manufactured from high-grade thermoplastic, ensuring durability and resistance to environmental factors. Its IP65 rating makes it suitable for outdoor or harsh indoor environments, while IK08 impact resistance provides mechanical protection. The light grey (RAL 7035) finish blends seamlessly with modern installations.

Advantages

This distribution board provides exceptional flexibility and safety. The surface-mounted design simplifies installation on walls without recessing. Pre-punched metric knockouts allow easy cable entry from multiple directions. Removable PE/N terminal blocks are included for convenient wiring. The halogen-free, UV-resistant material ensures long service life even in direct sunlight. Compliance with DIN VDE 0603-1 and EN 61439-3 guarantees adherence to international standards.

Suitable for

• Residential and commercial electrical distribution
• Outdoor installations such as gardens, terraces, or building facades
• Industrial environments requiring dust and water ingress protection
• Solar PV systems (DC side up to 1500 V)

Key specifications

• Mounting Type: Surface-mounted (AP)
• Number of Rows: 5
• Module Units (PLE): 60 (12 modules per row)
• Door Included: No
• Enclosure Material: High-quality Thermoplastic
• Protection Class (IP Rating): IP65
• Impact Resistance (IK Code): IK08
• Rated Insulation Voltage (Ui): 1000 V AC / 1500 V DC
• Rated Current (In): Up to 125 A
• Glow Wire Test Temperature: 750 °C
• Color: Light Grey (RAL 7035)
• Cable Entry Type: Pre-punched metric knockouts

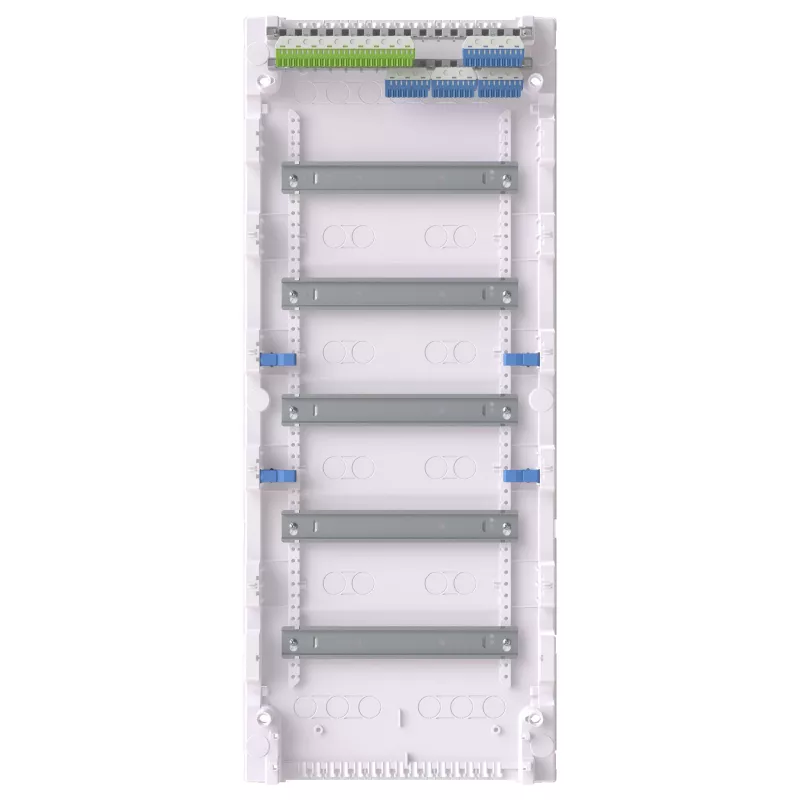

• PE/N Terminal Blocks: Included (removable)
• Operating Temperature Range: -25 to +40 °C
• Storage Temperature Range: -35 to +70 °C
• Standards Compliance: DIN VDE 0603-1, EN 61439-3
• Halogen-Free: Yes
• UV Resistance: Yes
• Manufacturer Series: AK Series

Recommendations

For a complete installation, pair this distribution board with appropriate DIN rail components and cable glands. Ensure the mounting surface is flat and sturdy. Always follow local electrical codes and regulations.
