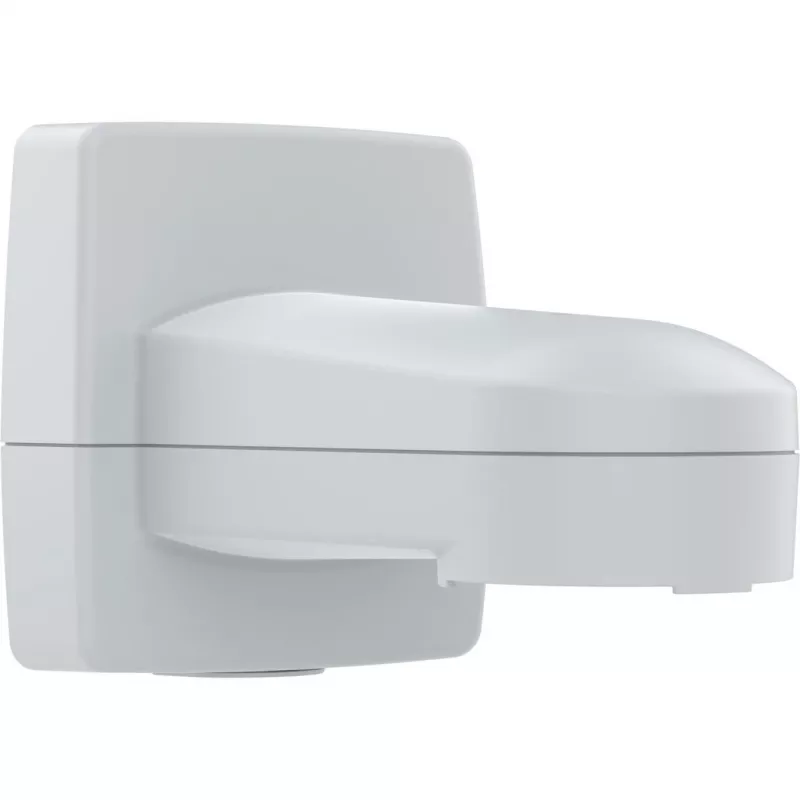

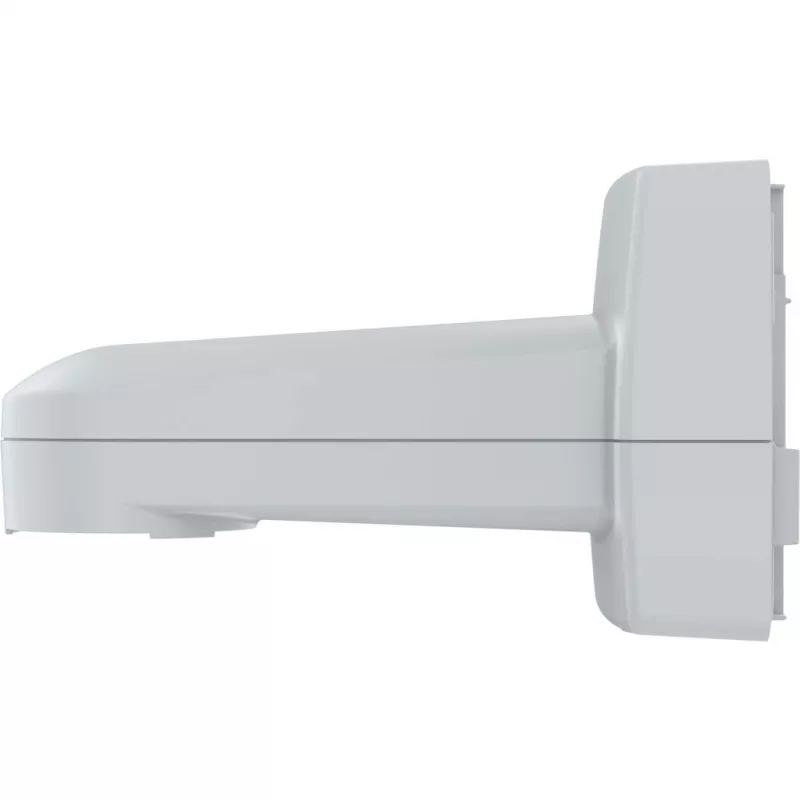

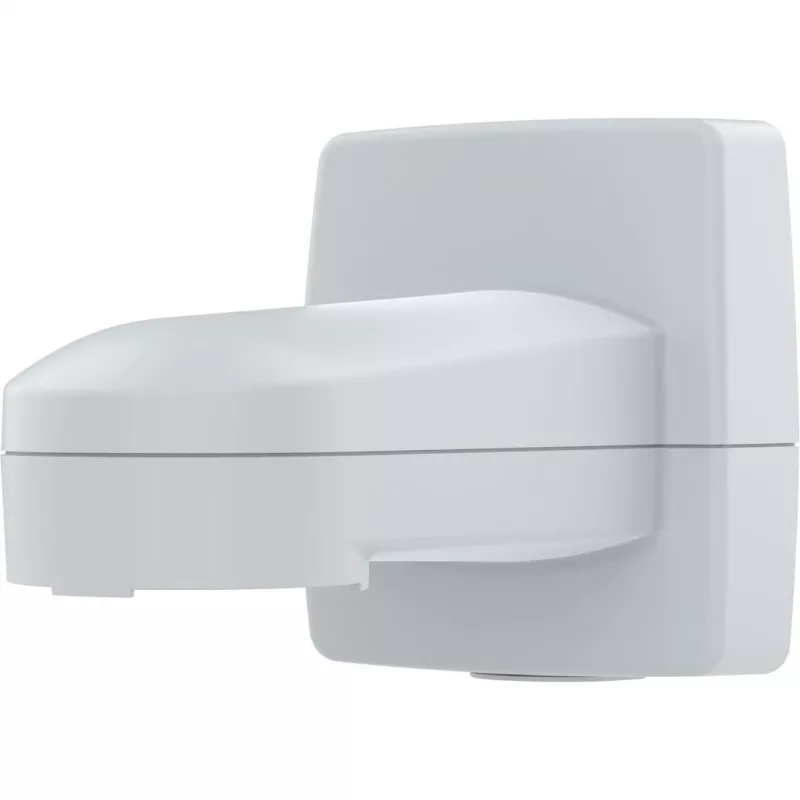

Suporte Axis TQ5001-E universal branco 152,6x291,8x175,4 mm

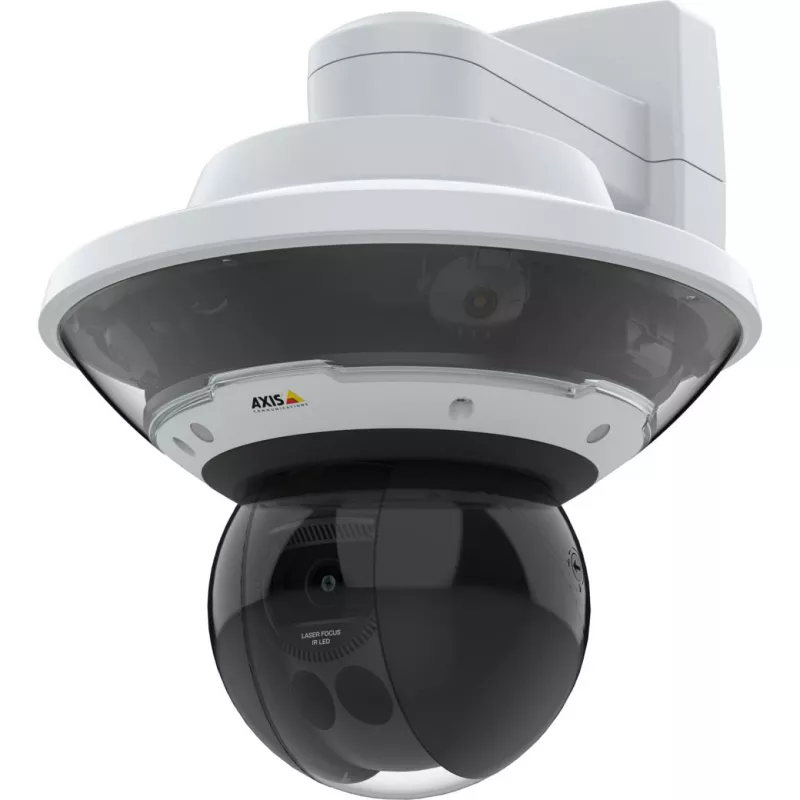

Designed for Axis PTZ cameras, the AXIS TQ5001-E Wall-and-Pole Mount is a universal white mounting solution that allows flexible placement indoors or outdoors. The mount measures approximately 152.6 x 291.8 x 175.4 mm and includes a built-in cable with an IP66-rated RJ45 connector. It supports either RJ45 or IDC (insulation-displacement contact) connection and can be converted between wall and pole mounting; optional accessories are available for corner mounting and pole attachment.

Advantages

The AXIS TQ5001-E provides installers with flexibility by offering both RJ45 and IDC connector options, and its built-in IP66-rated RJ45 connector helps protect against water and dust ingress. Constructed from impact-resistant, outdoor-ready material, the mount is suitable for varied environments. Its reversible bracket allows conversion from wall mount to pole mount, reducing the need for multiple products on site.

Suitable for

• Mounting Axis PTZ cameras on walls
• Mounting Axis PTZ cameras on poles (requires AXIS Steel Straps TX30)
• Corner mounting with optional corner accessory
• Indoor and outdoor CCTV installations

Key specifications

• Brand: AXIS
• Model: TQ5001-E
• Color: White
• Dimensions (W x D x H): 152.6 x 291.8 x 175.4 mm
• Connectors: Built-in cable with IP66-rated RJ45; also supports IDC connector
• Material: Impact-resistant, outdoor-ready
• MPN: 02411-001
• EAN: 7331021076914

How to use

Attach the mount to the desired surface following the camera and mount installation manual. Choose between connecting the camera using the built-in IP66-rated RJ45 connector or an IDC connection as required. For pole installation, flip the mounting bracket to the pole orientation and secure the mount using AXIS Steel Straps TX30. If corner mounting is required, install the appropriate optional corner accessory before attaching the camera.

Recommendations

For outdoor installations, ensure all cable terminations and the RJ45 connector are properly sealed and that the mount is secured to a stable surface. Use AXIS Steel Straps TX30 for pole mounting and the official corner accessory when installing in a corner to maintain warranty and reliable operation.
