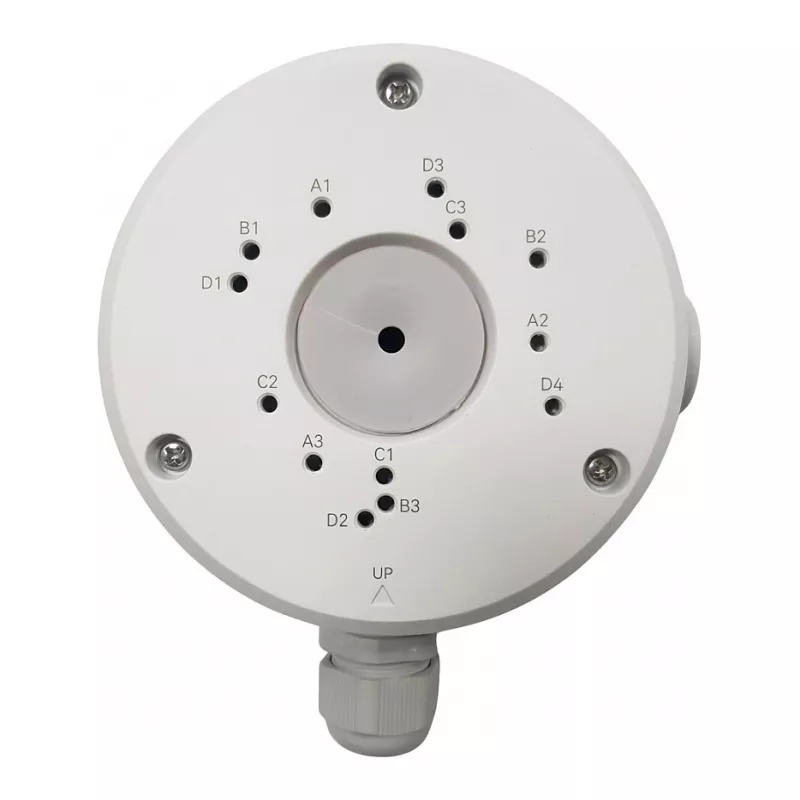

Caixa de Ligação Reolink RLA-JBS1 — liga de alumínio, à prova de água, para câmaras Bullet e PoE, Ø 11,4 cm, branco

The Reolink RLA-JBS1 is a weatherproof junction box that conceals and protects the cabling behind a wide range of Reolink bullet and PoE security cameras. Made from durable aluminium alloy with a white finish, it hides the Ethernet cable, RJ45 connector and camera tail cable from the elements, dust and potential tampering, giving installations a tidy, professional appearance.

Advantages

The aluminium-alloy body is rigid and corrosion resistant yet light enough to mount on walls, soffits and ceilings. A front plate entry with a waterproof rubber grommet seals the camera's tail cable, while the base offers two side entries — one with a removable cover that can be swapped for a cable gland — for flexible cable routing. Multiple sets of pre-drilled screw holes accommodate different camera footprints, so a single box fits many Reolink models.

Suitable for

• Outdoor PoE and Wi-Fi bullet cameras needing concealed, weather-protected wiring
• Wall, soffit or pole installations where exposed cabling looks untidy or is at risk
• Adding extra cable slack and a sealed junction point at the camera
• Professional CCTV jobs requiring a clean, vandal-resistant finish

Key specifications

• Brand: Reolink
• Model: RLA-JBS1
• Type: Camera junction / cable concealment box
• Material: Aluminium alloy with plastic cover plate
• Colour: White
• Dimensions: 122 x 144 x 50 mm (box diameter 114 mm)
• Cable entries: Front grommet for camera tail cable + two side base entries (one with swappable cable gland)
• Weatherproofing: Waterproof, durable outdoor design
• Mounting: Multiple screw-hole patterns for various camera sizes
• EAN: 6976930225346

Compatible cameras (selection)

• Bullet / PoE: B400, B500, B800, B1200, RLC-510A, RLC-810A, RLC-811A, RLC-81MA, RLC-81PA, RLC-1212A, CX410, CX810
• Wi-Fi: CX410W, RLC-510WA, RLC-810WA, RLC-811WA, B500W, B800W
• Dual-lens: Reolink Duo 2 PoE/WiFi, Reolink Duo 3 PoE/WiFi

How to use

Fix the base of the junction box to the mounting surface using the screw holes that match your camera. Route the camera's tail cable through the front grommet and the network or power cable through one of the base entries, fitting the cable gland where extra sealing is needed. Make the connections inside the box, tuck the spare cable into the housing, then attach the camera to the front plate. Confirm all grommets and covers are seated before final fixing.

Recommendations

Verify your exact camera model against Reolink's compatibility list before purchase, and check that every cable entry is sealed after installation to maintain reliable outdoor weather protection.
