Base de montagem em teto AXIS 01189-001

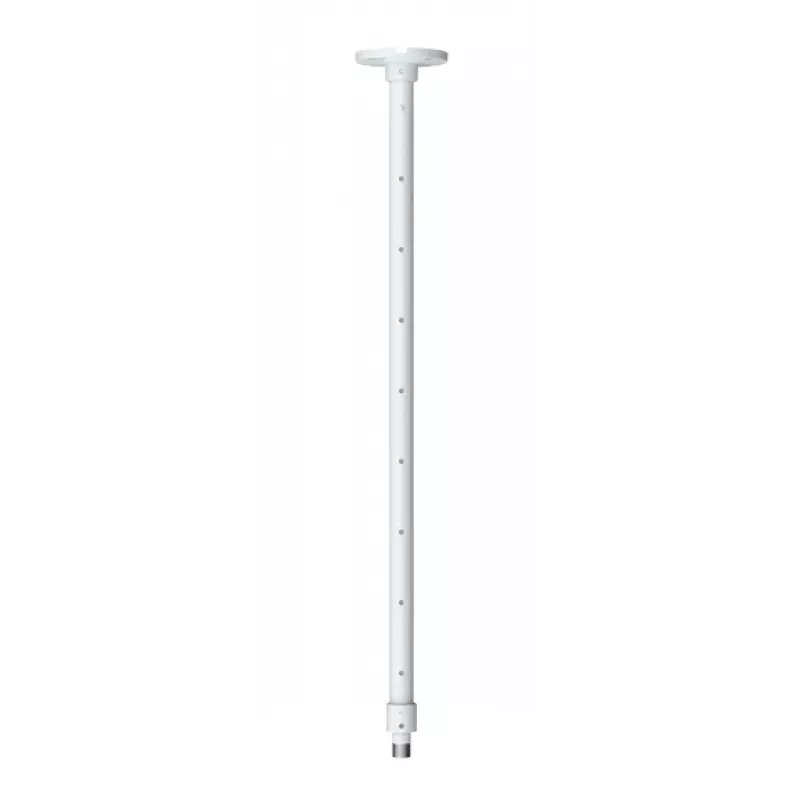

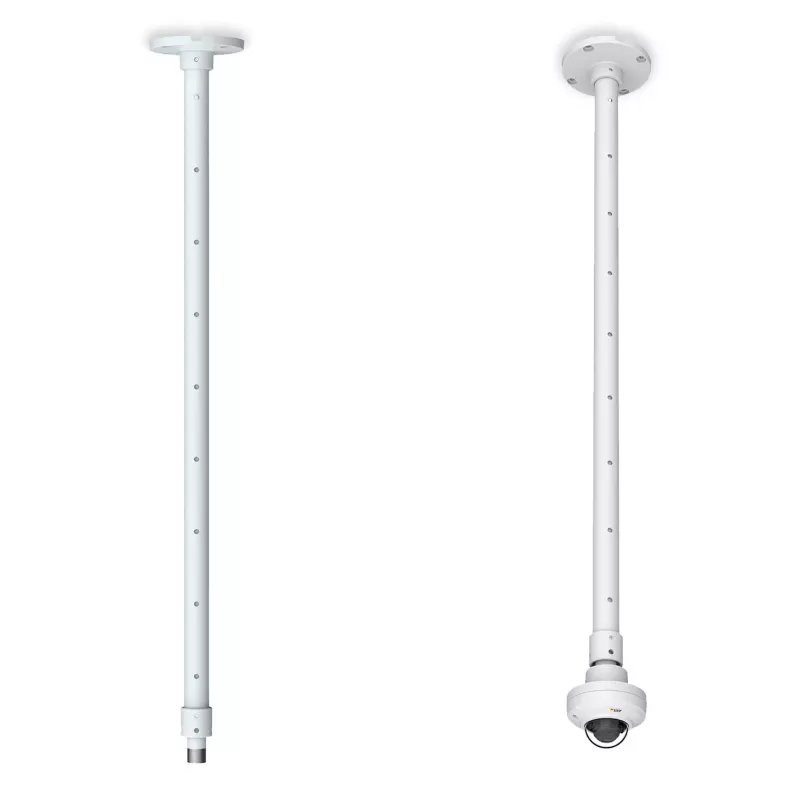

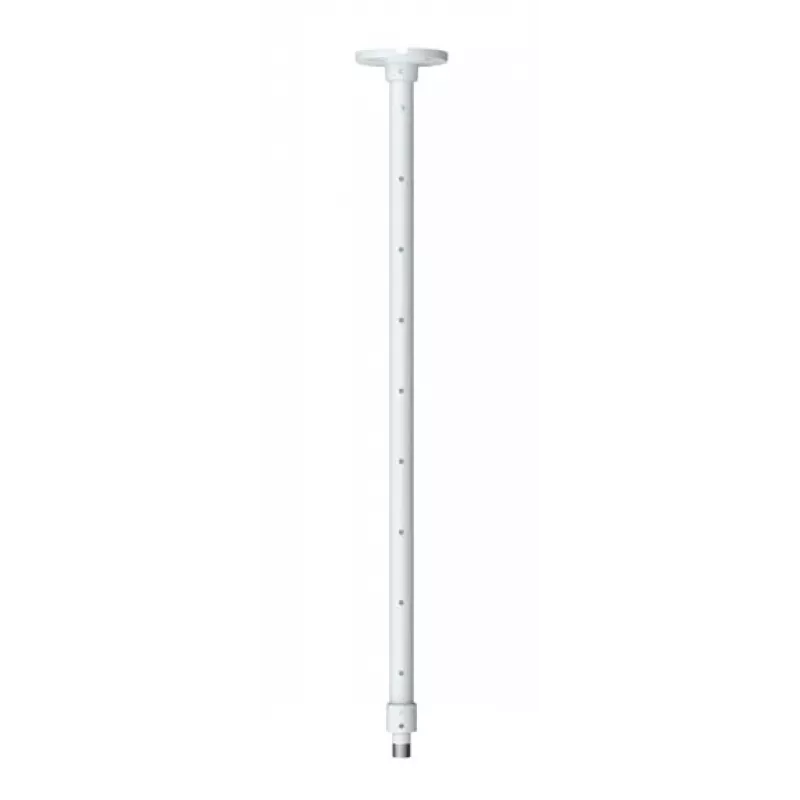

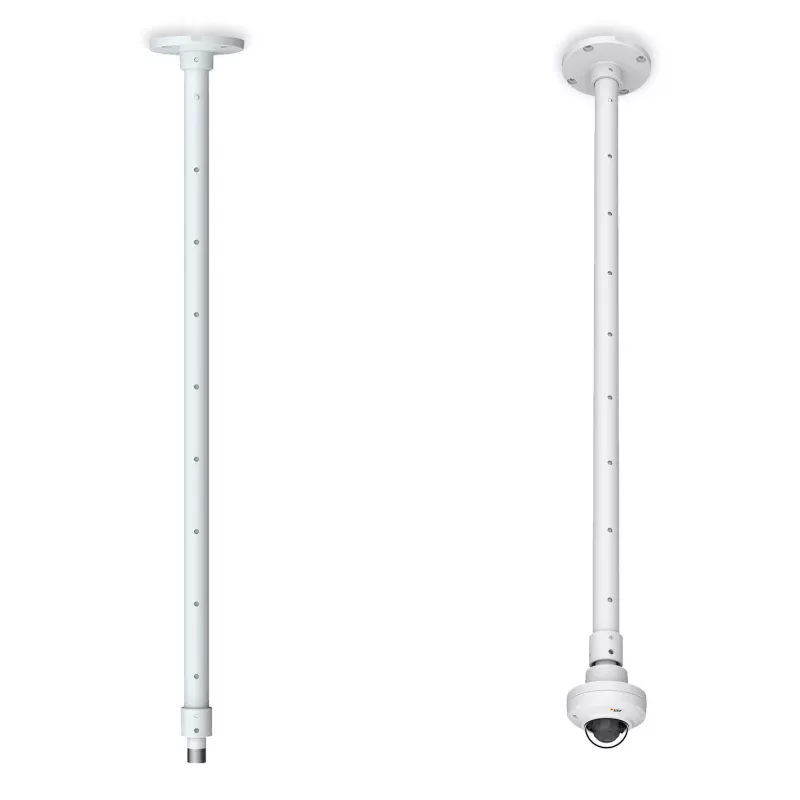

AXIS T91B53 Telescopic Ceiling Mount is a mounting solution designed for retail and commercial spaces where a fixed dome or fixed box camera must be positioned below high ceilings. The telescopic feature provides adjustable extension from 1 m (3.2 ft) to 1.8 m (6 ft) in 10 cm (4 in) increments. The mount base is compatible with AXIS T94F01P Conduit Back Box to allow safe cabling through 1/2” (M20) conduit. The ceiling mount is lightweight and robust and can also be mounted horizontally on walls when used with AXIS Safety Wire.

Advantages

The telescopic adjustment simplifies installation and enables precise camera placement at varying heights. Compatibility with AXIS T94F01P Conduit Back Box ensures secure cable routing through standard 1/2” (M20) conduits. The mount’s lightweight yet durable construction supports reliable long-term use in commercial settings. Horizontal wall installation is possible when combined with AXIS Safety Wire for added security.

Key specifications

• Adjustable extension: 1.0 m to 1.8 m (3.2 ft to 6 ft) in 0.1 m (4 in) steps
• Compatibility: AXIS T94F01P Conduit Back Box
• Conduit size supported: 1/2” (M20)

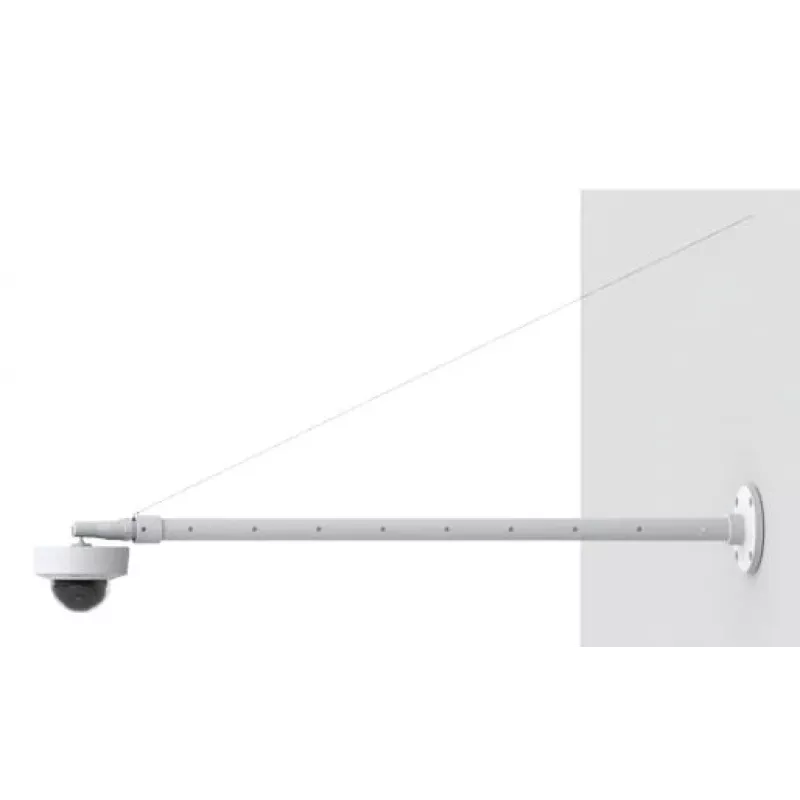

• Mounting options: ceiling and horizontal wall (with safety wire)
• Application: retail and commercial environments

How to use

Install the AXIS T91B53 by securing the base to the ceiling or, when required, to a wall in horizontal orientation. Adjust the telescopic tube to the required length between 1.0 m and 1.8 m using the 10 cm increment settings and lock it in place according to the installer instructions. If using conduit, fit the AXIS T94F01P Conduit Back Box and route cables through a 1/2” (M20) conduit. For horizontal wall installation, attach AXIS Safety Wire to secure the mount.

Recommendations

Use the mount with compatible AXIS cameras and the AXIS T94F01P Conduit Back Box for compliant cable routing. Follow manufacturer installation guidelines and local building codes when adjusting length, securing the mount, and routing cables. Use AXIS Safety Wire for wall-mounted horizontal installations.
