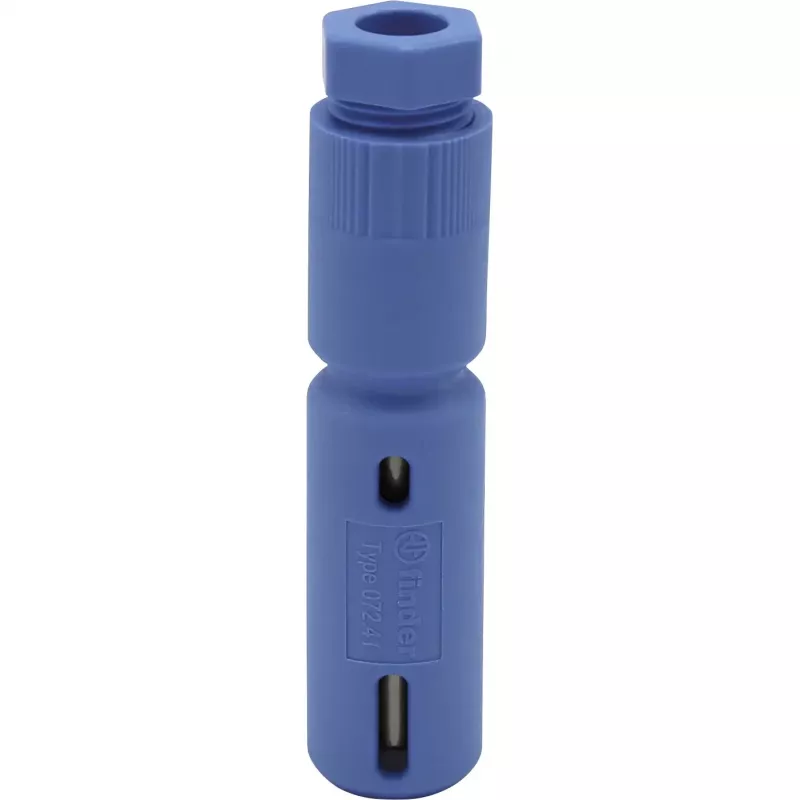

Suporte de elétrodos Finder 072.41 para regulação condutiva de nível de líquidos

The Finder 072.41 is a single-electrode holder engineered for level control of conductive liquids when paired with Finder Series 72 relays. Unlike generic holders, it accepts stainless steel or titanium electrodes up to 1000 mm long and connects via screw terminals for secure wiring.

Highlights

• Single electrode holder for conductive liquid level detection
• Compatible with stainless steel (AISI 303/304) and titanium electrodes
• Polyamide body with M12 x 1.5 mounting thread
• Screw terminals accept cables up to 2.5 mm²
• Operating temperature range: -20 to +60 °C
• Max. operating pressure: 10 bar

In daily use

Mount the 072.41 in a tank or vessel using its M12 thread. Insert a suitable electrode rod (not included) and secure it with the M4 screw terminal. Connect the holder to a Finder 72 series relay with up to 1000 m of cable, depending on liquid conductivity. The polyamide body withstands harsh environments, and correct installation provides IP67 protection.

Full specifications

• Product type: Electrode holder
• Number of electrodes: 1
• Holder body material: Polyamide (PA)
• Connection type: Screw terminals
• Max. cable cross-section: 2.5 mm²
• Mounting thread: M12 x 1.5
• Operating temperature range: -20 to +60 °C
• Max. operating pressure: 10 bar
• Dielectric strength: 2.5 kV AC (between electrode and housing)
• Max. electrode length: 1000 mm
• Max. cable length to relay: 1000 m
• Electrode connection: M4 screw terminal

Final note

For reliable conductive liquid level control, pair this holder with a Finder 72 series relay and a compatible electrode.
