Suporte de mesa InLine para 2x TV/LED/TFT até 81cm 32 polegadas máx. 9kg

InLine 23108F is a desk mount for flat-screen monitors up to 32" that supports VESA 75x75 and 100x100 mm. The mount provides tilt adjustment of ±45°, 360° rotation and a joint for flexible orientation. It can be fixed to the table edge with a screw clamp (for thicknesses up to approx. 85 mm) or mounted through the tabletop with a grommet (for thicknesses up to approx. 40 mm). The mount is height adjustable up to 86 cm when used for two screens and has a maximum load capacity of 9 kg. Accessories for attaching a screen and installation instructions are included.

Advantages

The InLine 23108F offers wide adjustment options including tilt, rotation and a joint for precise positioning, compatible with common VESA standards. Dual mounting methods (screw clamp and grommet) allow flexible installation on different desk types. Height adjustability and included mounting accessories simplify setup and enable ergonomic screen placement while supporting monitors up to 9 kg and 32".

Suitable for

• Home office workstations with a single or dual monitor setup
• Small offices and shared workspaces where desk-edge mounting is required
• Environments needing flexible screen orientation and ergonomic height adjustment

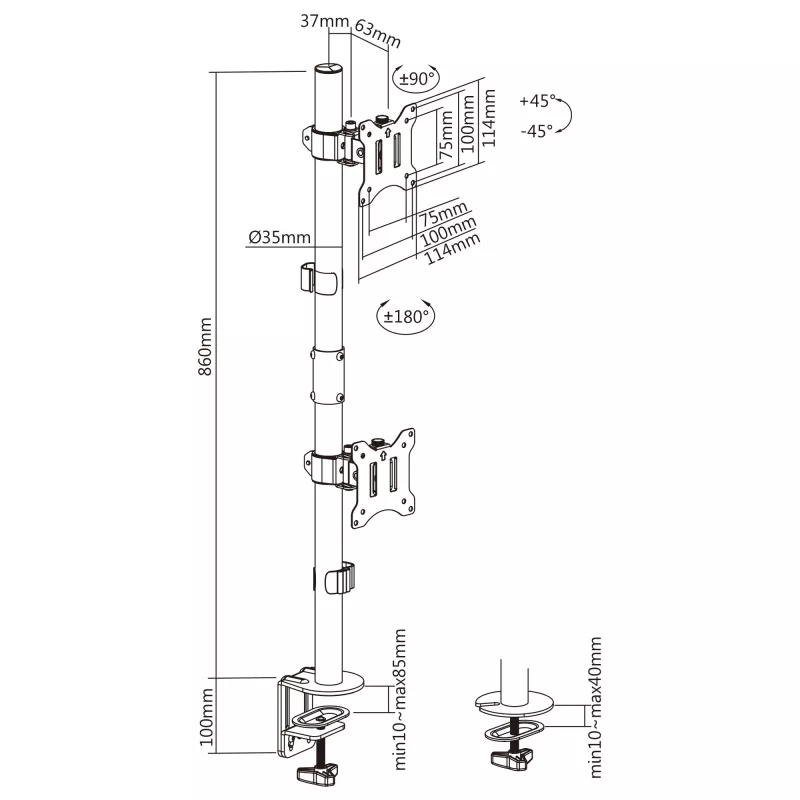

Key specifications

• Model: InLine 23108F
• Screen size compatibility: up to 32"
• VESA compatibility: 75x75, 100x100 mm
• Tilt range: ±45°
• Rotation: 360°
• Height adjustment: up to 86 cm (for two screens)
• Maximum load capacity: 9 kg
• Mounting options: screw clamp (edge, up to ~85 mm) or grommet (through tabletop, up to ~40 mm)

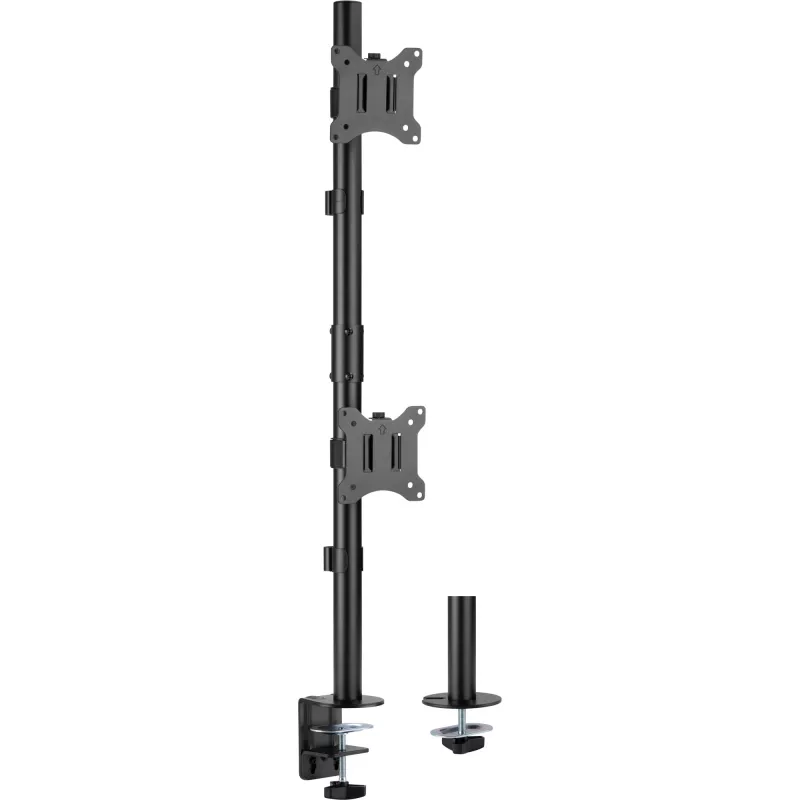

• Delivery includes: table holder with clamp/grommet, screw set (M4, M5), 2x Allen keys, installation instructions

How to use

Select the appropriate mounting method for your desk (screw clamp for edge mounting or grommet for through-table installation) and secure the table holder according to the included installation instructions. Attach the monitor to the mounting plate using the supplied M4 or M5 screws, ensuring VESA hole alignment. Adjust the height, tilt and rotation to the desired position and tighten all joints and fasteners to secure the display.

Recommendations

Check the weight and VESA pattern of your monitor before installation to confirm compatibility with the InLine 23108F and avoid exceeding the 9 kg limit. Follow the supplied instructions for safe tightening and periodic re-checks of fasteners after initial mounting.
