Suporte de monitor Ergotron LX Series 45-695-293 com base 86,4 cm 34" secretária cinzento-escuro

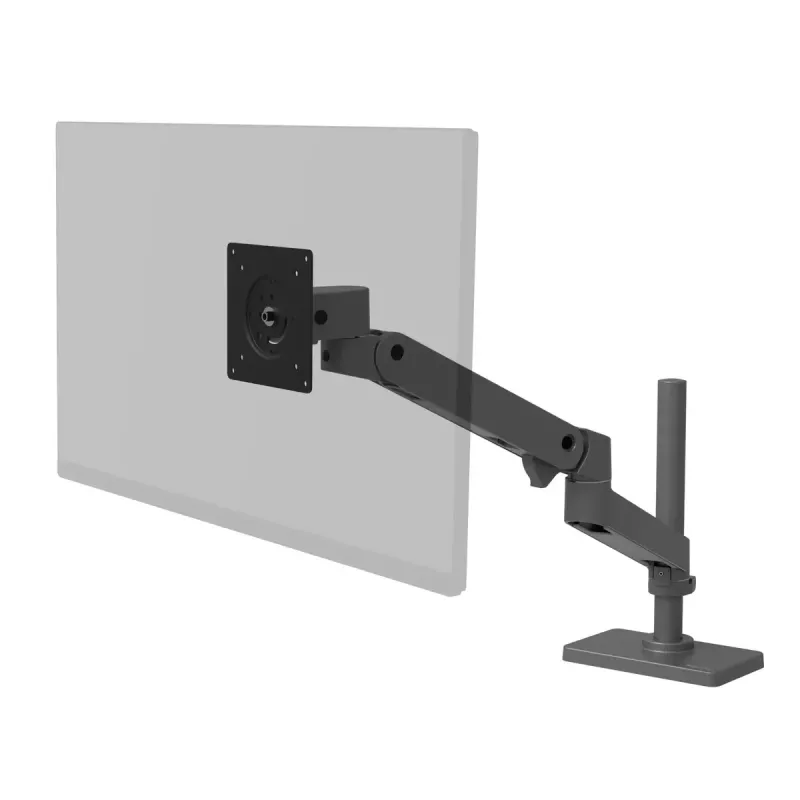

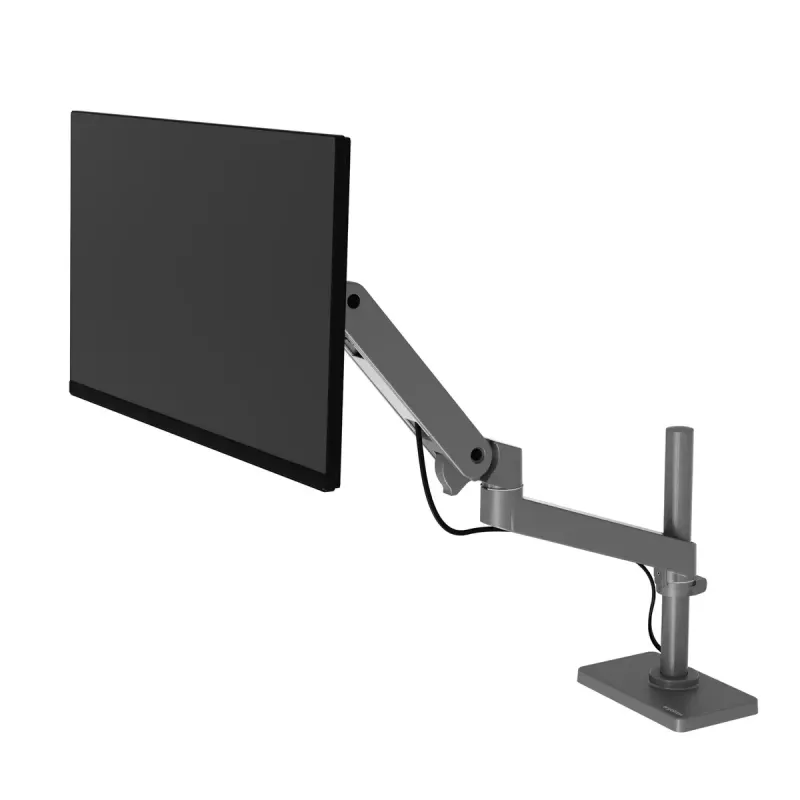

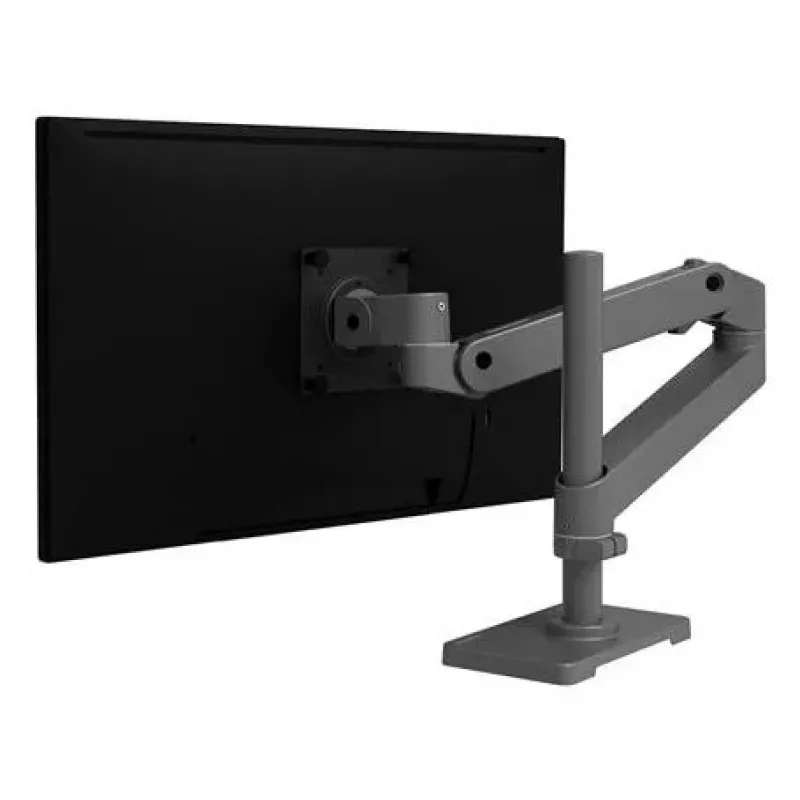

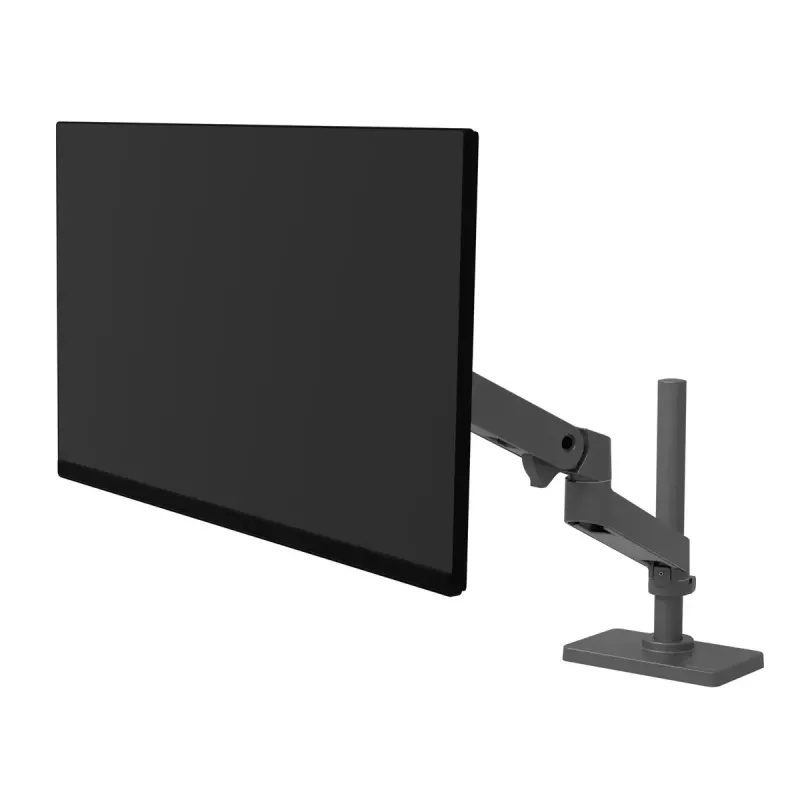

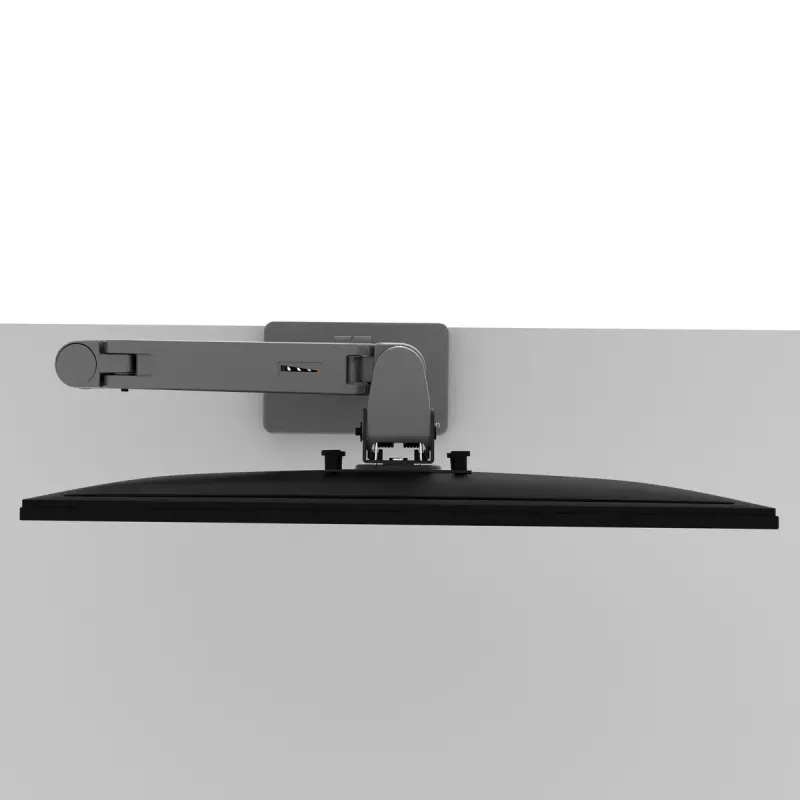

The Ergotron LX Series 45-695-293 monitor mount is a desk-mounted arm designed for screens up to 34" (86.4 cm) and 10 kg. It offers smooth height adjustment and a wide tilt range from -70° to 15°, and is compatible with VESA 75x75 mm and 100x100 mm. Finished in dark grey, the LX Pro design improves on the classic LX arm with updated mechanics that simplify installation and enhance ergonomics for upgraded workstations.

Advantages

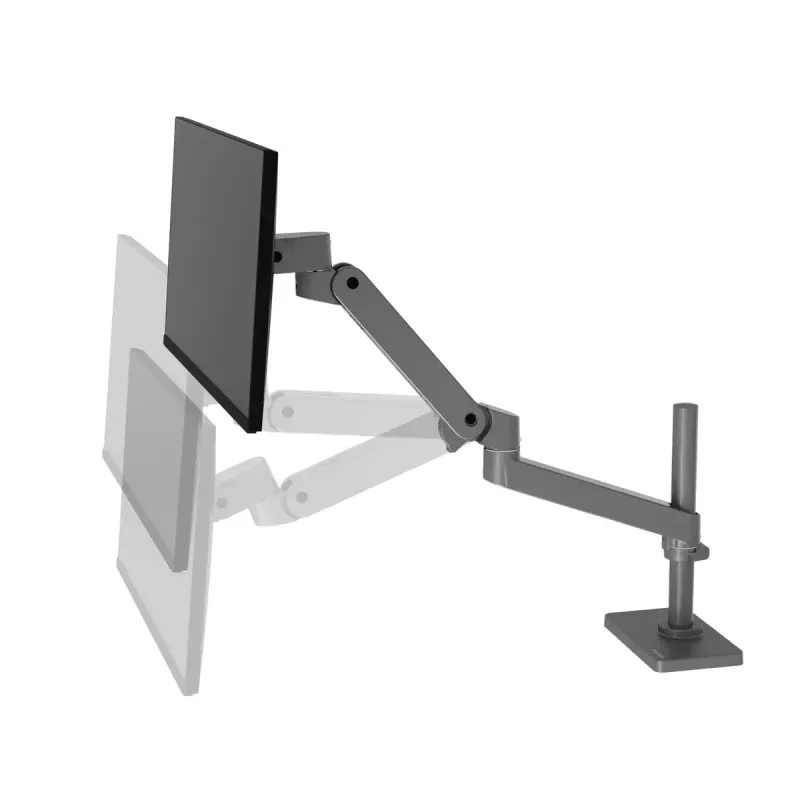

The LX Series mount provides robust support for a single large monitor while allowing precise positioning through height adjustment, tilt and swivel. Its compatibility with common VESA patterns makes it suitable for many screens, and the dark grey finish integrates into modern office and home setups. Designed to streamline installation, the LX Pro incorporates improvements that reduce setup time and increase stability.

Suitable for

• Home offices and corporate desks
• Workstations requiring a single 34" monitor
• Environments needing ergonomic screen positioning
• Setups compatible with VESA 75x75 mm or 100x100 mm

Key specifications

• Maximum screen size: 34" (86.4 cm)
• Maximum weight capacity: 10 kg
• Tilt range: -70° to 15°
• VESA compatibility: 75x75 mm, 100x100 mm
• Mount type: Desk monitor arm
• Color: Dark grey
• Manufacturer: ERGOTRON, MPN 45-695-293, EAN 0698833092141

How to use

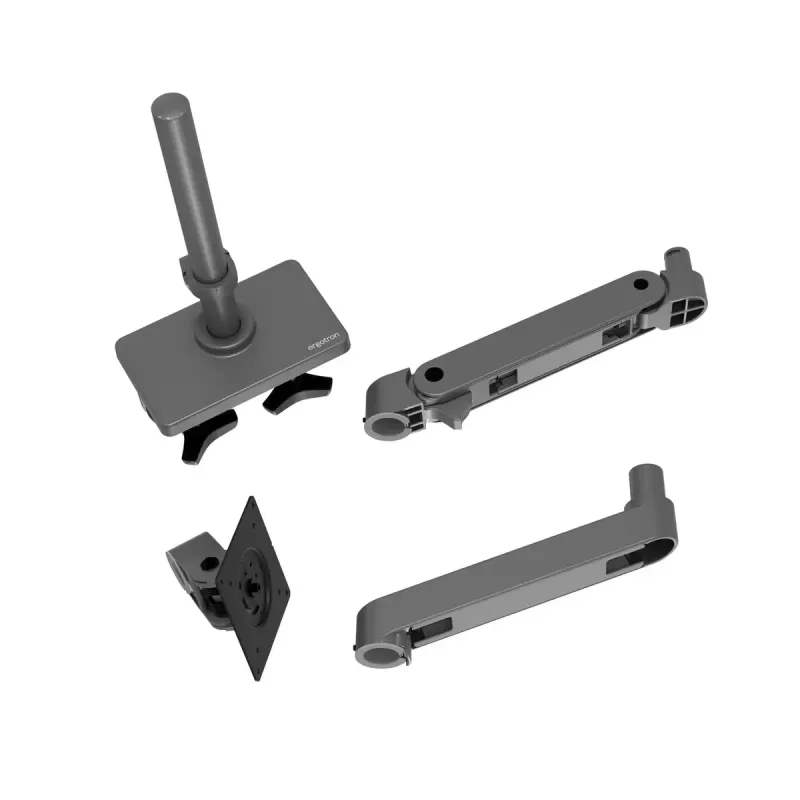

Attach the mount to the desk clamp or grommet base according to the included instructions, then secure the monitor to the VESA plate using the appropriate screws for 75x75 mm or 100x100 mm patterns. Adjust the arm height, tilt angle and swivel to position the screen at a comfortable viewing height and angle. Ensure all fasteners are tightened after final positioning and verify the monitor is stable before use.

Recommendations

For optimal ergonomics, position the top of the screen at or slightly below eye level and set the monitor at an arm's length distance. Do not exceed the 10 kg weight limit and use the specified VESA hole pattern to avoid damage or instability.
