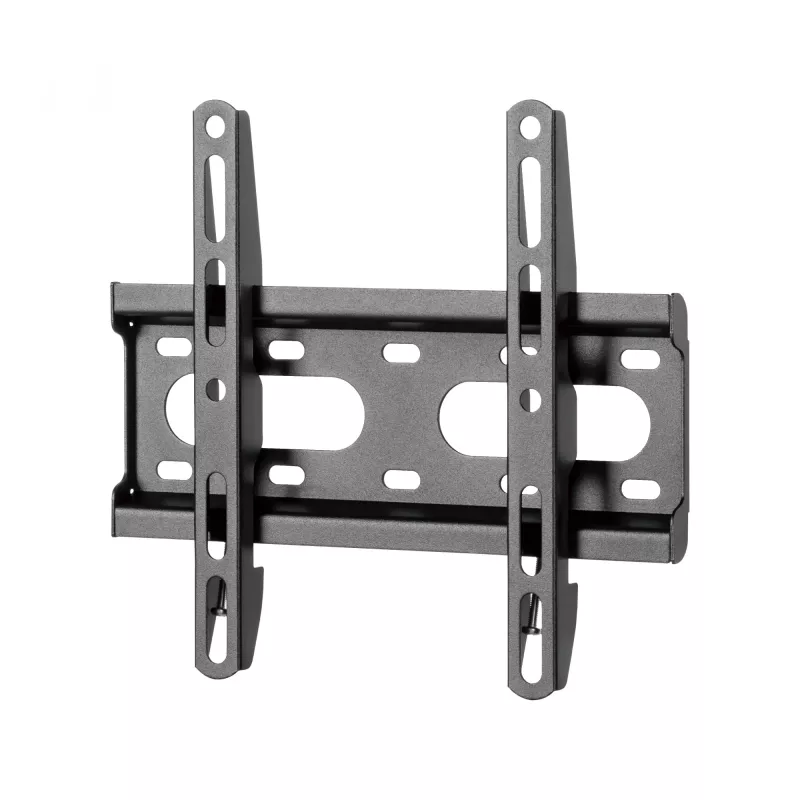

Suporte de montagem SBOX PLB-2522F-2 para cargas 23–43/45 kg, placa 200×200 mm

SBOX PLB-2522F-2 is a mounting bracket featuring a 200×200 mm square plate designed to support loads in the 23–43/45 kg range. The bracket provides a compact, standardized attachment surface for compatible equipment and is intended for wall or other surface mounting where a small footprint and secure fixing are required. It is suitable for mounting small displays, equipment boxes, junction enclosures or other devices that match the plate dimensions and load capacity.

Advantages

The bracket offers a standardized 200×200 mm plate for consistent alignment with industry mounting hole patterns and a rated load capacity that covers a typical range of small devices weighing approximately 23–43/45 kg. Its compact design minimizes protrusion from the mounting surface while providing a stable attachment point. The product is designed for straightforward integration into existing mounting solutions and for reliable, repeatable placement of equipment that fits the plate dimensions and specified load limits.

Suitable for

• Mounting small displays and monitors that fit a 200×200 mm plate and fall within the stated weight range
• Attaching equipment boxes, junction enclosures or control units to walls or flat surfaces
• Applications requiring a compact, standardized plate for consistent equipment placement

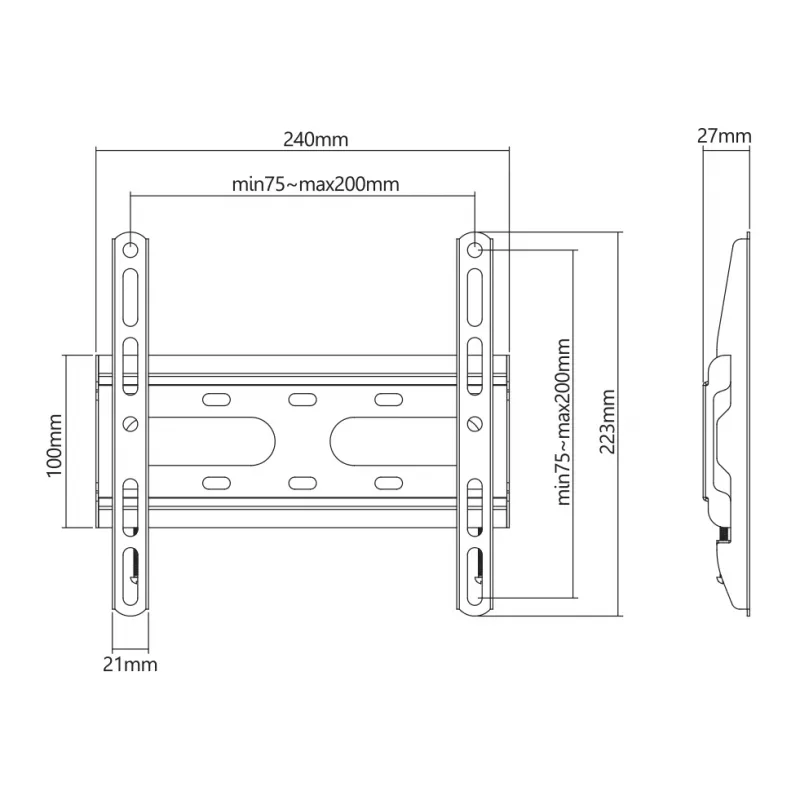

Key specifications

• Plate dimensions: 200 × 200 mm
• Rated load capacity: 23–43/45 kg
• Mounting type: wall or surface installation
• Compatible with devices matching 200×200 mm plate dimensions

How to use

Select an appropriate mounting location with a load-bearing surface and verify that the device to be mounted matches the 200×200 mm plate and falls within the bracket's rated load range. Position the plate on the mounting surface, mark fastening points, and drill or prepare holes as required for the chosen fixings. Secure the bracket with suitable anchors or bolts for the substrate, then attach the device to the plate following the device manufacturer's fastening recommendations. After installation, check that all fasteners are tightened and the mounted device is stable and level.

Recommendations

Use fixings and anchors appropriate for the wall or surface material and the total applied load; consult a professional installer if uncertain. Do not exceed the specified load range and ensure the mounted device’s center of gravity is positioned to avoid undue torque on the plate.
