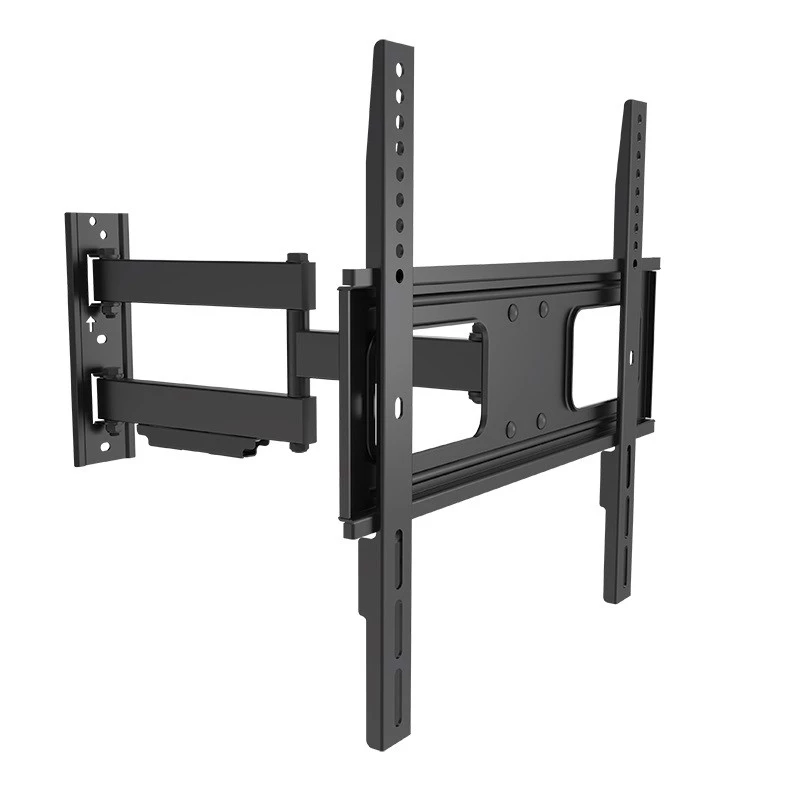

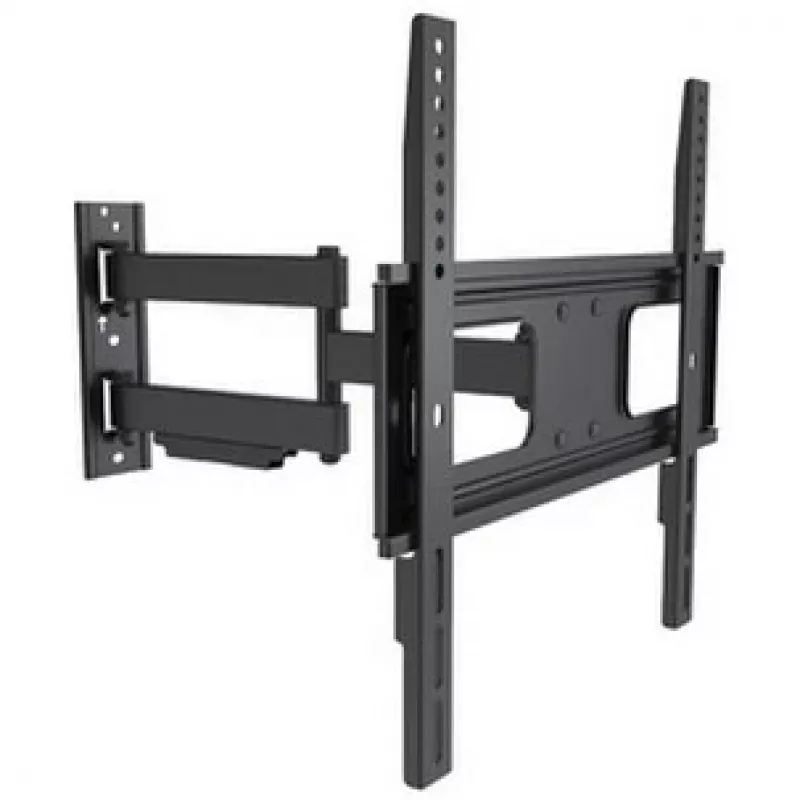

Suporte de TV LogiLink BP0014

The LogiLink BP0014 TV mount supports flat screens from 32" to 55" and holds up to 50 kg. It offers a sleek black finish and adjustable positioning to fit a range of VESA patterns (200 x 200 up to 400 x 400) while keeping the display at a variable distance from the wall between 6 cm and 47.3 cm.

Advantages

The fully movable screen mounts provide a wide range of motion including tilt, swivel and slight height adjustment, enabling precise alignment of the display. The mount’s tilt range (-20° to 10°), swivel range (-90° to 90°) and small height adjustment (-3 mm to 3 mm) allow flexible positioning for different viewing situations. Compatibility with common VESA sizes and a 50 kg load capacity ensure stable support for most 32"–55" TVs.

Suitable for

• Home living rooms and bedrooms
• Office meeting rooms and reception areas
• Retail displays and public information screens
• Rooms where adjustable viewing angle is required

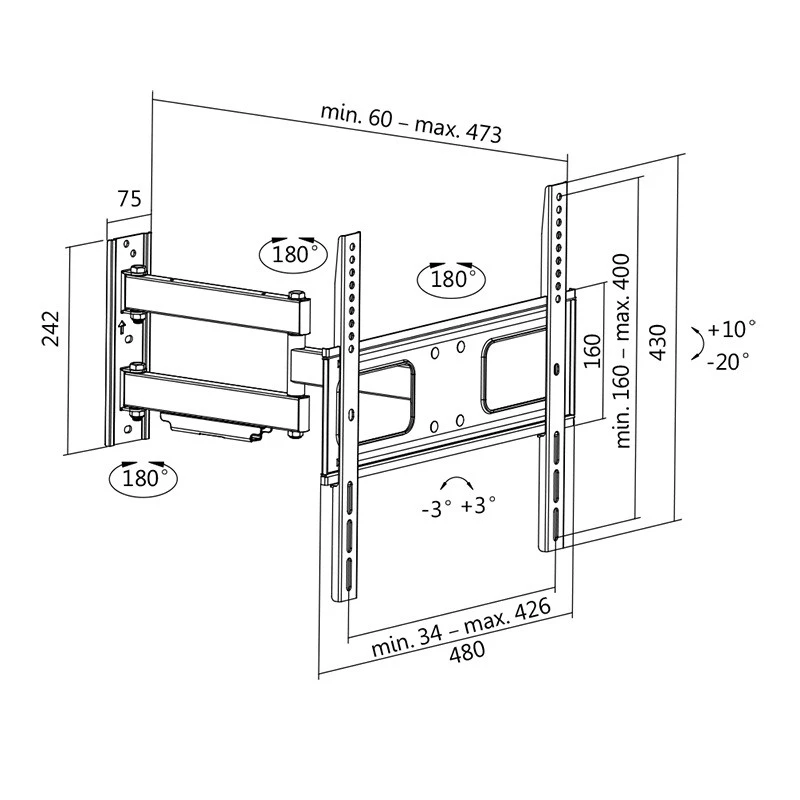

Key specifications

• Supported screen size: 32"–55"
• Maximum weight capacity: 50 kg
• VESA compatibility: 200 x 200 up to 400 x 400 mm
• Tilt range: -20° to 10°
• Swivel range: -90° to 90°
• Height adjustment: -3 mm to 3 mm
• Distance to wall: 6 cm – 47.3 cm
• Colour: Black

How to use

Mount the LogiLink BP0014 to a suitable load-bearing wall following the included installation guide and using appropriate fixings for your wall type. Attach the TV to the bracket using the matching VESA holes (200 x 200 to 400 x 400) and secure all fasteners. Adjust tilt, swivel and height to obtain the desired viewing angle, and verify that the TV is level and firmly supported before leaving it unattended.

Recommendations

Ensure the wall and fixings can support the combined weight of the mount and TV (up to 50 kg). Use the correct screws for your VESA pattern and wall material, and periodically check all fasteners for tightness.
