Suporte de TV Vision VFM-W6X4 190,5 cm (75 polegadas) preto

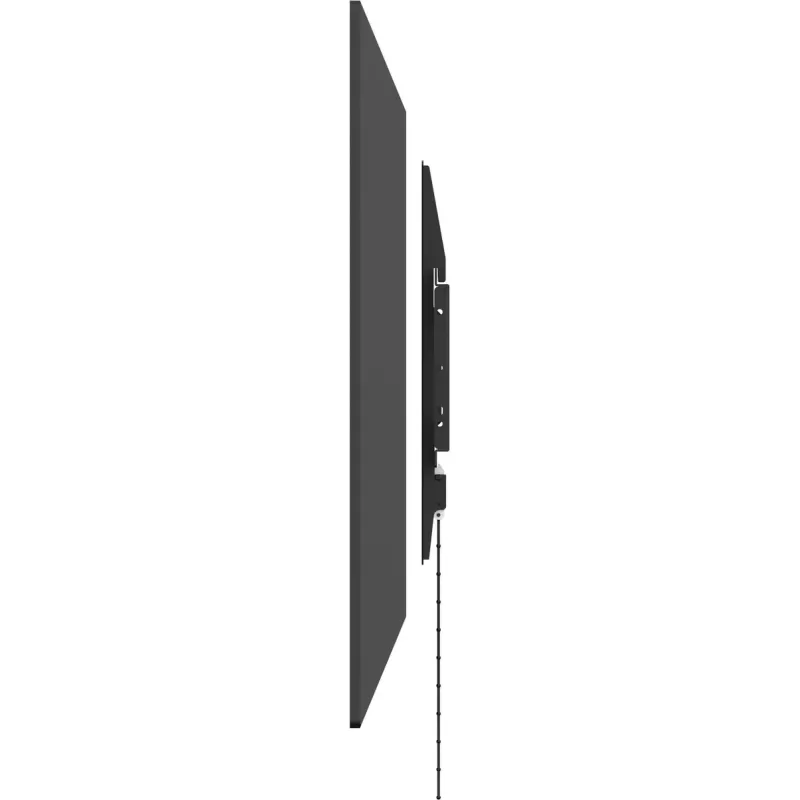

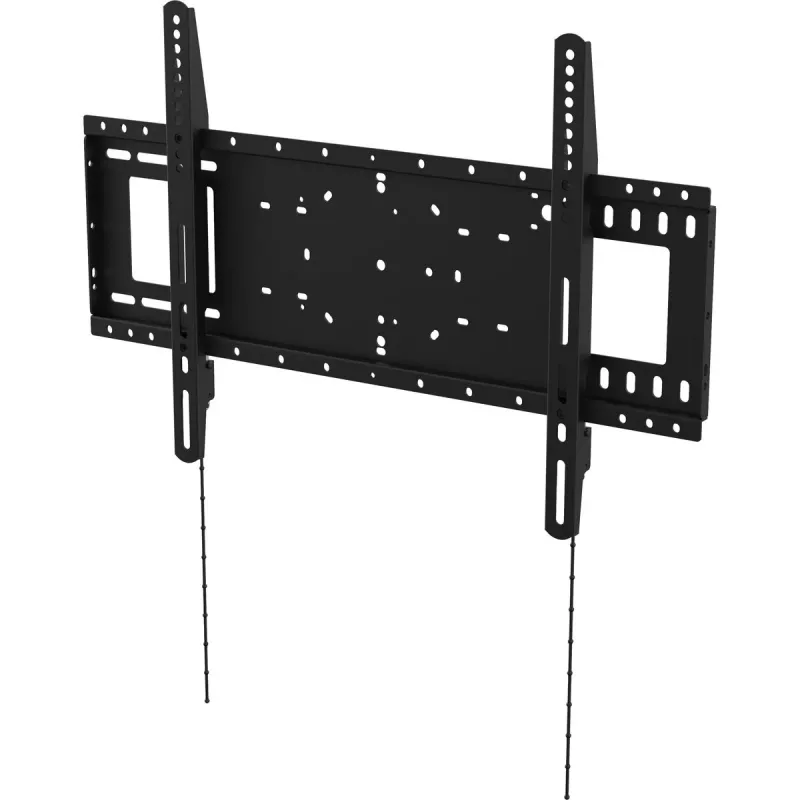

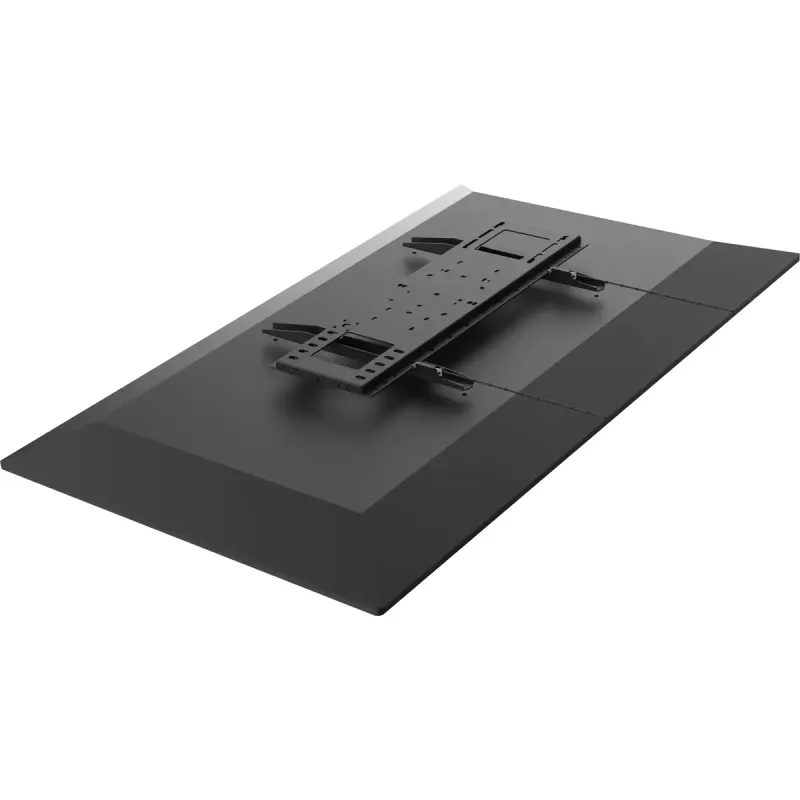

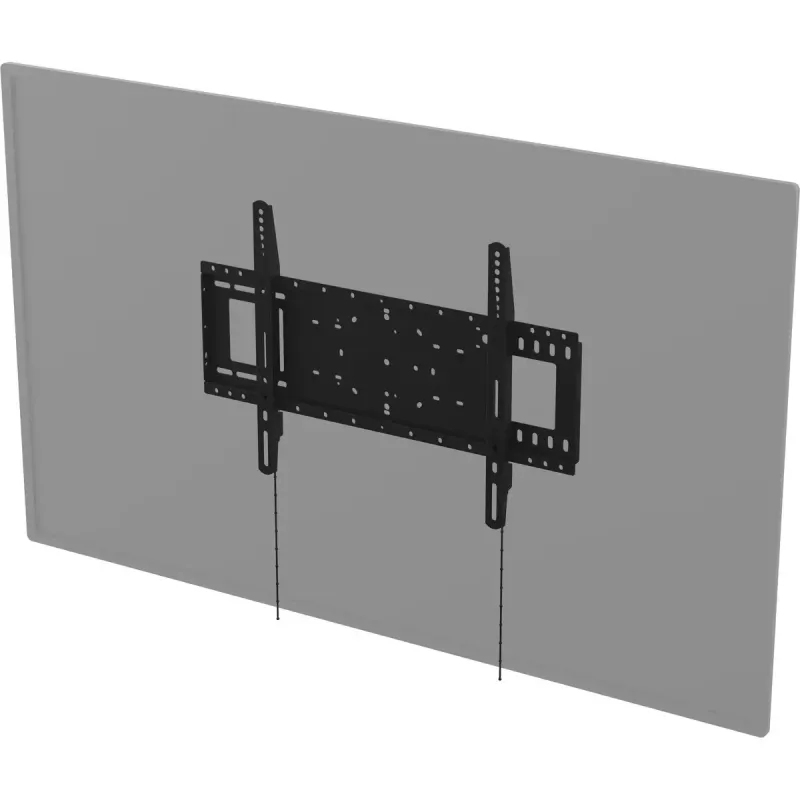

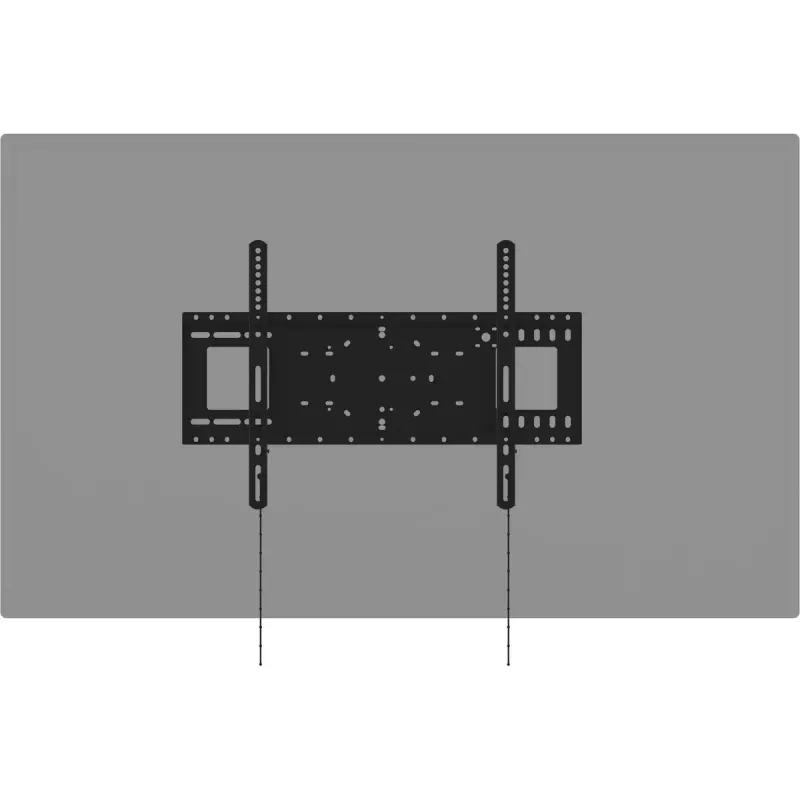

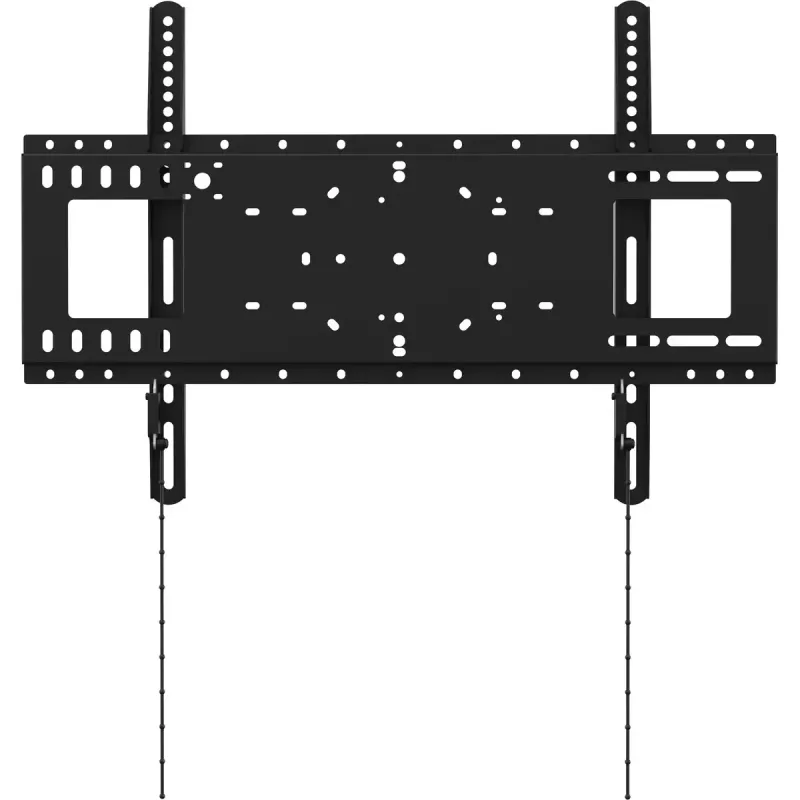

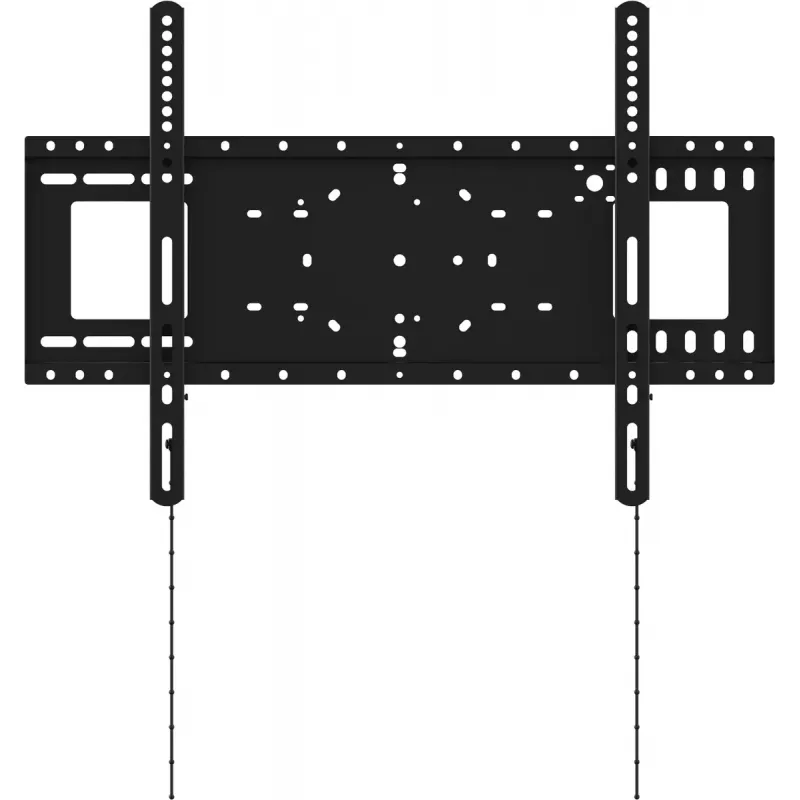

The Vision VFM-W6X4 flat-panel wall mount is a heavy-duty mounting solution designed for professional AV installers. It fits most flat-panel LCD and LED displays from 37" to 75" with rear VESA mounting holes up to 600 x 400 mm and supports a maximum safe working load of 100 kg while holding the display 30 mm from the wall. The mount includes a comprehensive set of M5, M6 and M8 bolts for attaching the vertical arms to the display and uses thick sheet metal construction for reliable long-term support.

Advantages

The VFM-W6X4 combines high load capacity with a slim profile that maintains the display close to the wall, reducing snagging and improving stability. Installation is fast and adjustable: slotted holes in the wall bracket allow post-fix levelling and the horizontal section features secure latches to hold the display in place. The product also provides VESA 100 x 100 mm holes to mount a thin media player behind the screen and supports optional accessories such as a rotary bearing for portrait/landscape rotation, a flip-up side shelf, and a dedicated video-conference shelf.

Suitable for

• Mounting single flat-panel LCD or LED displays from 37" to 75"
• Professional AV installations in meeting rooms, classrooms, reception areas
• Installations requiring a low-profile mount (30 mm from wall)
• Setups that need hidden media players or accessory shelves

Key specifications

• Maximum VESA: 600 x 400 mm
• Supported screen size: 37"–75" (94–190.5 cm)
• Maximum weight capacity: 100 kg
• Product weight: 3.4 kg
• Distance from wall: 30 mm
• Colour: Black
• Includes M5, M6, M8 bolts for display attachment

How to use

Fix the wall bracket to a suitable load-bearing surface using appropriate anchors for the wall type, then attach the horizontal rail. Secure the vertical arms to the display using the supplied M5, M6 or M8 bolts that match the display’s rear threads and VESA pattern. Hang the display on the horizontal section until the latches engage; adjust levelling using the slotted holes in the wall bracket. To remove the display, pull the plastic pull-rods downward to release the latches. For dual displays, join two horizontal sections side by side; optional accessories attach to the provided VESA holes.

Recommendations

Use appropriate wall fixings for the mounting surface and verify that the combined weight of the display and any attached accessories does not exceed the 100 kg safe working load. Do not use with curved screens. Follow manufacturer guidance when adding optional rotary or shelving accessories.
