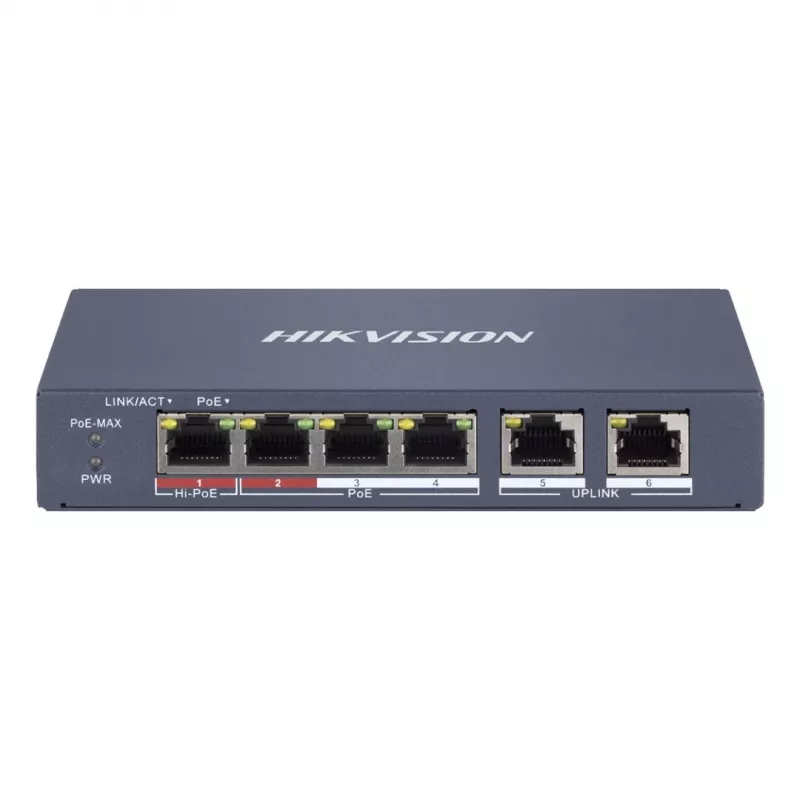

Switch gerido Hikvision DS-3E1106HP-EI 6 portas PoE Fast Ethernet

The Managed Switch Hikvision DS-3E1106HP-EI 6 Ports PoE Fast Ethernet is a compact managed network switch designed for small to medium surveillance and network deployments. It provides six 10/100 Mbps RJ-45 ports with Power over Ethernet (PoE) support and complies with IEEE 802.3af/at/bt standards. With a switching capacity of 1.2 Gbit/s and a slim grey enclosure, the DS-3E1106HP-EI enables centralized control and efficient delivery of power and data to connected devices.

Advantages

The switch combines managed features with PoE power delivery, allowing remote device power and network management. It supports standard IEEE 802.3 PoE protocols for compatibility with a range of cameras and access devices. Management tools provide topology view, real-time health monitoring and alarm notifications to reduce operating and maintenance costs.

Suitable for

• Small to medium surveillance systems with PoE cameras
• Office network segments requiring centralized management
• Deployments needing simple expansion and real-time network monitoring

Key specifications

• Switch type: Managed
• Ports: 6 × Fast Ethernet (10/100) RJ-45
• PoE standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
• Switching capacity: 1.2 Gbit/s
• Colour: Grey
• Weight: 0.245 kg

How to use

Install the DS-3E1106HP-EI on a stable surface or in a small rack, connect your PoE devices and uplink to your network using the RJ-45 ports, then access the management interface via the provided software platform or web GUI. Use the management tools to view network topology, configure port settings and enable PoE power as required. Monitor device status and alarms through the platform to maintain network health.

Recommendations

For reliable operation, ensure connected devices conform to IEEE 802.3af/at/bt power classes and verify total PoE budget before connecting multiple high-power devices. Keep firmware updated and use the Hikvision management platform for topology and alarm monitoring to minimise maintenance effort.
