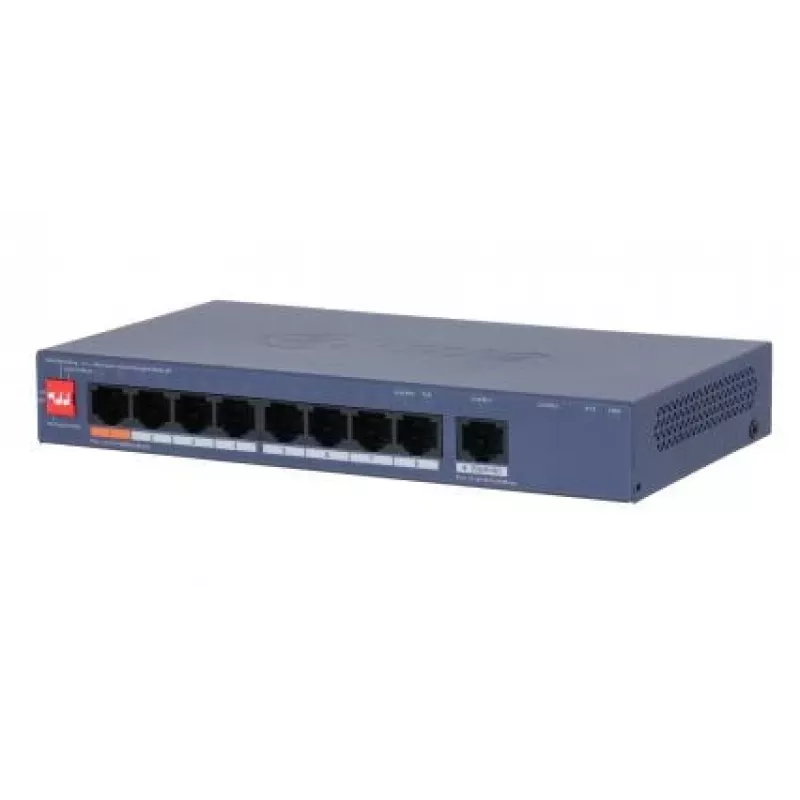

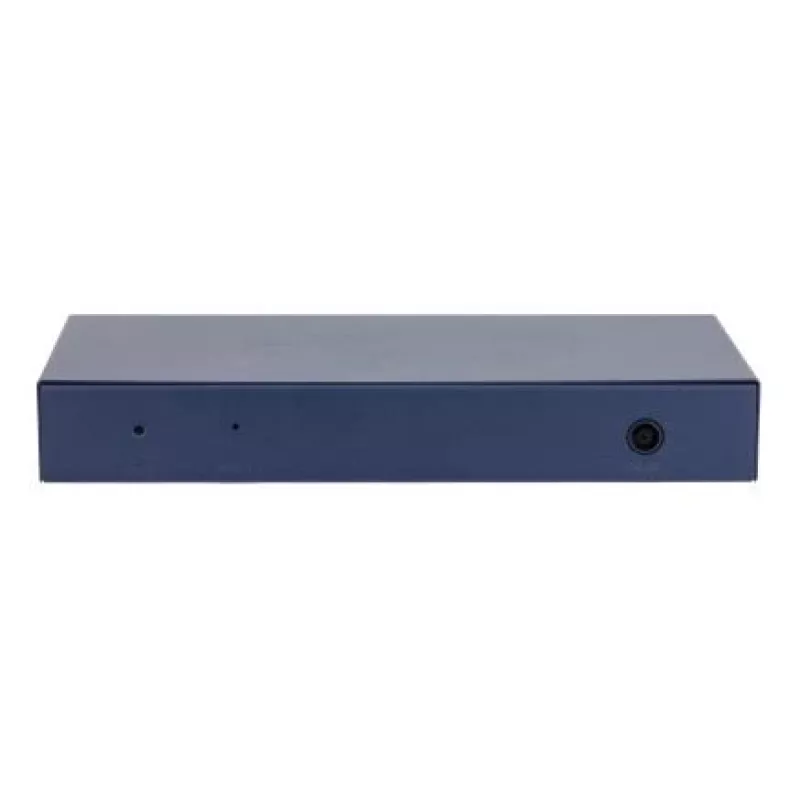

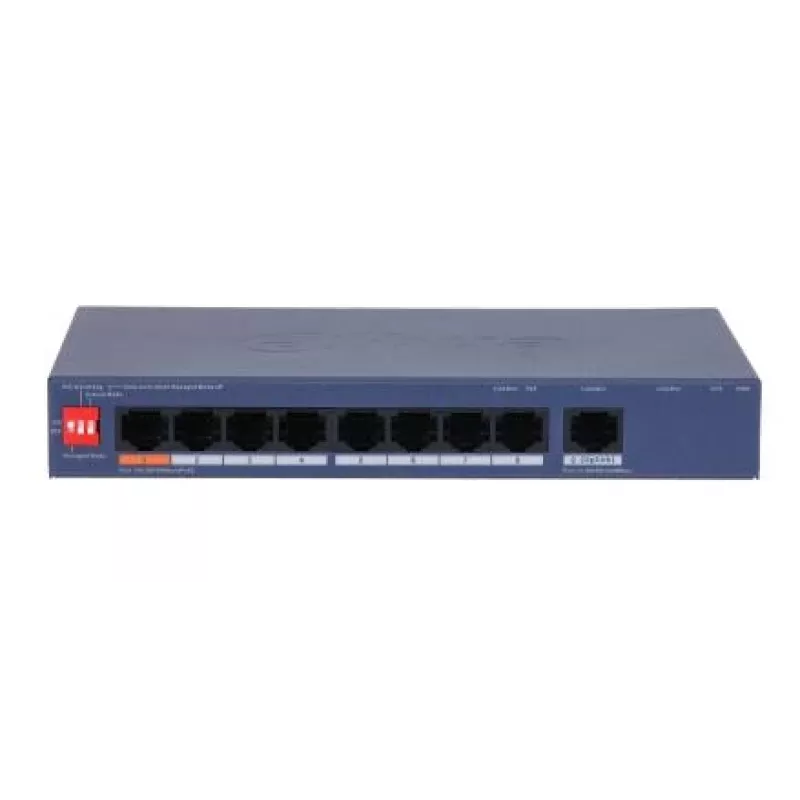

Switch gerido L2 DAHUA CS4009-8ET1GT-60 com 8 portas PoE e 1 uplink Gigabit, orçamento PoE de 60W

The DAHUA CS4009-8ET1GT-60 is a managed Layer 2 network switch designed for small to medium-sized businesses and surveillance applications. It features 8 Fast Ethernet PoE ports and 1 Gigabit Ethernet uplink port, providing reliable connectivity and power to IP cameras, access points, and other PoE devices. With a total PoE power budget of 60W, it supports IEEE 802.3af/at standards, making it ideal for powering devices directly through the Ethernet cable.

Advantages

This switch offers advanced management capabilities through a web-based GUI, CLI, and SNMP, allowing for easy configuration and monitoring. Its compact desktop and wall-mountable design saves space, while the internal power supply ensures a clean installation. The 60W PoE budget enables flexible deployment of PoE devices without the need for additional power outlets.

Suitable for

• Small office networks requiring managed switching
• IP surveillance systems with PoE cameras
• Wireless access point deployments
• Edge networking in enterprise environments

Key specifications

• Managed L2 switch with 9 ports (8x Fast Ethernet PoE + 1x Gigabit Ethernet uplink)
• PoE standard: IEEE 802.3af/at, total PoE budget: 60W
• Switching capacity: 3.6 Gbps, packet forwarding rate: 2.68 Mpps
• MAC address table: 4K entries, jumbo frame support: 9KB
• VLAN support (IEEE 802.1Q), QoS, and system event log
• Management: Web GUI, CLI, SNMP
• Operating temperature: -10°C to +55°C
• Certifications: CE, FCC

Recommendations

For optimal performance, use this switch with DAHUA IP cameras and PoE devices. Ensure proper ventilation and avoid exceeding the 60W PoE budget. For advanced configurations, refer to the user manual for CLI commands.
