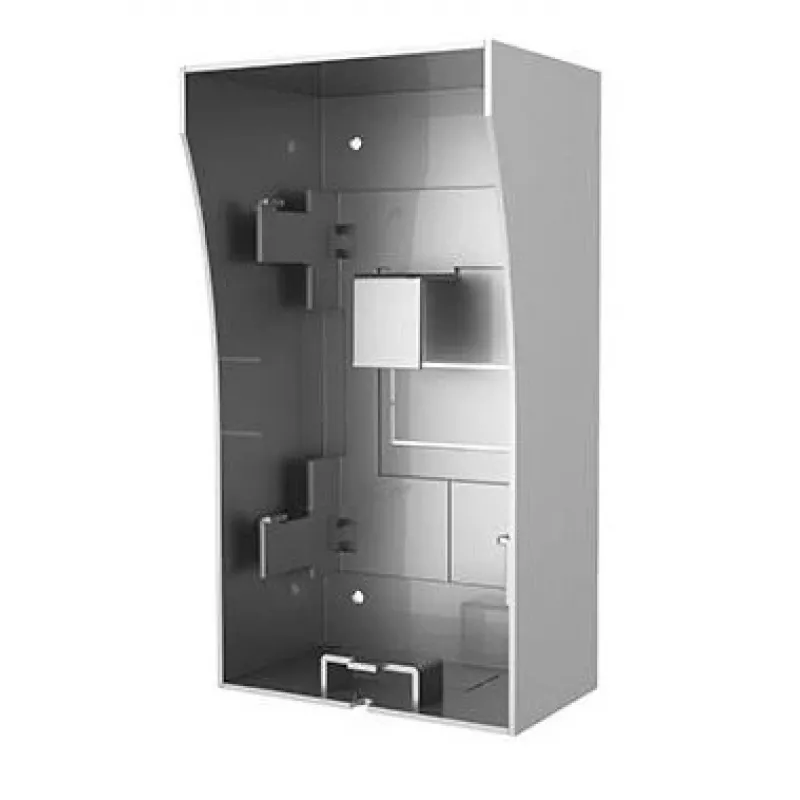

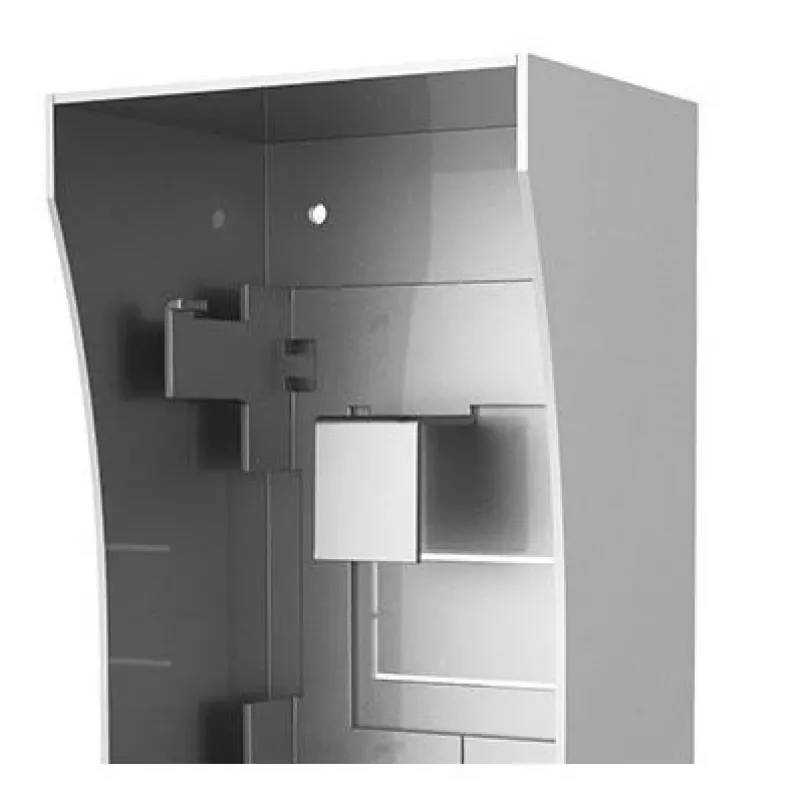

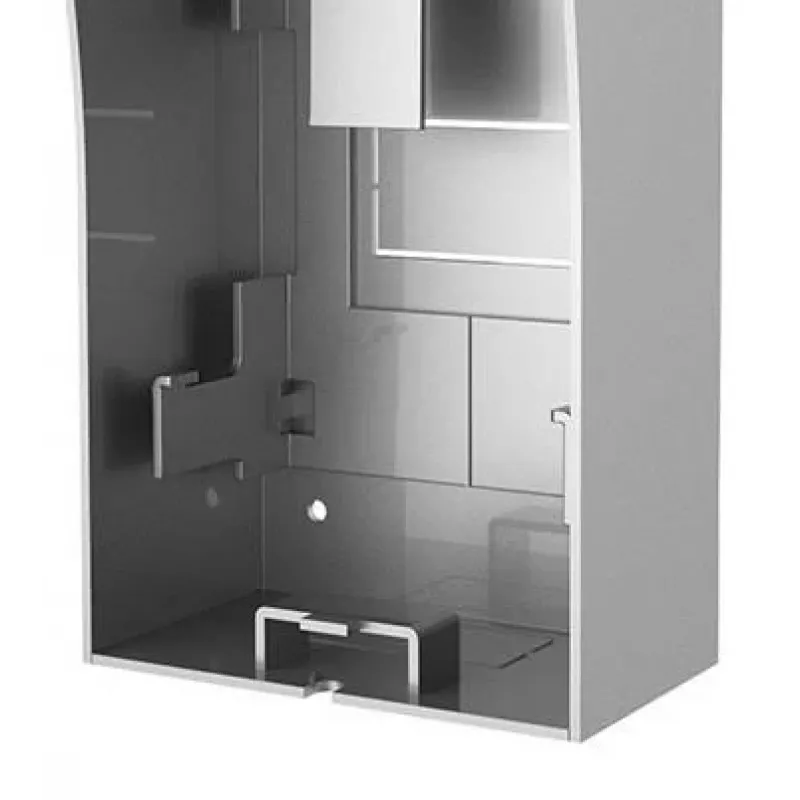

Caixa de montagem embutida Hikvision DS-KAB02 para série DS-KV8X02-IM

The Hikvision DS-KAB02 is a high-quality flush mounting box designed specifically for the DS-KV8X02-IM series video intercom modules. Constructed from durable SECC steel with an electrogalvanized finish, this recessed mounting box ensures a secure and aesthetic installation for both indoor and outdoor environments. It provides a professional flush mount solution that protects the intercom module and maintains a clean look.

Advantages

Made from corrosion-resistant SECC steel, the DS-KAB02 offers long-lasting durability. Its flush mount design integrates seamlessly into walls, providing a sleek appearance while protecting the intercom module from environmental factors. The box is compatible with multiple models in the DS-KV8X02-IM series, offering flexibility for various installation needs.

Suitable for

• Hikvision DS-KV8102-IM video intercom module
• Hikvision DS-KV8202-IM video intercom module
• Hikvision DS-KV8402-IM video intercom module
• Indoor and outdoor recessed wall installations

Key specifications

• Product Type: Flush Mounting Box
• Material: SECC (Steel, Electrogalvanized, Cold-rolled Coil)
• Color: Black
• Installation Type: Recessed / Flush Mount
• Compatibility: Hikvision DS-KV8X02-IM Series Video Intercom Modules
• Outer Dimensions (L x W x H): 210 x 115 x 50 mm
• Inner Dimensions (L x W x H): 200 x 105 x 49 mm
• Wall Cutout Dimensions (L x W x H): 200 x 105 x 49 mm
• Operating Temperature: -40°C to +60°C (-40°F to 140°F)
• Operating Humidity: 10% to 90% (Non-condensing)
• Application Environment: Indoor/Outdoor
• Mounting Method: Wall Recessed
• Corrosion Resistance: Yes

Recommendations

For optimal performance and aesthetics, use the DS-KAB02 flush mounting box with compatible Hikvision DS-KV8X02-IM series intercom modules. Ensure the wall cutout dimensions match the specified 200 x 105 x 49 mm for a proper fit. This mounting box is ideal for both new installations and retrofits where a flush, professional appearance is desired.
