Switch gerido PLANET IGS-4215-4UP4T2S L2/L4 Gigabit Ethernet PoE 8 portas

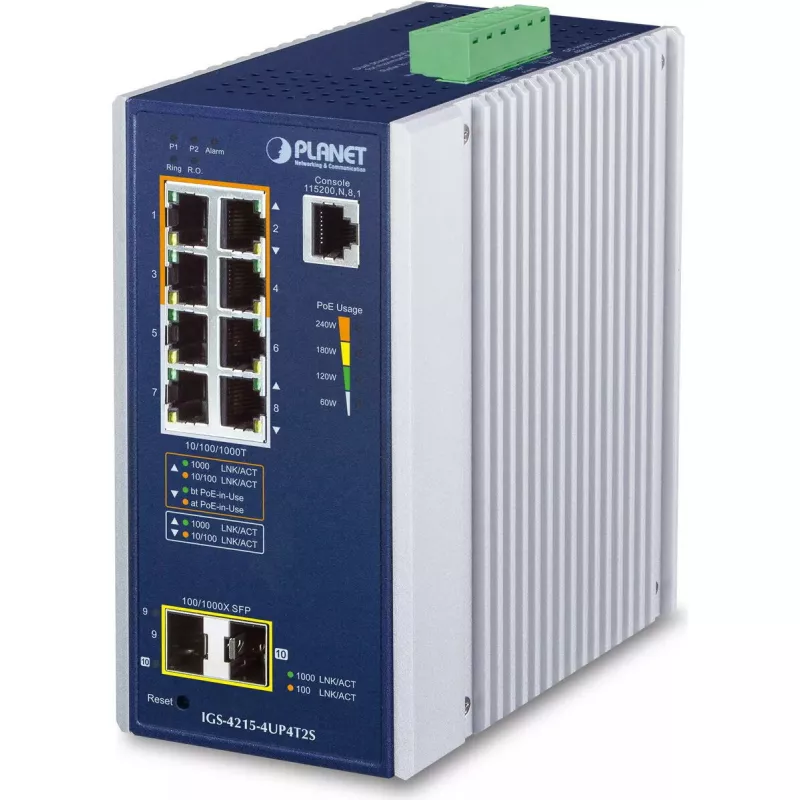

The PLANET IGS-4215-4UP4T2S is a managed L2/L4 gigabit PoE++ switch designed for harsh industrial environments. It provides 8 gigabit copper ports, two 100/1000BASE-X SFP slots for fiber uplink, IPv4/IPv6 dual stack management and a total PoE power budget of up to 240 watts in an IP30 metal housing. The device supports IEEE 802.3bt PoE++ to deliver up to 95 W per port over four-pair Cat5e/6 cabling, operates from -40 to 75°C and offers a switching capacity and management features suitable for surveillance, wireless and voice deployments.

Advantages

The switch combines high-power 802.3bt PoE++ output with industrial-grade resilience, including IP30 aluminum housing, wide operating temperature range and ESD/surge protection. It includes advanced PoE management (PD alive check, scheduled power recycling, PoE scheduling and usage monitoring), extend mode for up to 250 m PoE/data transmission, redundant ring support (G.8032 ERPS), and secure remote management (SSHv2, TLS 1.2, SNMP v3). Layer 2/Layer 4 features, QoS, ACL and SFP-DDM diagnostics further support reliable operation and easy integration into enterprise and industrial networks.

Suitable for

• IP surveillance systems with PoE PTZ and high-power cameras
• Wireless access point backhaul and outdoor wireless deployments
• VoIP/voice and video streaming in industrial or commercial sites
• All-in-one touch PCs, kiosks, POS systems and digital signage
• Long-distance uplink to monitoring centers via SFP fiber

Key specifications

• Model: PLANET IGS-4215-4UP4T2S
• Switch type: Managed L2/L4
• Ports: 4 x 10/100/1000BASE-T with 95 W PoE++ + 4 x Gigabit copper + 2 x 100/1000BASE-X SFP
• PoE standard: IEEE 802.3bt (PoE++) — up to 95 W per port; total PoE budget up to 240 W
• Extend mode: supports 83 W PoE at up to 250 m (10 Mbps duplex)
• Temperature range: -40 to 75 °C
• Housing: IP30 aluminum metal
• Security: SSHv2, TLS 1.2, SNMP v3, ACL, 802.1X, DHCP Snooping, IP Source Guard, DAI
• Switching capacity / MAC entries: (see product data) switching engine with Gigabit capability and MAC table support

How to use

Mount the IGS-4215-4UP4T2S on a DIN rail in a suitable industrial cabinet or enclosure. Connect network devices to the copper Gigabit ports and fiber uplinks to the SFP slots as required. Configure IPv4/IPv6 management, VLANs, QoS and security policies via the web GUI, CLI or SNMP management tools. Set PoE output modes and schedules, enable PD alive check and scheduled power recycling for connected PoE devices to improve uptime and reduce manual intervention.

Recommendations

The switch is intended for industrial and commercial networks where high PoE power and environmental resilience are required. Use appropriate Cat5e/6 cabling for PoE++ devices, configure PoE schedules to save energy during non-business hours, and employ redundant ring or fiber uplinks for critical monitoring applications. Regularly monitor PoE usage and SFP diagnostics through the web interface or UNI-NMS/CloudViewer for preventive maintenance.
