Switch gerido PLANET IGS-4215-8UP2T2S L2/L4 Gigabit Ethernet PoE 10 portas

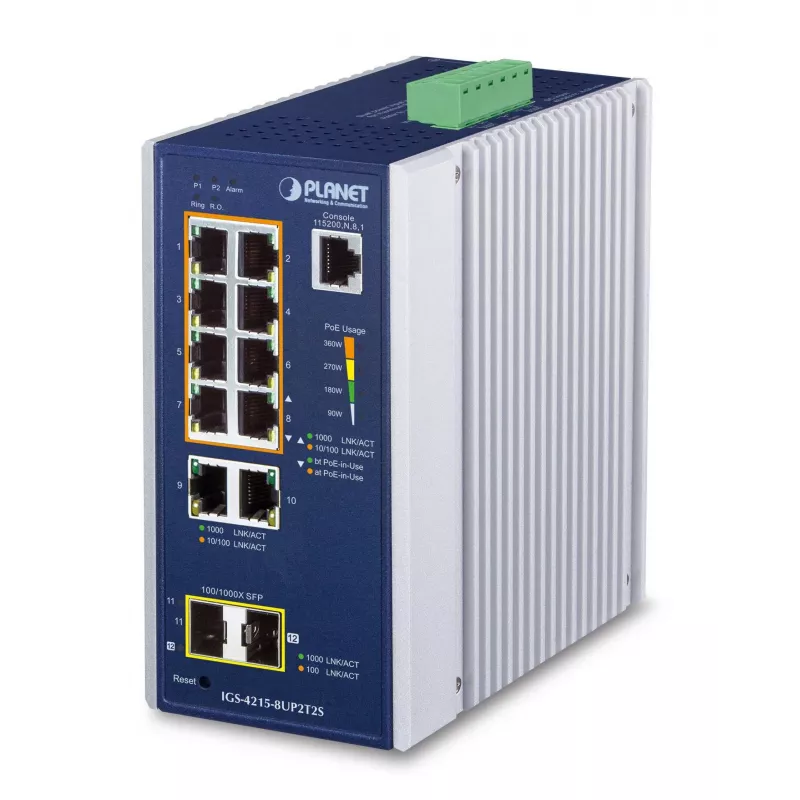

The PLANET IGS-4215-8UP2T2S is an industrial-grade managed L2/L4 Gigabit PoE++ switch designed for hardened environments. It provides 8 Gigabit copper ports with IEEE 802.3bt PoE++ (up to 95 W per port), 2 additional Gigabit copper uplink ports and 2 SFP fiber slots for long-distance uplink. Housed in an IP30 metal case, the switch supports IPv4/IPv6 dual-stack management, a total PoE budget up to 360 W and an operating temperature range of -40 to 75 °C, making it suitable for surveillance, wireless and other mission-critical networks.

Advantages

The IGS-4215-8UP2T2S delivers high-power PoE++ over four-pair UTP to power devices such as PTZ cameras, thin clients, AIO touch PCs and PoE lighting while offering multiple PoE output modes (95 W PoE++, 95 W force, 36 W end-span and 36 W mid-span). It features intelligent PoE management including PD alive check, scheduled power recycling, PoE scheduling and real-time PoE usage monitoring with LED indicators. Additional benefits include rugged IP30 aluminum housing, ESD and surge protection, enhanced cybersecurity (SSHv2, TLS 1.2, SNMPv3), redundant ring fast-recovery support and comprehensive L2/L4 QoS and ACL functions.

Suitable for

• Industrial and outdoor control cabinets requiring hardened network equipment
• IP surveillance systems with high-power PoE cameras (PTZ, AIO cameras)
• Wireless and VoIP deployments with remote APs and PoE devices
• Digital signage, POS kiosks and remote thin client installations
• Long-distance uplink to NVRs, NAS or monitoring centers via SFP fiber

Key specifications

• Model: PLANET IGS-4215-8UP2T2S
• Switch type: Managed L2/L4
• Ports: 8 x 10/100/1000BASE-T with 802.3bt PoE++, 2 x Gigabit RJ45 uplinks, 2 x SFP (100/1000BASE-X)
• PoE: Up to 95 W per port (802.3bt), total PoE budget up to 360 W
• PoE modes: 95 W PoE++, 95 W Force, 36 W End-span, 36 W Mid-span; Extend mode: 10 Mbps up to 250 m with 83 W
• Switching capacity: 24 Gbit/s
• Management: CLI, Web GUI, SNMP, UNI-NMS and CloudViewer support
• Security: SSHv2, TLS 1.2, SNMPv3, ACL (L2–L4), 802.1X, DHCP Snooping, IP Source Guard, DAI
• Environmental: IP30 metal housing, operating temperature -40 to 75 °C
• Protection: Ethernet ESD (±6 kV contact, ±8 kV air), surge immunity ±4 kV
• Weight & colour: ~1.091 kg, aluminium/blue

How to use

Mount the switch on DIN-rail in a suitable industrial cabinet or rack, connect uplink fiber or copper to your backbone, and attach PoE devices to the front RJ45 PoE ports using Cat5e/6 cabling. Use the web-based management interface, CLI or SNMP to configure IPv4/IPv6 settings, VLANs, QoS, PoE schedules and security policies. For long-distance PoE extension, enable Extend mode per port to provide up to 83 W at 10 Mbps for distances up to 250 m. Monitor real-time PoE consumption through the GUI and front-panel PoE Power Usage LEDs.

Recommendations

For reliable operation in industrial environments, install the IGS-4215-8UP2T2S in a ventilated, dust-minimized enclosure, use quality Cat5e/6 cabling for PoE++ devices, and plan PoE budget allocation in advance. Enable PD alive check and scheduled power recycling for critical cameras and APs to improve uptime, and deploy VLANs, ACLs and SSH/TLS management to reduce security risks.
