Switch gerido PLANET IP30 8 portas L2/L4 Gigabit Ethernet alumínio azul

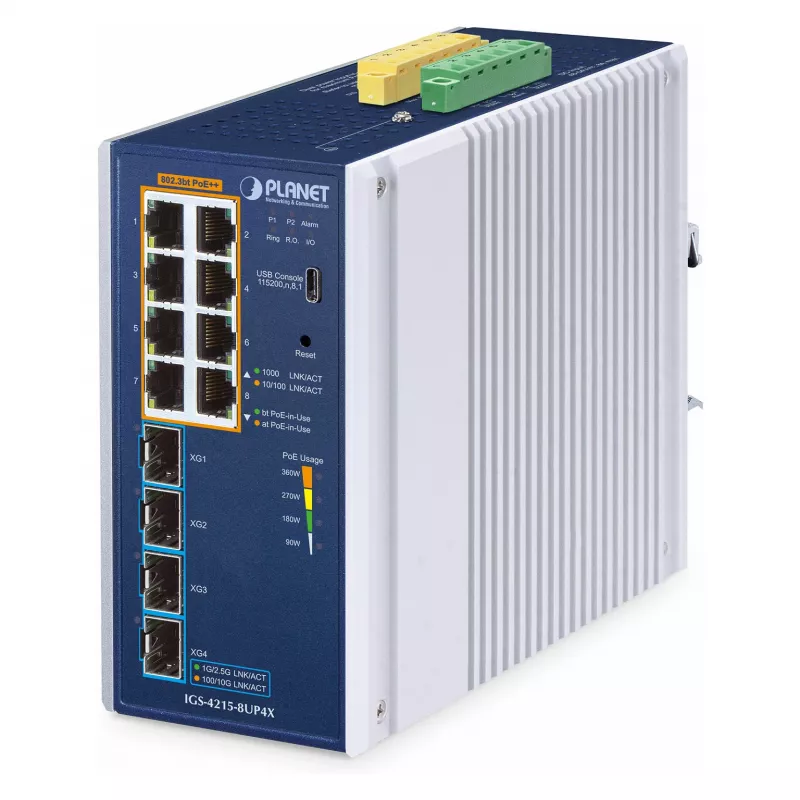

The PLANET IGS-4215-8UP4X is an industrial-grade, DIN-rail L2/L4 managed Gigabit PoE++ switch designed for harsh environments. It provides 8 10/100/1000BASE-T ports with 802.3bt PoE++ (up to 95 W per port) and 4 10GBASE-X SFP+ slots, a total PoE power budget of 360 W (switch-level platform supports up to 1440 W per system specification), IPv4/IPv6 dual-stack management, USB Type-C console access and an IP30 aluminum housing for durable operation in temperature ranges from -40 to 75 °C.

Advantages

The switch combines high-power PoE++ delivery with full gigabit data throughput and four 10G SFP+ uplinks, offering redundancy and fast recovery through ERPS and MSTP. It includes extensive security features (SSHv2, TLSv1.2, SNMPv3, 802.1X, RADIUS/TACACS+, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection), robust ESD and surge protection, and flexible management via web, CLI (console/Telnet/SSH) and SNMP. Additional functions such as PoE scheduling, PD alive check, scheduled power recycling, digital input/output alarm, and SFP DDM diagnostics improve reliability and simplify maintenance.

Suitable for

• Industrial network backbones and control cabinets
• Surveillance systems with PoE PTZ cameras and remote signage
• Outdoor or roadside cabinets and transportation infrastructure (temperature-hardened)
• Retail and hospitality installations with PoE-powered POS, kiosks and AIO terminals
• Enterprise edge deployments requiring 10G uplinks and Layer 2/Layer 4 control

Key specifications

• Model: PLANET IGS-4215-8UP4X (MPN: IGS-4215-8UP4X, EAN: 4711605287791)
• Ports: 8 x 10/100/1000BASE-T (PoE++), 4 x 10G SFP+ slots (supports 10G/1G/2.5G backward)
• PoE: IEEE 802.3bt (PoE++), up to 95 W per port; switch power budget 360 W (platform total listed up to 1440 W)
• Switching capacity: L2/L4 managed, 96 Gbit/s switching capacity, MAC table 16,000 entries
• Management: Web GUI, CLI (console/SSH/Telnet), SNMP (v1/2/3), USB Type-C console
• Security: SSHv2, TLSv1.2, 802.1X, RADIUS, TACACS+, DHCP Snooping, IP Source Guard, DAI, ACL
• Physical: IP30 aluminum housing, DIN-rail mountable, operating temperature -40 to 75 °C, weight ~1.361 kg
• Protection: ESD ±6 kV (contact), ±8 kV (air); surge immunity ±4 kV

How to use

Mount the switch on DIN-rail or wall according to site requirements, connect power and uplink SFP+ modules as needed, and attach PoE devices to the RJ-45 ports. Use the Web GUI, CLI or SNMP-based NMS for initial configuration: enable IPv4/IPv6 settings, configure VLANs, LAG, ERPS/MSTP for redundancy, and set PoE schedules or PD alive-check rules. For remote monitoring and management use PLANET UNI-NMS or CloudViewerPro with SNMP/secure channels enabled.

Recommendations

Place the switch inside a protected enclosure if exposed to direct water or heavy particulate matter despite its IP30 rating; enable PoE scheduling and PD alive check to reduce energy use and to automatically reset unresponsive powered devices. For long-distance PoE extension, use the switch’s Extended mode (10 Mbps duplex) to deliver up to 40 W at distances up to 250 m over Cat5e/6 when appropriate.
