Switch Gigabit Ethernet não gerido PLANET IGS-510TF — 4 x 10/100/1000 Mbps, comutação 10 Gbit/s, 9–48V DC, montagem na parede

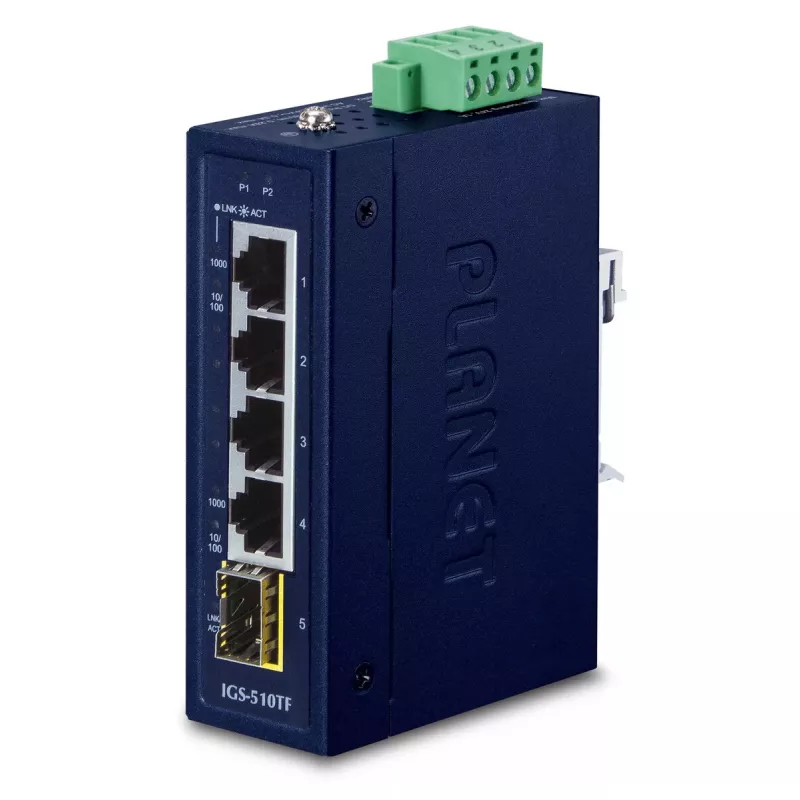

The PLANET IGS-510TF is an unmanaged Gigabit Ethernet switch designed for compact, reliable network extension. It provides four RJ-45 10/100/1000 Mbps ports and one SFP slot supporting 100BASE-FX/1000BASE-X modules. Housed in an IP30-rated compact metal case, the switch delivers a 10 Gbit/s switching capacity, a 4000-entry MAC address table and supports standards including IEEE 802.1p, 802.3/802.3u/802.3x, 802.3ad and 802.3az (Energy Efficient Ethernet). The unit accepts a wide-range power input (9–48 V DC or 24 V AC), supports wall- or DIN-rail mounting, and operates across a wide temperature range, making it suitable for small office, branch, industrial or outdoor-conduit installations that require long-distance fiber connectivity through SFP transceivers.

Advantages

The IGS-510TF combines a small footprint with industrial-grade durability, enabling deployment in space-constrained or harsh environments. Its SFP slot extends network reach beyond the 100 m copper limit, while dual wide-range power inputs provide redundancy for higher availability. Energy-efficient features and automatic link-aware power saving reduce power consumption during low activity. Built-in ESD and surge immunity increase system stability and protect network equipment.

Suitable for

• Small offices and branch networking where compact switches are required
• Industrial sites, plant floors and traffic cabinets with harsh environmental conditions
• Deployments requiring fiber uplinks or long-distance connections using SFP modules
• Outdoor wireless access point and IP camera backhaul when mounted in enclosures
• Network segments needing redundant power inputs for higher uptime

Key specifications

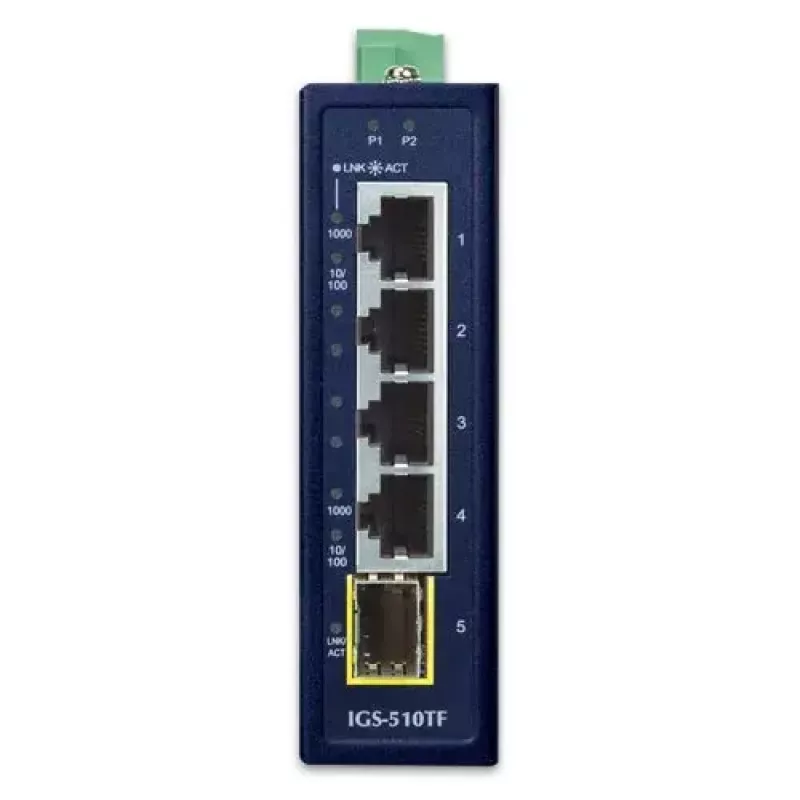

• Ports: 4 x 10/100/1000 Mbps RJ-45 (auto MDI/MDI-X), 1 x SFP slot (100/1000 Mbps)
• Switching capacity: 10 Gbit/s
• MAC address table: 4000 entries
• Standards: IEEE 802.1p, 802.3/802.3u/802.3x, 802.3ad, 802.3az (EEE)

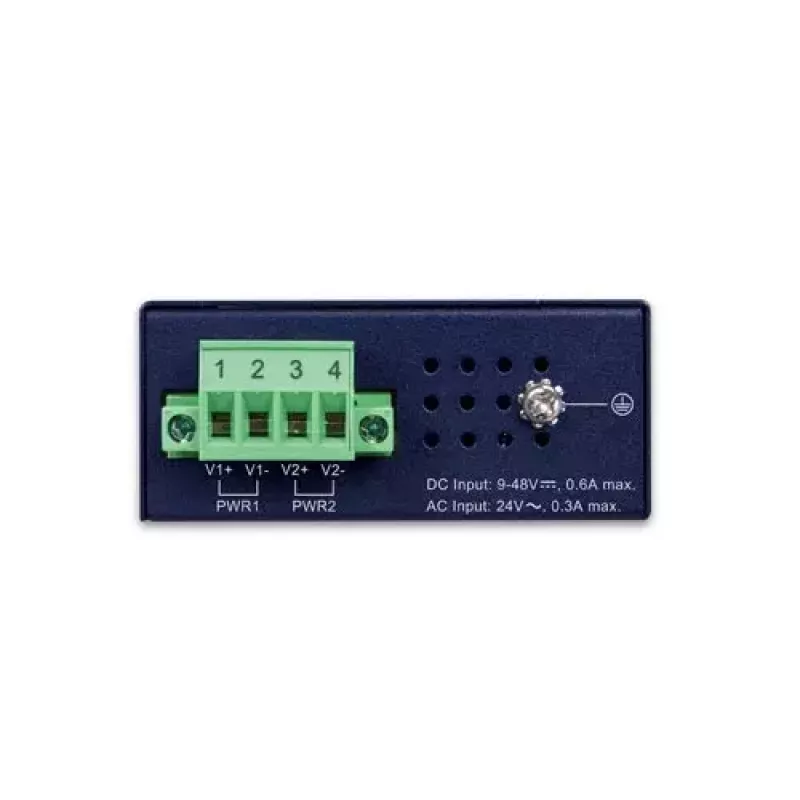

• Power input: wide-range 9–48 V DC or 24 V AC; dual power input for redundancy
• Operating temperature range: -40 to 75 °C
• Protection: ESD contact ±6 kV, air ±8 kV; surge immunity ±6 kV
• Mounting: wall-mountable and DIN-rail compatible
• Enclosure: IP30-rated compact metal housing

How to use

Install the IGS-510TF in a suitable enclosure or mount it on a wall or DIN rail in a location with access to the required power sources and network cabling. Connect copper Ethernet devices to the RJ-45 ports; insert an appropriate SFP module into the SFP slot for fiber connections where longer reach is needed. Provide power using one or both supported inputs (9–48 V DC or 24 V AC); the device will switch to the backup input automatically in case of primary power failure. No configuration is required for basic operation because the switch is unmanaged; connect devices and the switch will forward traffic according to standard Ethernet switching behavior.

Recommendations

Use SFP transceivers compatible with the required fiber type and distance when extending links beyond copper limits, and verify link speed/duplex settings on connected devices if interoperability issues arise. For installations in electrically noisy or outdoor-adjacent environments, mount the switch inside a suitable protective enclosure and ensure proper grounding. To maximize uptime, connect both power inputs to independent sources when possible and monitor cable conditions to benefit from the energy-saving features.
