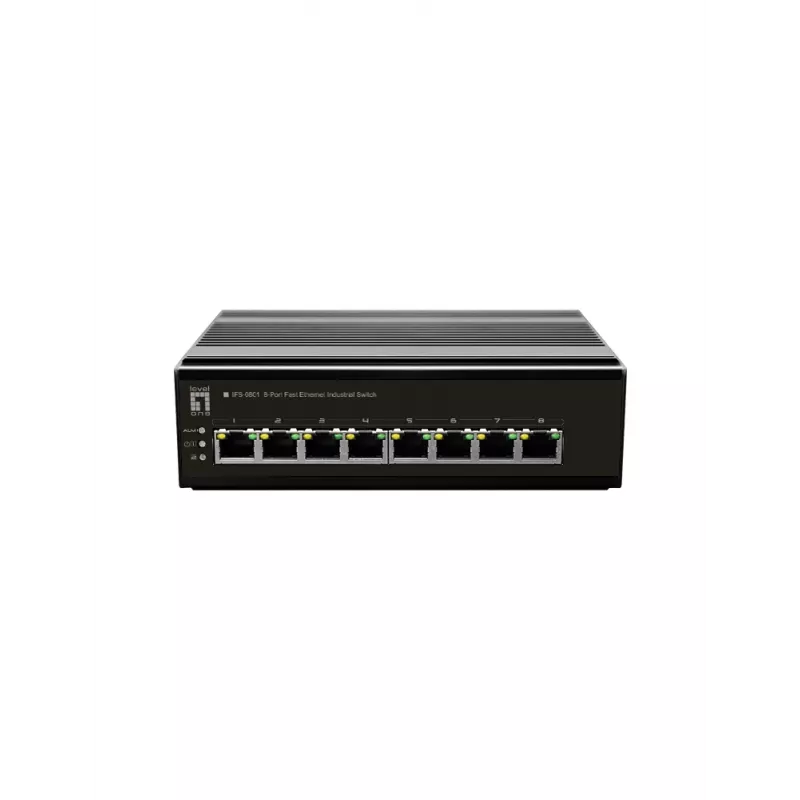

Switch não gerido LevelOne IFS-0801 8 portas Fast Ethernet Industrial

The LevelOne IFS-0801 is an unmanaged industrial Ethernet switch providing eight 10/100Base-TX RJ-45 ports in a compact, DIN-rail or wall-mountable metal housing. Designed for mission-critical and harsh environments, it supports full-duplex operation, an 8000-entry MAC address table and a switching capacity of 1.6 Gbit/s, with operating temperatures suitable for extreme conditions.

Advantages

The IFS-0801 offers a simple plug-and-play solution for industrial networks, with robust IEEE 802.3/802.3u/802.3x compliance, visible LED indicators for link and activity monitoring, and a compact form factor that can be mounted on DIN-rail or on a wall. Its unmanaged design eliminates configuration needs while delivering stable Fast Ethernet connectivity across eight ports.

Suitable for

• Industrial automation systems
• Factory floor network segments
• Transport and infrastructure networking
• Machine-to-machine (M2M) connections
• Small industrial LAN extensions

Key specifications

• Switch type: Unmanaged
• Ports: 8 × RJ-45 Fast Ethernet (10/100) with full duplex
• Switching capacity: 1.6 Gbit/s
• MAC address table: 8,000 entries
• Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Mounting: DIN-rail and wall mountable
• Operating temperature range: -40°C to 75°C
• Colour: Black
• Weight: 0.45 kg

How to use

Install the LevelOne IFS-0801 on a DIN-rail or secure it to a wall in a suitable equipment cabinet. Connect your devices to the RJ-45 ports using Cat5e/Cat6 cables. The switch is unmanaged, so no software configuration is required; LED indicators show link and activity status for each port. Ensure the switch is powered from a compatible industrial power source according to your installation guidelines.

Recommendations

Place the switch in a ventilated cabinet away from direct sources of heat and moisture. Use shielded or properly grounded cabling in high-interference environments and verify that the operating temperature of the installation site falls within the specified -40°C to 75°C range for reliable operation.
