Switch não gerido PLANET IP30 IGS-514PT 4 portas Gigabit Ethernet PoE

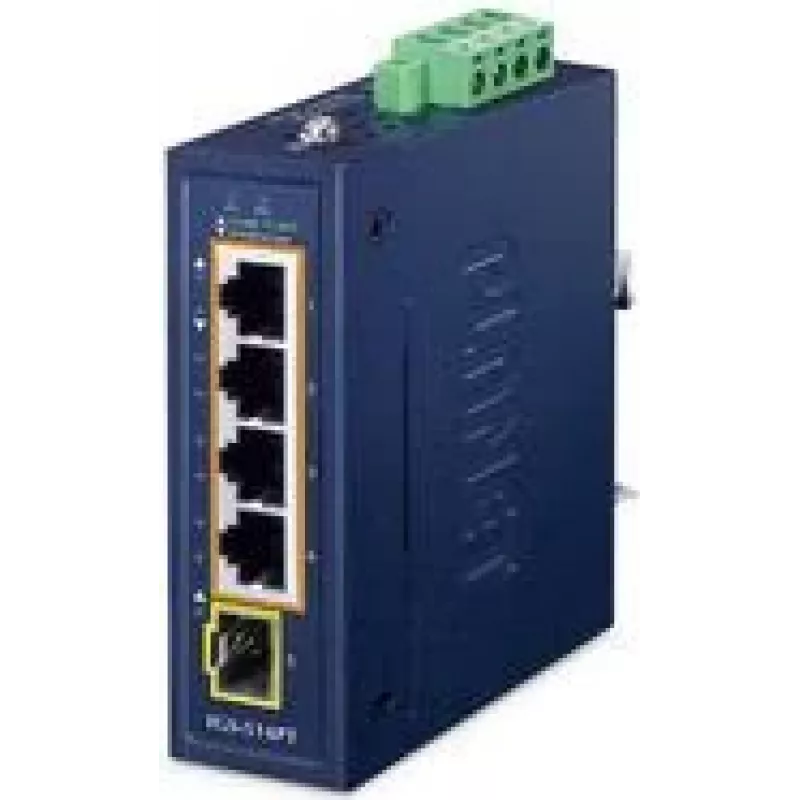

PLANET IGS-514PT is an unmanaged industrial-grade IP30 switch with four 10/100/1000BASE-T PoE+ ports and one 100/1000X SFP uplink. Designed for narrow and harsh environments, it supports IEEE 802.3at PoE+ with a total power budget of up to 120 W, dual 48–54 V DC inputs for redundancy, wire-speed Gigabit switching and an operating temperature range from -40 to 75 °C.

Advantages

The IGS-514PT delivers high-power PoE+ output up to 30 W per port with a combined budget of 120 W, plug-and-play operation without software setup, and an SFP slot for long-distance fiber links up to 120 km. Its rugged IP30 metal housing provides EMI and surge immunity, passive cooling for silent operation, and support for DIN-rail or wall mounting in space-limited locations.

Suitable for

• Powering and connecting IP cameras and outdoor/indoor surveillance devices
• Network extension to remote PoE devices using SFP fiber or PoE extenders
• Industrial automation cabinets, traffic control enclosures, and other harsh environments
• Edge deployments that require dual-power redundancy and compact installation

Key specifications

• Ports: 4 x 10/100/1000BASE-T PoE+ ports, 1 x 100/1000X SFP
• PoE standard: IEEE 802.3at (PoE+), up to 30 W per port, total budget up to 120 W
• Switching capacity: 10 Gbit/s (wire-speed Gigabit switching)
• Power input: Dual DC 48–54 V for redundancy
• Operating temperature: -40 to 75 °C
• Housing: IP30 metal case, ventilated passive cooling
• Protection: Ethernet ESD ±6 kV contact / ±8 kV air discharge; ±6 kV surge immunity
• Installation: DIN-rail or wall mount
• Product type: Unmanaged industrial PoE switch

How to use

Install the IGS-514PT on a DIN rail or secure it to a wall enclosure in a location that fits the compact chassis. Connect the DC power sources to the dual 48–54 V inputs for redundancy. Plug PoE devices into the Gigabit RJ-45 ports and use the SFP slot with compatible 100BASE-FX/1000BASE-X modules for long-distance fiber uplinks. The switch is plug-and-play and requires no configuration for basic PoE and Layer 2 forwarding.

Recommendations

For stable long-distance PoE deployments, use PLANET PoE extenders to exceed the 100 m Ethernet limit or select appropriate SFP modules for fiber links; ensure total PoE power draw does not exceed the 120 W budget and provide dual DC power feeds for high availability.
