SYNERGY21 Cabo de ligação de fibra ótica 10m LC-LC Duplex OM3 Uniboot Push/Pull rotativo 2mm LSZH azul-água

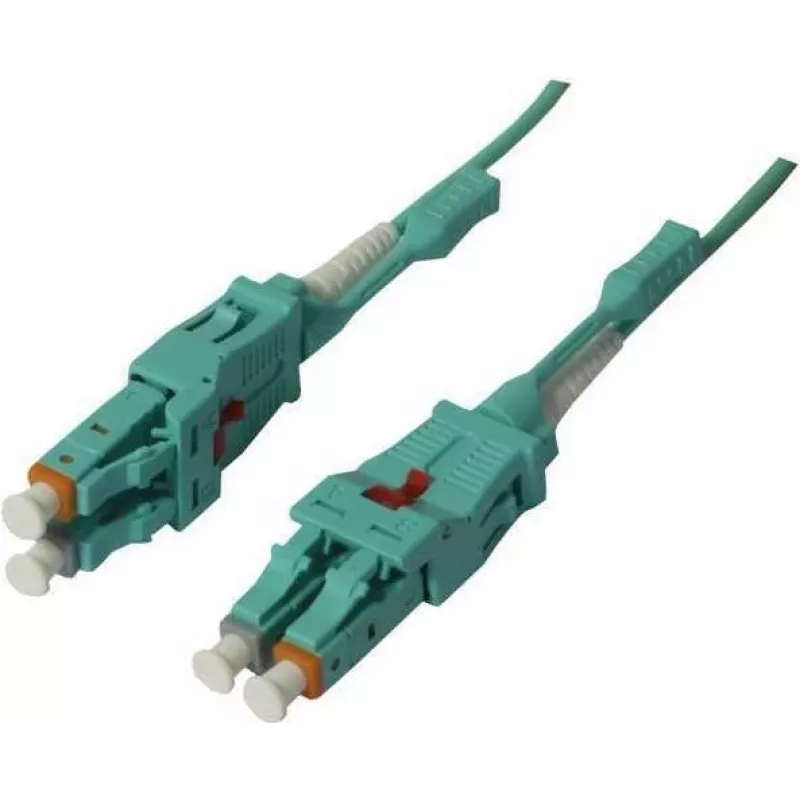

The SYNERGY21 S215547 is a high-performance 10-meter fiber optic patch cable designed for reliable multimode data transmission. Featuring LC-LC duplex Uniboot connectors with rotatable polarity and push/pull tabs, this OM3 cable ensures easy installation and polarity reversal without additional tools. The 2mm LSZH jacket provides durability and safety, making it ideal for data centers, enterprise networks, and high-speed applications.

Advantages

Rotatable Uniboot connectors allow polarity changes without disassembly, saving time and reducing downtime. The push/pull tab design simplifies insertion and removal in high-density panels. LSZH jacket ensures low smoke and zero halogen for safer environments. OM3 fiber supports 10 Gbps up to 300 meters, future-proofing your network.

Suitable for

• Data center cabling
• Enterprise network infrastructure
• High-speed fiber optic connections
• Telecommunications and server rooms

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM3
• Core/Cladding: 50/125 µm
• Number of Fibers: 2 (Duplex)
• Connector A: LC Duplex Uniboot
• Connector B: LC Duplex Uniboot
• Connector Features: Rotatable Polarity, Push/Pull Tab
• Cable Length: 10 m
• Jacket Diameter: 2 mm
• Jacket Material: LSZH
• Cable Color: Aqua
• Insertion Loss: < 0.3 dB (typical)
• Return Loss: > 30 dB (typical)
• Attenuation at 850nm: < 2.5 dB/km
• Attenuation at 1300nm: < 0.8 dB/km
• Bandwidth at 850nm: 1500 MHz·km
• Bandwidth at 1300nm: 500 MHz·km
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, use with OM3-compatible transceivers and ensure clean fiber end-faces before connection. This cable is ideal for 10 Gigabit Ethernet and other high-bandwidth applications.
