SYNERGY21 Ficha RJ45 de Campo sem Ferramentas Cat.6A Blindada Reta/Angular (S216569)

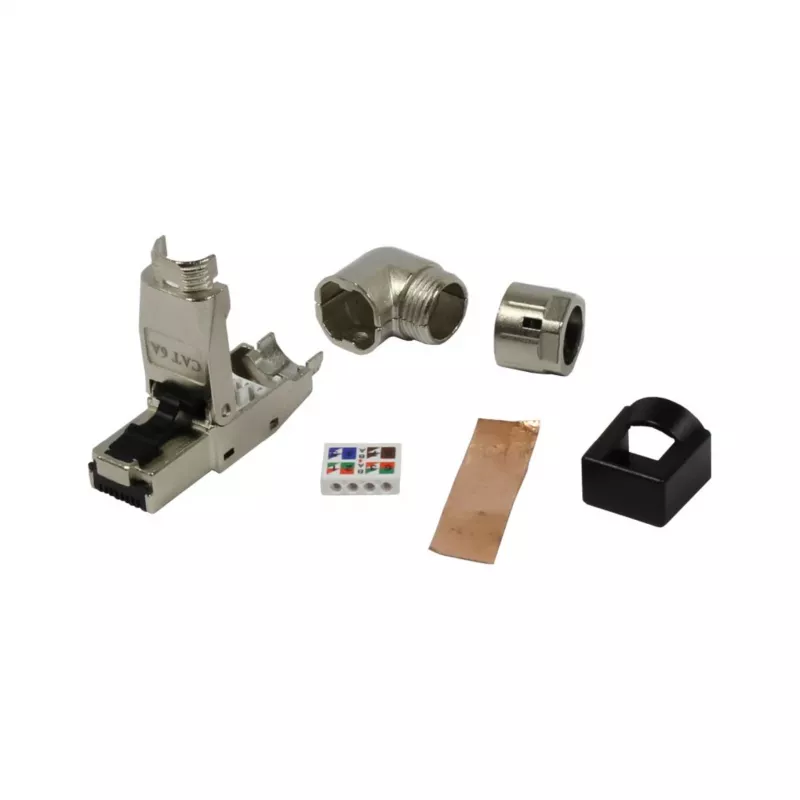

The SYNERGY21 RJ45 field-terminable plug (S216569) is a high-performance, tool-less connector designed for Cat.6A (Class EA) networks. It supports both straight and angled cable entry (360° rotatable) for flexible installation in tight spaces. The shielded zinc die-cast housing ensures robust EMI protection, making it ideal for industrial and data center environments.

Advantages

Tool-less termination saves time and reduces installation errors. Reusable up to 10 cycles, lowering waste and cost. Supports PoE, PoE+, and 4PPoE (IEEE 802.3at/af/bt) for power-over-Ethernet applications. Gold-plated contacts (50µ”) ensure reliable data transmission up to 10 Gigabit Ethernet.

Suitable for

• Structured cabling in offices and data centers
• Industrial Ethernet networks requiring shielded connections
• Field installation where crimping tools are unavailable
• PoE devices such as cameras, access points, and IoT sensors

Key specifications

• Connector Type: RJ45 Plug
• Network Category: Cat.6A (Class EA)
• Termination Method: Field-terminable, Tool-less
• Shielding: Shielded (FTP/STP compatible)
• Cable Entry Orientation: Straight or Angled (360° rotatable)
• Supported Wire Gauge (Solid): AWG 24/1 - AWG 22/1
• Supported Wire Gauge (Stranded): AWG 27/7 - AWG 22/7
• Conductor Compatibility: Solid and Stranded Wires
• Contact Plating: Gold-plated (50µ")
• Housing Material: Zinc Die-cast
• PoE Support: PoE, PoE+, 4PPoE (IEEE 802.3at/af/bt)
• Data Transfer Rate: Up to 10 Gigabit Ethernet
• Number of Contacts: 8P8C
• Reusability: Up to 10 termination cycles
• Insertion Cycles: >750
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Operating Temperature: -40°C to +70°C
• IDC Contacts: LSA-compatible

Recommendations

For optimal performance, use with Cat.6A shielded cable and ensure proper grounding. Suitable for both solid and stranded conductors. Always follow local installation standards.
