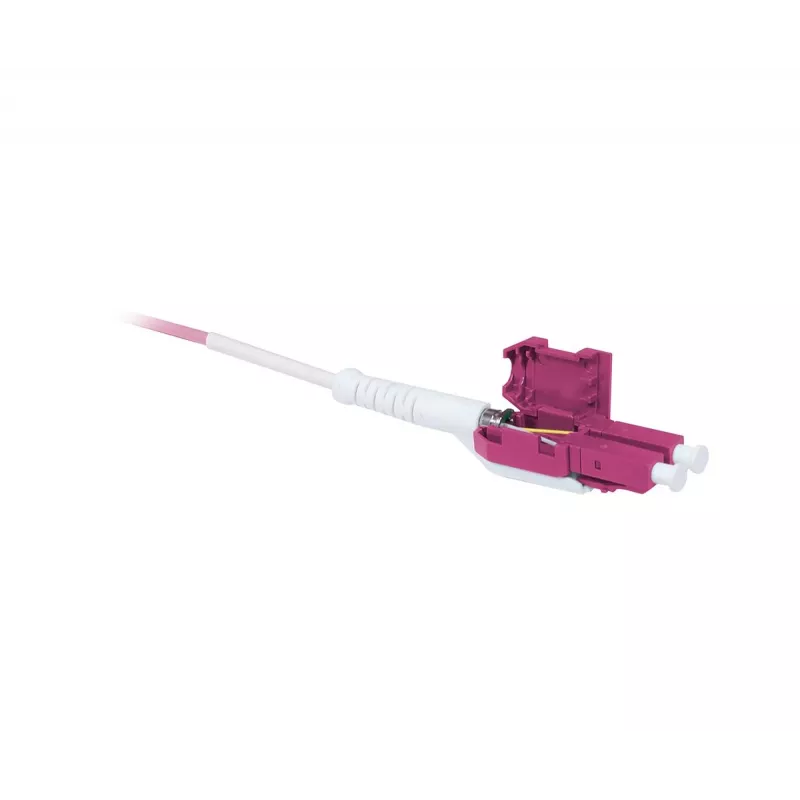

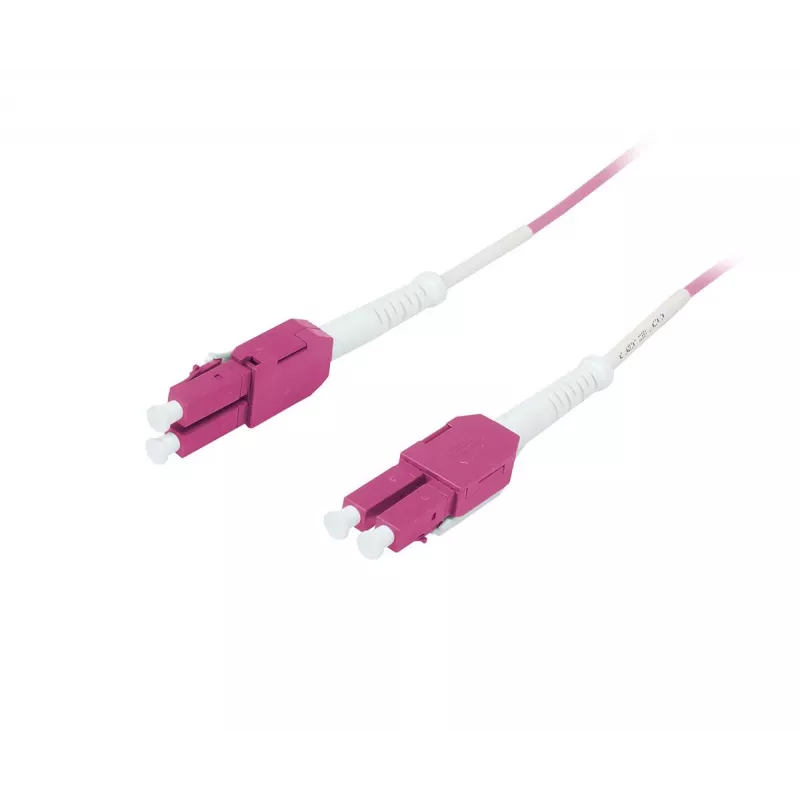

SYNERGY21 OM4 LC para LC Duplex Uniboot Push-Pull Cabo de fibra ótica, 5m, aqua, LSZH, 2mm

High-density fiber patching in data centers often suffers from cable congestion and difficult connector access. This SYNERGY21 OM4 duplex patch cable solves that with a uniboot design that combines both fibers into a single 2mm jacket, reducing bulk by nearly half compared to traditional zipcord cables. The rotatable LC connectors allow you to orient the push-pull tabs for easy access in tight spaces, while the push-pull mechanism enables one-handed insertion and removal without disturbing adjacent connections. Ideal for 10G/40G/100G Ethernet, Fibre Channel, and InfiniBand applications where space is at a premium.

Who is it for

Network engineers, data center technicians, and IT professionals who manage high-density fiber infrastructure. Perfect for environments with dense patch panels, blade servers, or SAN switches where cable management is critical and downtime is not an option.

Main features

• OM4 multimode fiber supports 10G up to 550m, 40G/100G up to 150m using 50/125µm core.
• Duplex LC uniboot connectors with rotatable, push-pull latch for easy access and polarity reversal.
• 2mm round LSZH jacket is halogen-free, low-smoke, and flame-retardant for safety in enclosed spaces.
• Aqua color coding per TIA-598-D for quick identification of OM4.
• Low insertion loss (≤0.2 dB) and high return loss (≥30 dB) ensure reliable signal integrity.
• Operating temperature range -20°C to +70°C for use in controlled data center environments.

Specifications

• Fiber type: Multimode OM4, 50/125µm core/cladding
• Connector type: LC Duplex Uniboot, rotatable push-pull latch
• Cable length: 5 meters
• Cable outer diameter: 2mm
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Aqua
• Insertion loss: ≤ 0.2 dB
• Return loss: ≥ 30 dB
• Polarity: A-B (Crossed)
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3

Tips

For optimal performance, avoid bending the cable beyond its minimum bend radius and keep connectors clean using appropriate fiber cleaning tools. When reversing polarity, rotate the connectors as needed without twisting the cable.
