Tech Sterowniki PPZ-02 relé sem fios para estores, de embutir, branco

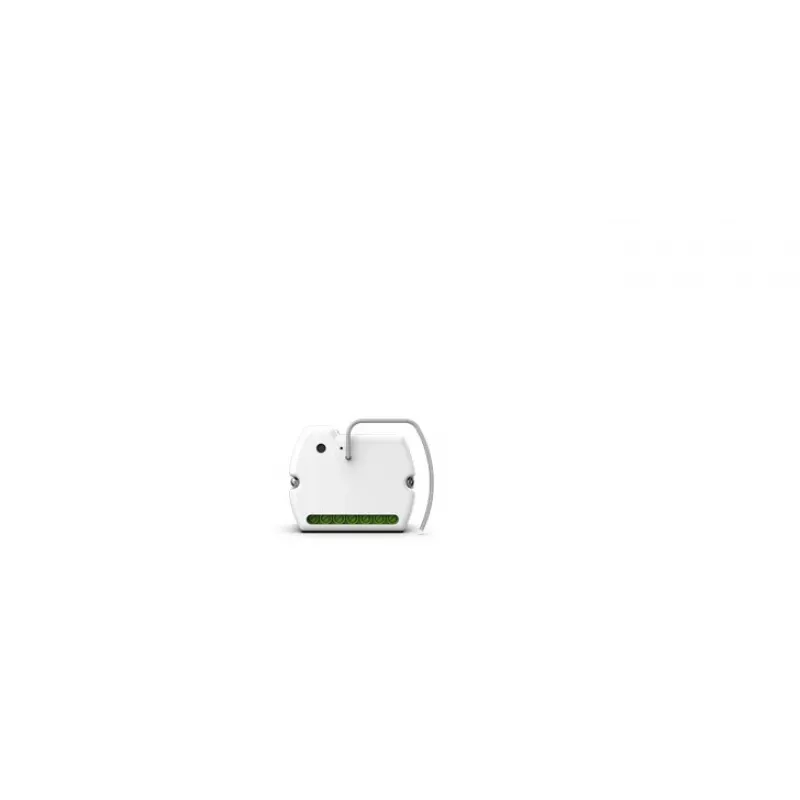

The Tech Sterowniki PPZ-02 is a wireless roller shutter relay designed for flush-mounted installation in an electrical box. It allows standard roller shutter switches to be connected to the Sinum system, enabling both manual and app-based control. The device communicates wirelessly with the EH-01 central unit.

Key features

• Wireless communication
• Flush-mounted installation in electrical box
• Controls roller shutters up/down
• 2 relays for controlling raising and lowering directions
• Compatible with standard roller shutter switches
• Enables independent control via mobile app and manual wall switch
• Supports remote control, scenes, actions with switch, and schedules after registration and programming in EH-01 central unit
• Requires neutral wire in addition to phase wire in the electrical box

Specifications

• Brand: Tech Sterowniki
• MPN: PPZ-02 WG.23.0011
• Product colour: White
• Wireless communication: WTP 868MHz
• Height: 37 mm
• Width: 47 mm
• Depth: 30 mm
• Power supply: 230 V AC
• Power consumption: 1 W
• Operating temperature: 5° - 50 °C
• Number of relay outputs: 2
• Max. relay load: 0.5 A
