CAME AXL 22 ECO TOP conjunto completo de portão de batente de duas folhas para portões até 4,4 m

Double-leaf swing gate automation kit engineered for residential gates up to 4.4 m total width, delivering robust and reliable operation with a pair of electromechanical actuators. The CAME AXL 22 ECO TOP combines powerful 2000 N thrust with a durable, irreversible motor design, ensuring secure closure and long service life.

Advantages

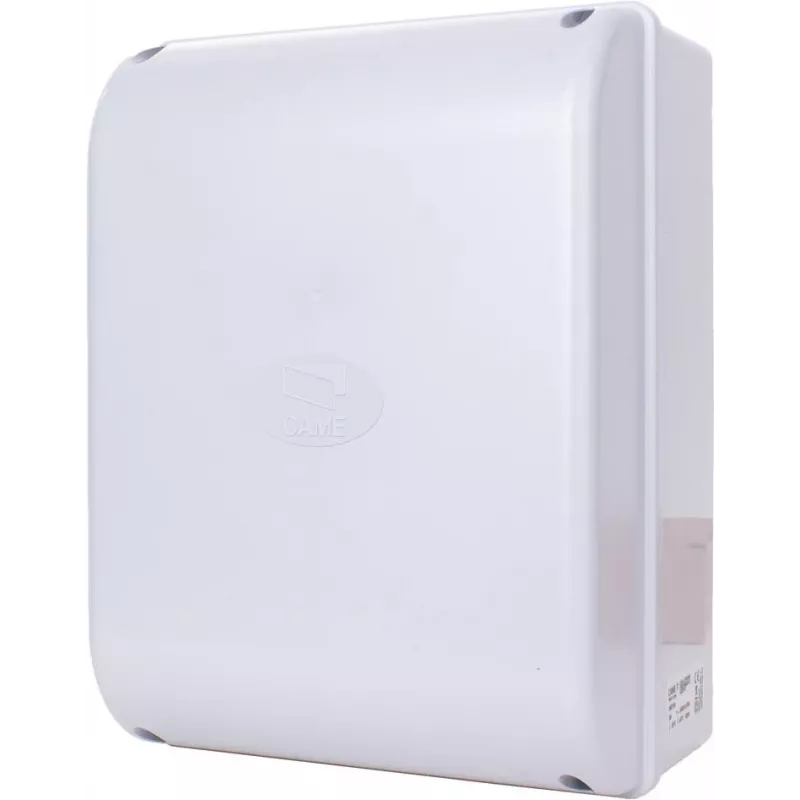

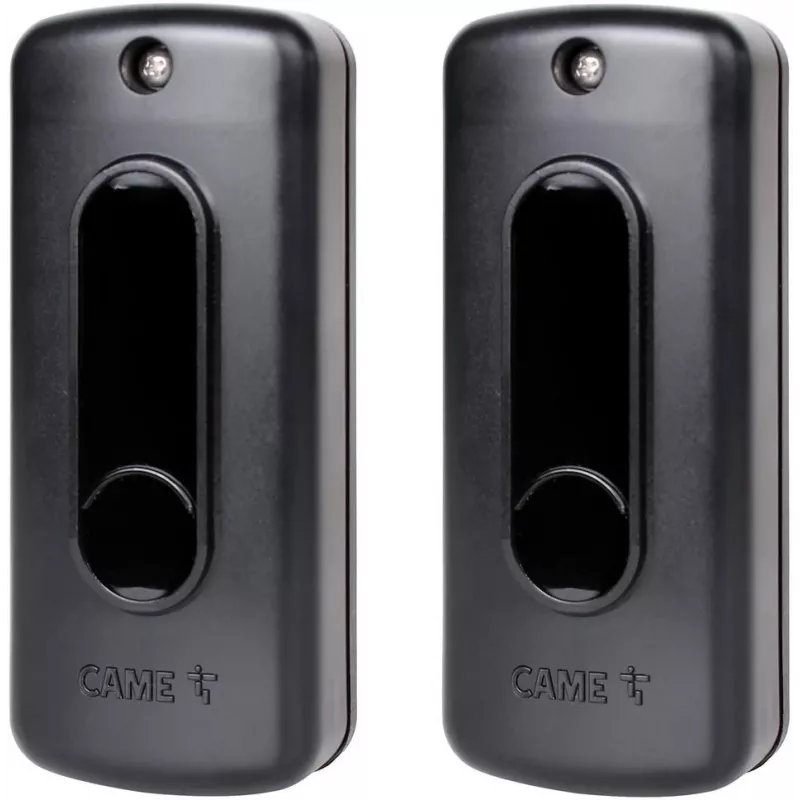

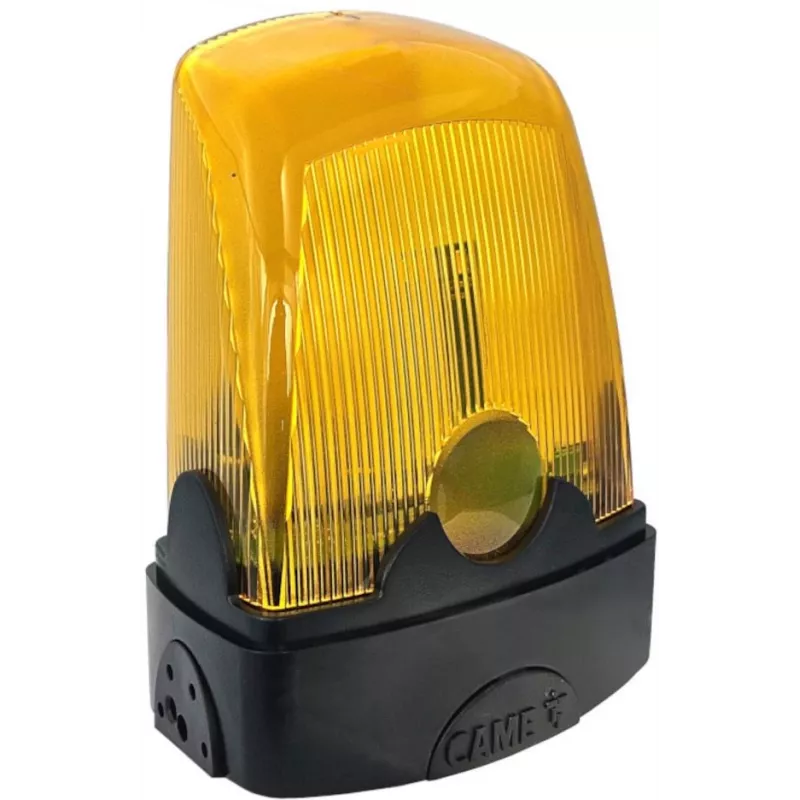

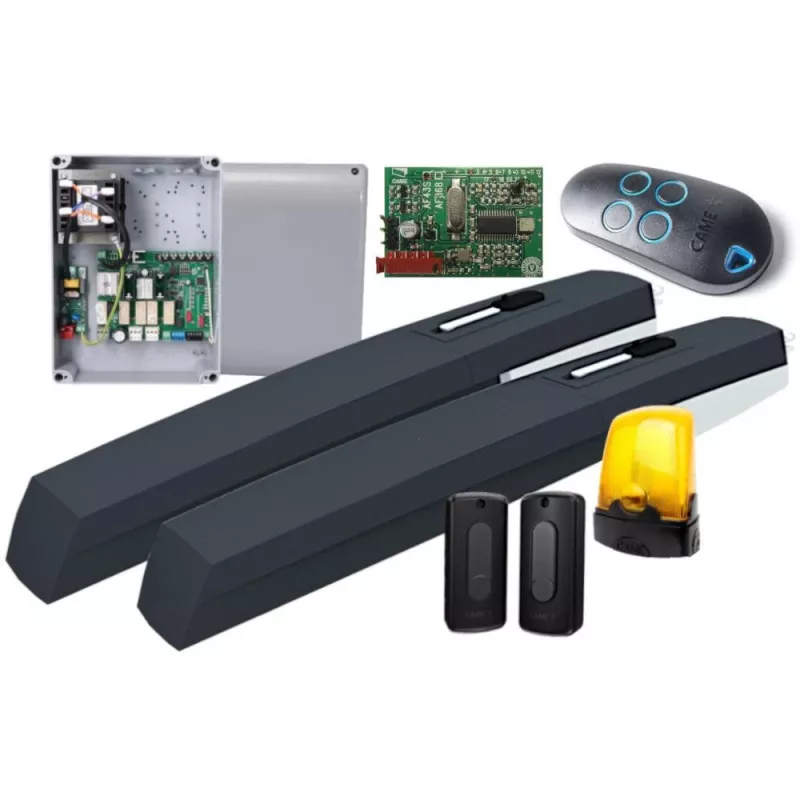

This complete kit includes two AXL22ECOTOP actuators, a ZL19N control unit, two 4-channel TOPD4FKS remote controls, a pair of DIR10 photocells, and a KLED24 flashing light. The irreversible electromechanical motors provide inherent anti-crush safety and hold the gate firmly in position without additional locks. Manual release with personalized key allows operation during power outages. Obstacle detection via encoder enhances safety by reversing the gate upon encountering resistance.

Suitable for

• Residential double-leaf swing gates up to 4.4 m total width
• Gate leaves up to 2.2 m wide and 200 kg each
• Installations requiring 230V AC power supply
• Users seeking reliable automation with remote control and safety devices

Key specifications

• Max gate leaf width: 2.2 m per leaf (total 4.4 m)
• Max gate leaf weight: 200 kg per leaf
• Motor type: Electromechanical, irreversible
• Thrust force: 2000 N
• Power supply: 230V AC (motor and control unit)
• Duty cycle: 30% (residential)
• Opening angle: up to 110°
• Opening time (90°): 18–22 seconds
• Protection rating: IP54 (actuators)
• Operating temperature: -20°C to +55°C
• Included accessories: 2 remotes, 1 pair photocells, 1 flashing light

Recommendations

For secure and convenient operation of double-leaf swing gates up to 4.4 m, the CAME AXL 22 ECO TOP kit offers a complete solution with powerful actuators, essential safety devices, and user-friendly remote controls.
