Conjunto completo para portão de correr CAME BXL ECO TOP para portões até 400 kg

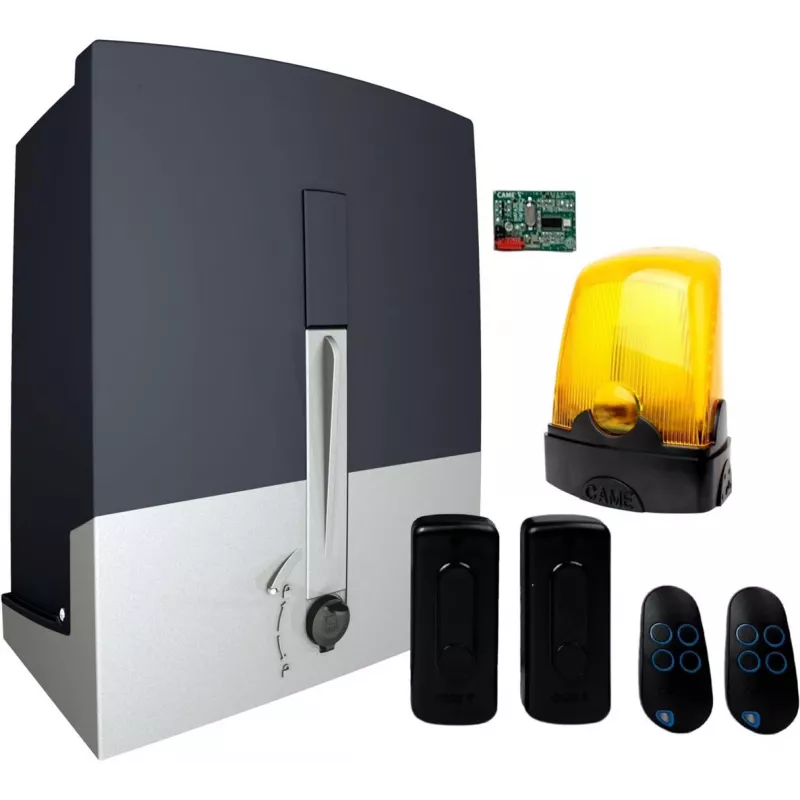

The CAME BXL ECO TOP is a complete electromechanical sliding gate kit designed for residential and light commercial applications. It provides reliable automation for gates weighing up to 400 kg, featuring an integrated control panel, encoder for obstacle detection, and soft start/stop functionality. The kit includes two 4-channel remote controls, a pair of safety photocells, a flashing light, and an antenna, making it a comprehensive solution for convenient and secure gate operation.

Advantages

This kit offers easy installation and programming thanks to the self-learning function. The integrated ZBX7N control panel simplifies wiring and reduces the need for additional components. The encoder ensures precise movement and enhanced safety by detecting obstacles. With intensive use rating (S2=30min), it is suitable for frequent operation. The IP44 protection rating guarantees durability against weather conditions.

Suitable for

• Residential sliding gates up to 400 kg
• Light commercial gate automation
• Properties requiring reliable and safe gate operation
• Users seeking a complete kit with essential accessories included

Key specifications

• Max Gate Weight: 400 kg
• Motor Power Supply: 230V AC, 50/60Hz
• Motor Power: 170 W
• Current Consumption: 1.4 A
• Torque: 20 Nm
• Max Gate Speed: 12 m/min
• Duty Cycle: Intensive use (S2=30min)
• Protection Rating: IP44
• Operating Temperature: -20°C to +55°C
• Encoder: Yes (for obstacle detection)
• Soft Start/Stop: Yes
• Obstacle Detection: Yes
• Self-Learning Function: Yes
• Remote Control Frequency: 433.92 MHz
• Included Remote Controls: 2x CAME TOPD4F (4-channel)
• Included Safety Photocell: 1x CAME DIR10 pair
• Included Flashing Light: 1x CAME KLED (230V)
• Included Antenna: 1x CAME TOP-A433N

Recommendations

For optimal performance, ensure the gate is in good mechanical condition and properly balanced before installation. Professional installation is recommended to comply with safety regulations. The kit is designed for gates up to 400 kg; do not exceed this weight limit.
