CAME NEW ATI30DGF SAFE 24V TOP Conjunto completo para portões giratórios de duas folhas até 6 m

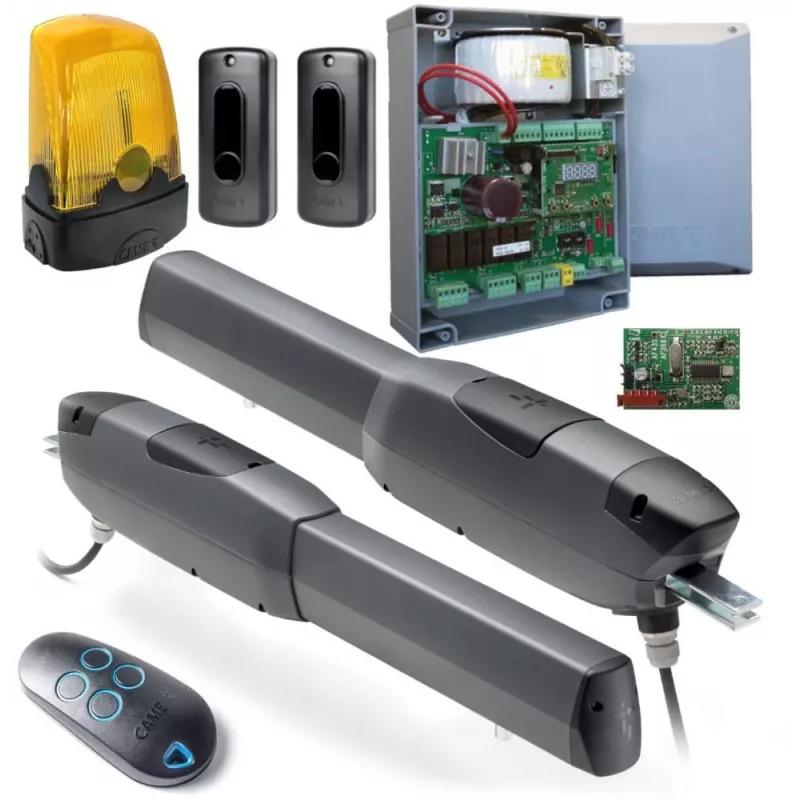

The CAME NEW ATI30DGF SAFE 24V TOP is a complete automation kit designed for residential double-leaf swing gates with a maximum total opening of 6 meters (3 meters per leaf). This high-performance set includes two ATI 3024N electromechanical irreversible motors, a ZL19N control panel, AF43S radio card, two TOPD4F remote controls, DIR10 photocells, KLED24 flashing light, TOP-A433N antenna, and all necessary mounting accessories. Powered by 24V DC motors with 120W each, it delivers 400 Nm torque and opens 90° in 19 seconds, suitable for intensive use. The system features encoder-based obstacle detection, self-locking, manual release with personalized key, and IP54 protection rating. Operating temperature range is -20°C to +55°C.

Advantages

Reliable 24V DC technology ensures smooth and quiet operation. The encoder provides precise control and enhanced safety through obstacle detection. Self-locking mechanism guarantees gate security even during power outages. Manual release with personalized key allows easy operation in emergencies. The kit includes all essential components for a complete installation, saving time and ensuring compatibility.

Suitable for

• Residential double-leaf swing gates
• Gate leaves up to 3 meters wide and 400 kg per leaf
• Applications requiring intensive use and high duty cycle
• Installations needing reliable safety features like photocells and obstacle detection

Key specifications

• Motor Type: Electromechanical, Irreversible
• Power Supply: 24V DC (motors), 230V AC (control panel)
• Motor Power: 120 W
• Current Draw: 5 A
• Torque: 400 Nm
• Opening Time (90°): 19 seconds
• Duty Cycle: Intensive use
• Protection Rating: IP54
• Operating Temperature: -20°C to +55°C
• Control Panel: CAME ZL19N
• Encoder: Yes
• Self-locking: Yes
• Manual Release: Yes, with personalized key
• Kit Contents: 2x ATI 3024N motors, ZL19N control panel, AF43S radio card, 2x TOPD4F remote controls, DIR10 photocells, KLED24 flashing light, TOP-A433N antenna, mounting accessories

Recommendations

For optimal performance, ensure proper installation by a qualified professional. Regularly test safety features such as photocells and obstacle detection. The system is designed for gates up to 6m total width; do not exceed specified leaf weight and dimensions.
