CAME BXV 4 SAFE ATOMO Conjunto (comandos TOP) para portões de correr até 400 kg

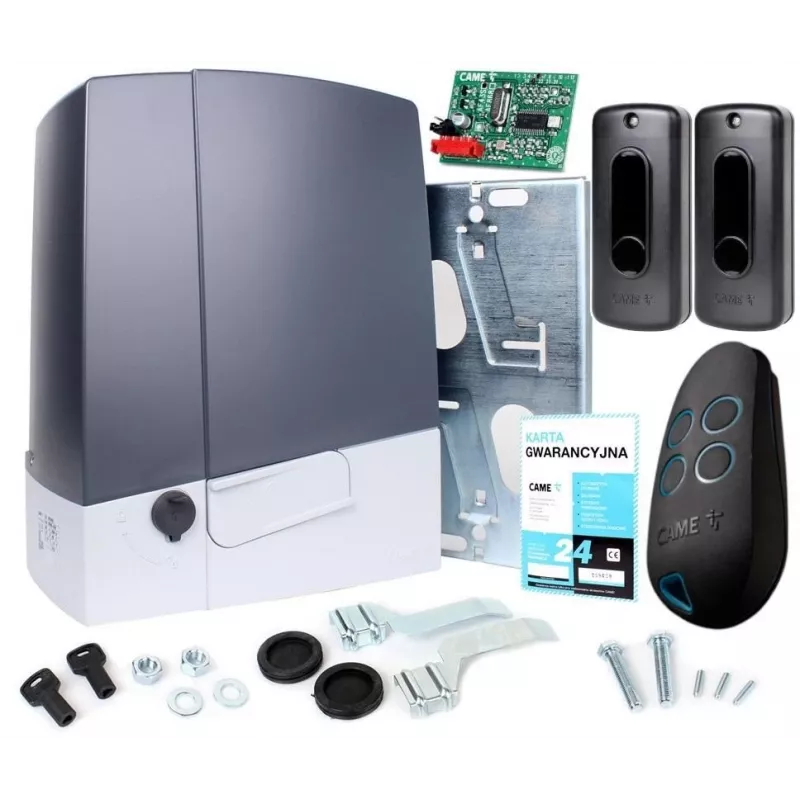

The CAME BXV 4 SAFE ATOMO set is a complete automation kit designed for 400kg sliding gates. It includes two TOP remote controls, a control panel, motor, photocells, flashing light, and antenna, providing a reliable and safe solution for residential and light commercial applications.

Advantages

This kit offers easy installation, integrated safety features, and robust performance. The 24V DC motor ensures smooth operation, while the encoder and self-diagnosis system enhance safety. The included remote controls and photocells provide convenience and security.

Suitable for

• Residential sliding gates up to 400 kg
• Light commercial sliding gates
• Automation of new or existing gates

Key specifications

• Gate Type: Sliding Gate
• Max Gate Weight Capacity: 400 kg
• Motor Power Supply: 24V DC
• Control Panel Power Supply: 230V AC (50/60Hz)
• Motor Power Consumption: 170 W
• Max Current Draw: 7 A
• Max Gate Opening Speed: 10.5 m/min
• Duty Cycle: Intensive Use
• Protection Rating: IP54
• Operating Temperature Range: -20°C to +55°C
• Encoder: Yes (for obstacle detection and precise control)
• Safety Device Self-Diagnosis: Yes
• Radio Frequency: 433.92 MHz
• Remote Controls Included: 2 x CAME TOPD4RBS (4-channel)
• Photocells Included: 1 Pair CAME DIR10 (Safety Photocells)
• Flashing Light Included: 1 x CAME KLED24 (24V LED Flashing Light)
• Antenna Included: 1 x CAME TOP-A433N (Antenna)
• Control Panel Model: ZN7 (Integrated)
• Rack Module Compatibility: M4 (Rack not included)

Recommendations

Ensure the gate structure is in good condition and properly balanced before installation. Professional installation is recommended to comply with safety regulations.
