CAME KRONO Plus SPACE Conjunto para portões de batente 6m

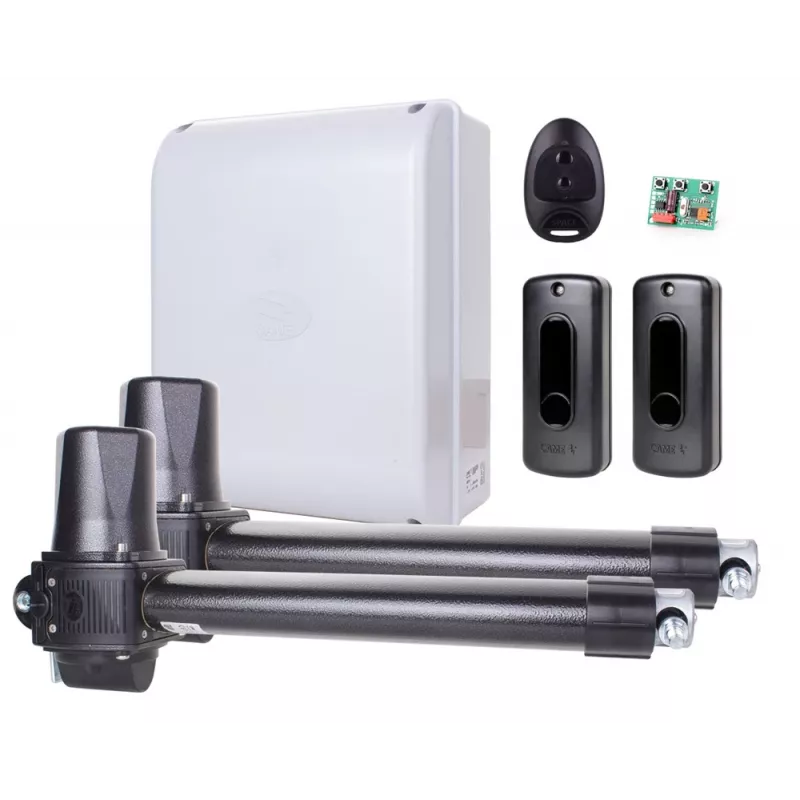

The CAME KRONO Plus SPACE set is a complete electromechanical automation solution for residential double swing gates up to 6 meters total width. Designed for reliable and quiet operation, this kit includes two CAME KR310D linear actuators, a ZN6 control panel, and all necessary accessories for a professional installation. Ideal for new gates or retrofitting existing ones, it offers a perfect balance of power, safety, and ease of use.

Advantages

Robust 3000 N thrust per actuator ensures smooth opening even for heavy gates up to 400 kg per leaf. The integrated mechanical limit switches provide precise end-stop adjustment without additional sensors. With IP54 protection rating, the actuators withstand outdoor conditions, while the 30% duty cycle supports frequent use. The manual release mechanism allows gate operation during power outages.

Suitable for

• Residential double swing gates
• Gate leaf lengths up to 3 m per leaf
• Gate leaf weights up to 400 kg per leaf
• New installations or retrofitting existing gates

Key specifications

• Gate Type: Double Swing Gate
• Max Total Gate Width: 6 m
• Max Gate Leaf Length: 3 m per leaf
• Max Gate Leaf Weight: 400 kg per leaf
• Actuator Type: Electromechanical Linear
• Actuator Model: CAME KR310D
• Power Supply: 230V AC (50/60Hz)
• Motor Power: 130 W
• Thrust Force: 3000 N
• Opening Time (90°): 22 seconds
• Duty Cycle: 30%
• Protection Rating: IP54
• Operating Temperature Range: -20°C to +55°C
• Control Panel Model: CAME ZN6
• Limit Switch Type: Mechanical (integrated)
• Max Gate Opening Angle: 120°
• Actuator Body Material: Aluminium
• Safety Features: Obstacle detection, manual release
• Included Actuators: 2

Recommendations

For optimal performance, ensure gate hinges are well-maintained and gate leaves are balanced. Professional installation by a qualified technician is recommended to comply with local safety regulations.
