Hypertec 257160-HY patch panel 1U

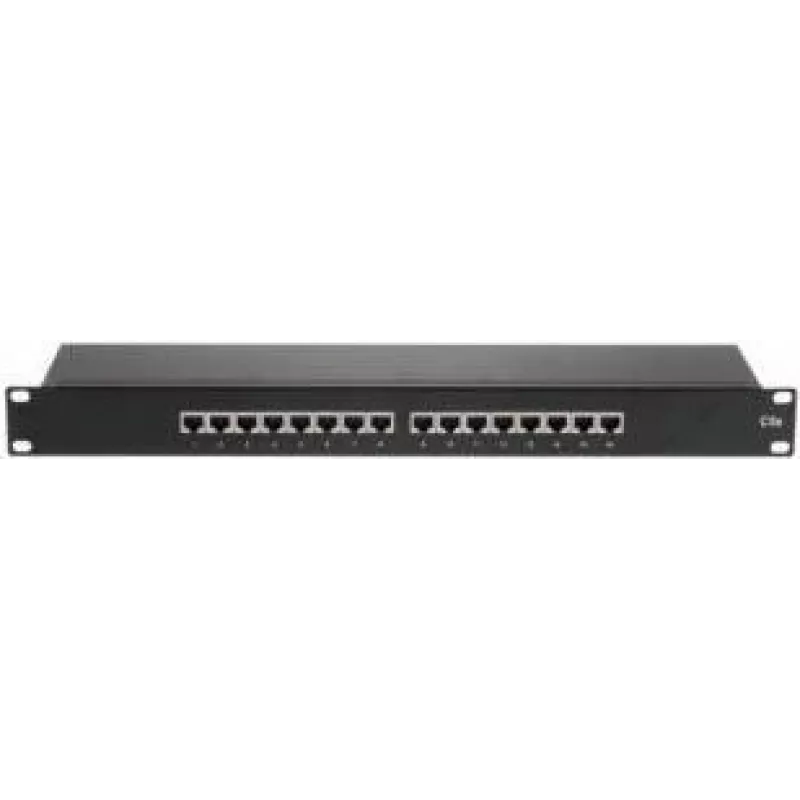

The Hypertec 257160-HY is a 1U rack-mounted patch panel for Cat5e cabling. It offers S/UTP (shielded) protection across 16 ports, enabling organized cable termination and reduced electromagnetic interference in server racks and network cabinets. The unit’s black finish and compact 1U height make it suitable for professional and small-scale networking environments where space and signal integrity matter.

Advantages

The patch panel provides shielded connections that help minimize crosstalk and external interference. With 16 clearly labeled ports in a 1U form factor, it simplifies cable management and rack organization. Its rack-mount design ensures secure installation and straightforward integration into existing network infrastructure.

Suitable for

Key specifications

How to use

Mount the patch panel in a standard 19-inch rack occupying 1U of space. Terminate Cat5e cables onto the panel’s keystone or IDC jacks according to the T568A or T568B wiring standard and secure the cables to maintain shielding continuity. Label each port as needed for easier identification and route cables neatly to patch cords or switches.

Recommendations

For best performance, use category-compliant Cat5e cabling and maintain continuous shielding connections from cable to panel and to connected equipment. Avoid running network cables parallel to large power lines and secure cables to prevent strain on terminations.
