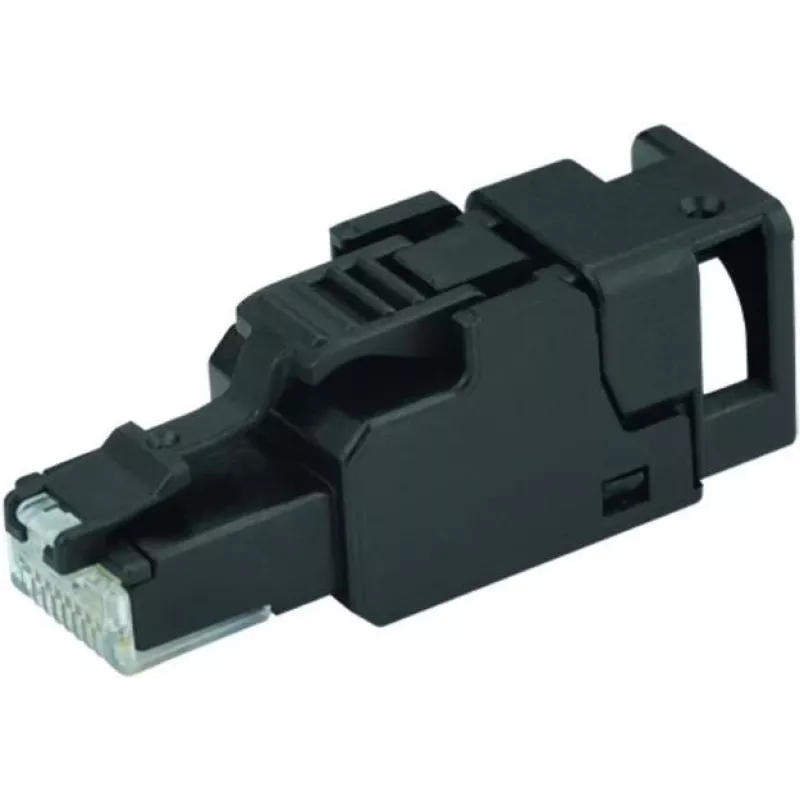

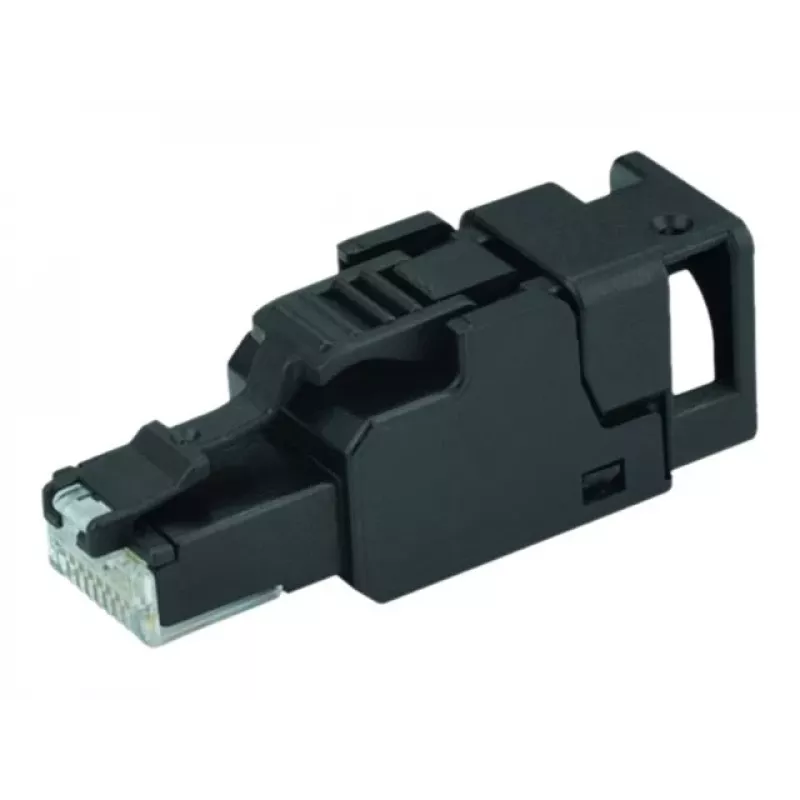

Telegärtner 100023052 Ficha RJ45 UFP8 Cat.6A não blindada de montagem em campo T568B

RJ45 modular plug engineered for tool-free field termination on Cat.6A unshielded cabling. Supports 10 Gigabit Ethernet and Power over Ethernet up to 4PPoE, with compatibility for solid and stranded conductors from AWG 24/1 to AWG 23/1 and AWG 27/7 to AWG 23/7.

Advantages

Field-terminable design eliminates the need for crimping tools, enabling fast on-site assembly. T568B wiring scheme ensures consistent installations. Unshielded construction suits UTP environments where EMI is not a concern.

Suitable for

• Data networking in commercial and industrial settings
• 10GBASE-T Ethernet connections
• PoE, PoE+, and 4PPoE powered devices
• Solid and stranded copper conductors

Key specifications

• Connector type: RJ45 plug, 8P8C
• Performance: Cat.6A (IEC)
• Shielding: Unshielded (UTP)
• Termination: Field-terminable, tool-free
• Wiring standard: T568B
• Conductor compatibility: AWG 24/1 - AWG 23/1 solid, AWG 27/7 - AWG 23/7 stranded
• Data rate: Up to 10 Gigabit Ethernet
• PoE support: PoE, PoE+, 4PPoE (IEEE 802.3bt Type 3/4)
• Standard compliance: IEC 60603-7-51
• Series: Telegärtner UFP8

Recommendations

For reliable high-speed connections in unshielded Cat.6A installations, pair with Telegärtner UFP8-compatible cables and strain relief boots.
