Telegärtner adaptador BNC de encastrar conector fêmea-conector fêmea 50 Ohm montagem em painel J01004A1333

With a frequency range extending to 4 GHz and a VSWR of ≤1.2 up to 1 GHz, this Telegärtner BNC bulkhead adapter delivers exceptional signal integrity for professional RF applications. The female-to-female design provides a reliable through-panel connection, making it ideal for instrumentation, broadcast, and telecommunications systems where performance cannot be compromised.

Overview

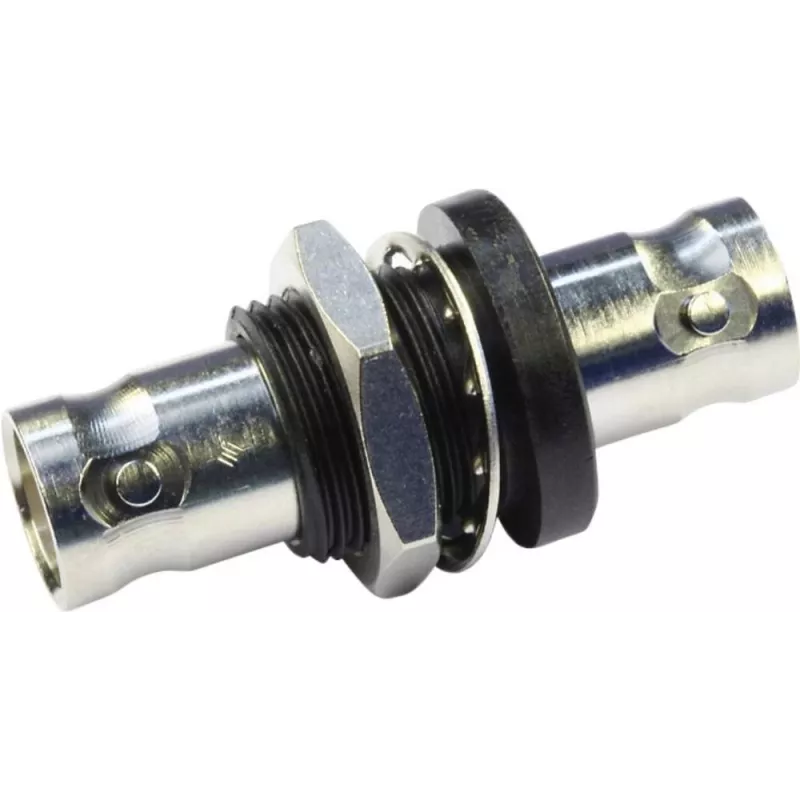

The J01004A1333 is a precision BNC jack-to-jack adapter engineered for bulkhead mounting. It features a 50 Ohm impedance, ensuring seamless integration into standard RF circuits. The nickel-plated brass housing offers durability and corrosion resistance, while gold-plated contacts provide low contact resistance and long-term reliability. PTFE insulation guarantees stable electrical properties across a wide temperature range from -55 °C to +155 °C.

What stands out

• DC to 4 GHz frequency range for high-bandwidth applications
• Low VSWR ≤1.2 up to 1 GHz for minimal signal reflection
• Gold-plated center and outer contacts ensure excellent conductivity
• Robust nickel-plated brass body withstands harsh environments
• PTFE insulator maintains performance at extreme temperatures
• Meets IEC 61169-8 international standards

Technical details

• Connector type: BNC jack to BNC jack
• Impedance: 50 Ohm
• Mounting: Bulkhead/panel mount
• Frequency range: DC – 4 GHz
• Voltage rating: 500 V peak
• Dielectric withstanding voltage: 1500 Veff
• Insulation resistance: ≥5 GΩ
• Center contact resistance: ≤1.5 mΩ
• Outer contact resistance: ≤1.0 mΩ
• Mating cycles: ≥500
• Operating temperature: -55 °C to +155 °C
• Housing material: Brass, nickel-plated
• Contact material: Brass, gold-plated
• Insulator material: PTFE
• Standard compliance: IEC 61169-8

Our verdict

For engineers and technicians requiring a dependable bulkhead BNC connection, the Telegärtner J01004A1333 stands out with its exceptional electrical performance and rugged construction. Its wide operating temperature range and high mating cycle count ensure long service life in demanding environments.
