Telegärtner Adaptador coaxial de RF ficha BNC para conector fêmea SMA, 50 Ohm, reto, J01008A0017

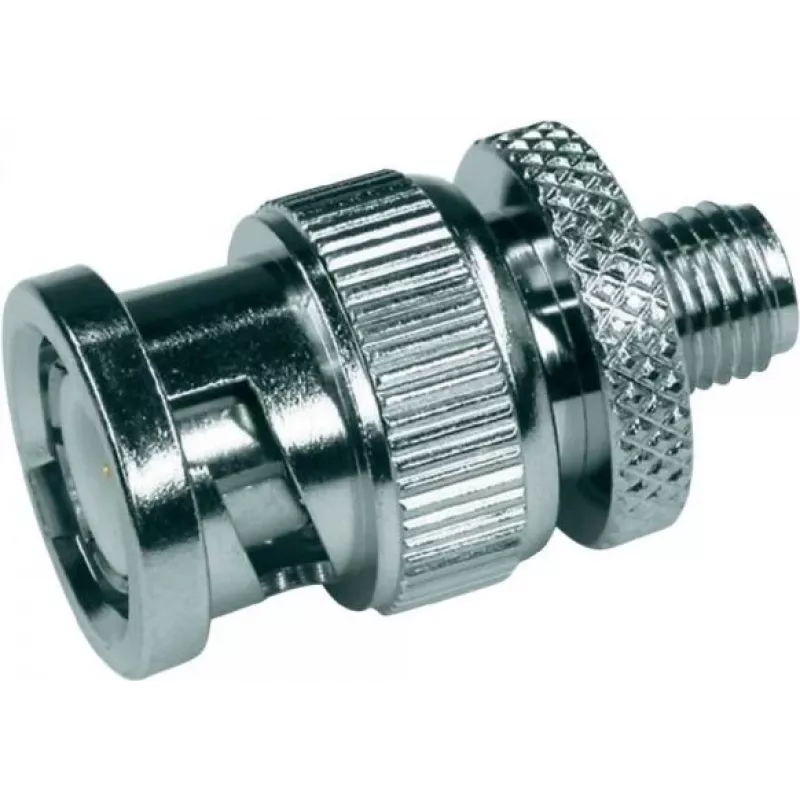

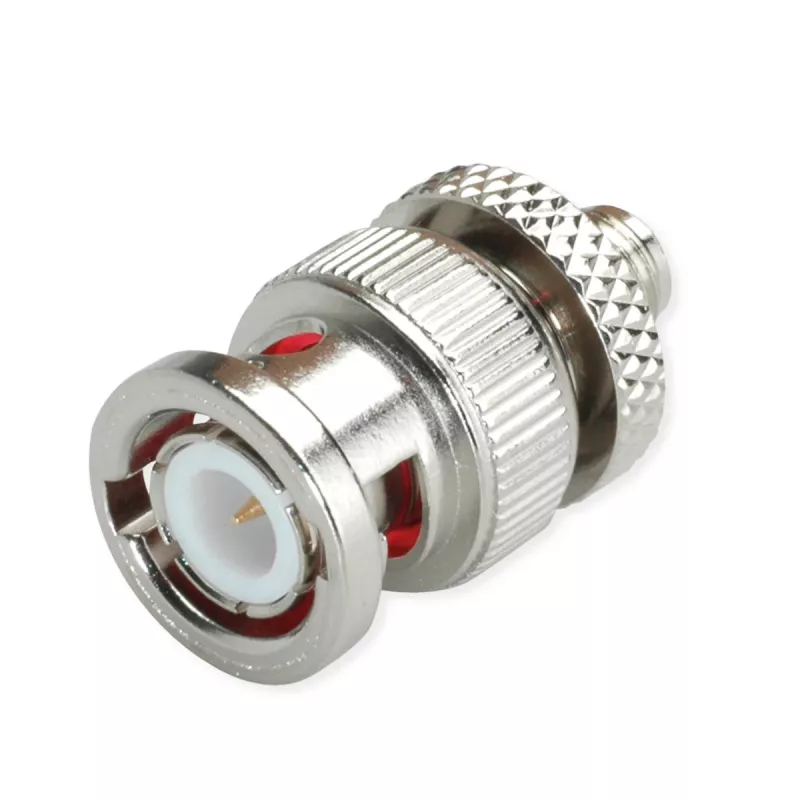

Connecting BNC and SMA interfaces often forces you to choose between signal quality and mechanical reliability. This Telegärtner adapter solves that by providing a precise 50-ohm transition between a BNC male and an SMA female connector, maintaining a low VSWR up to 4 GHz.

Who is it for

RF technicians, lab engineers, and radio amateurs who need to adapt test equipment, antennas, or coaxial assemblies without introducing impedance mismatches. It is also suitable for industrial and telecommunications environments where stable, repeatable connections are required.

Main features

• BNC male to SMA female, straight adapter body
• 50 Ω impedance, DC to 4 GHz frequency range
• VSWR ≤ 1.3 at 3 GHz for minimal signal reflection
• Nickel-plated brass body, gold-plated brass contacts
• PTFE insulator for low loss and high temperature stability
• Operating temperature range: -40 °C to +85 °C
• Mating cycles: ≥ 500

Specifications

• Connector A: BNC male
• Connector B: SMA female
• Impedance: 50 Ω
• Frequency range: DC to 4 GHz
• VSWR: ≤ 1.3 at 3 GHz
• Body material: Brass, nickel plated
• Contact material: Brass, gold plated
• Insulator material: PTFE
• Dielectric withstanding voltage: 1500 Veff
• Insulation resistance: ≥ 5 GΩ
• Operating temperature: -40 °C to +85 °C
• Mating cycles: ≥ 500

Tips

Use this adapter for temporary connections or test setups where frequent mating is expected. The gold-plated contacts ensure low contact resistance and long-term reliability. For permanent installations, consider using a dedicated cable assembly to minimize insertion loss.
