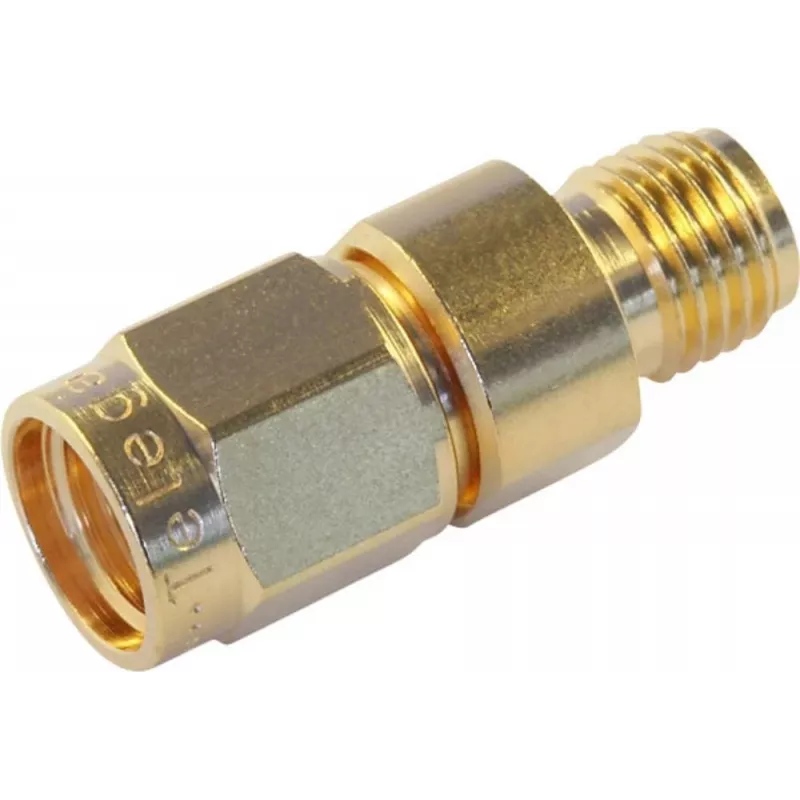

Telegärtner adaptador SMA conector fêmea para SMA reverse conector macho, 50 Ohm, DC-6 GHz, latão dourado J01155R0095

This Telegärtner coaxial adapter bridges standard SMA and reverse-polarity SMA interfaces, making it a practical choice for RF setups that mix conventional and RP-SMA components. The 50-ohm impedance and DC to 6 GHz frequency range support a wide variety of signal applications, while the gold-plated brass body and beryllium copper center contact ensure reliable, low-loss connections.

Highlights

• SMA jack to SMA reverse plug configuration
• 50 ohm impedance, DC to 6 GHz
• Gold-plated brass body and contacts
• PTFE insulator for stable performance
• Low VSWR of ≤1.25 across the band

In daily use

The screw-on coupling provides a secure mechanical connection, and the adapter withstands at least 500 mating cycles. Its operating temperature range of -65 °C to +165 °C allows use in demanding environments, from outdoor antenna installations to laboratory test benches.

Full specifications

• Connector 1: SMA jack (female)
• Connector 2: SMA reverse plug (male)
• Impedance: 50 Ω
• Frequency range: DC - 6 GHz
• VSWR: ≤ 1.25
• Dielectric withstanding voltage: 750 Veff
• Insulation resistance: ≥ 5 GΩ
• Center contact resistance: ≤ 2.5 mΩ
• Outer contact resistance: ≤ 2.5 mΩ
• Body material: brass, gold-plated
• Center contact material: brass / beryllium copper, gold-plated
• Insulator material: PTFE
• Operating temperature: -65 °C to +165 °C
• Mating cycles: ≥ 500
• Coupling mechanism: screw-on

Final note

A robust, precision-machined adapter for integrating RP-SMA devices into standard SMA systems.
