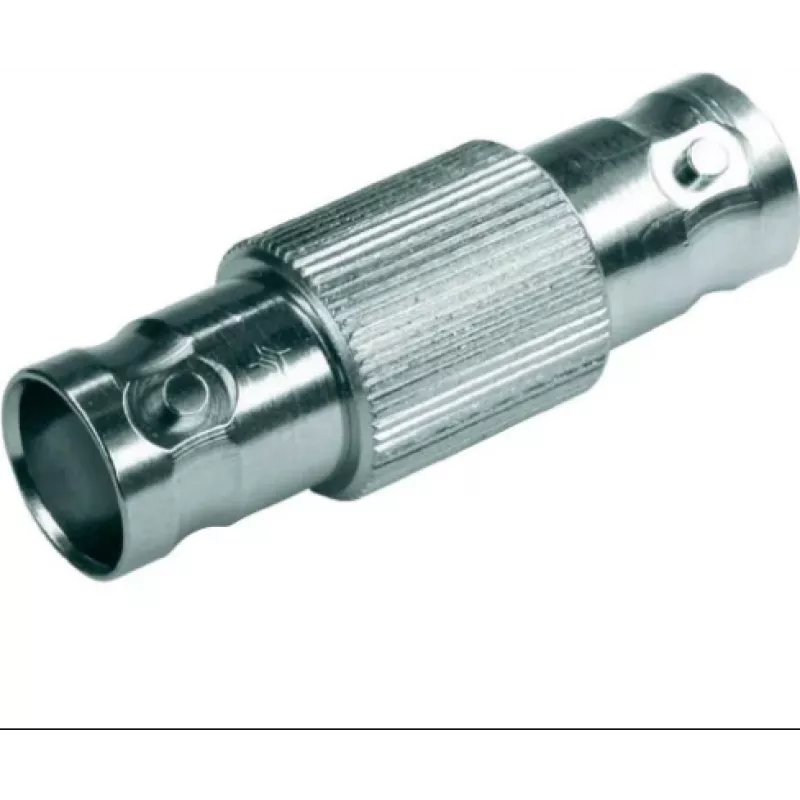

TELEGÄRTNER BNC conector fêmea para BNC conector fêmea adaptador coaxial, 50 Ohm, latão niquelado, manga reta J01004A0618

RF technicians and test engineers use this inline barrel adapter to join two BNC cables terminated with male plugs. The straight-through design maintains a 50 Ohm impedance path across DC to 4 GHz, making it suitable for bench setups, instrumentation racks, and data communication links where a reliable coaxial junction is required.

Key specifications

• Connector 1: BNC female
• Connector 2: BNC female
• Impedance: 50 Ω
• Body material: Brass with nickel plating
• Contact plating: Gold
• Insulator: PTFE
• Frequency range: DC – 4 GHz
• Voltage rating: 500 V RMS
• Durability: ≥ 500 mating cycles
• Operating temperature: -40 °C to +85 °C
• Mounting type: Free hanging / inline

Why choose it

The nickel-plated brass body resists corrosion while gold-plated contacts ensure low contact resistance and long-term signal integrity. PTFE insulation provides stable dielectric performance across the full temperature range.

Ideal use cases

• Extending BNC cable runs in RF test benches
• Joining coaxial segments in broadcast or CCTV systems
• Creating inline connections in data communication networks

Good to know

This adapter is free hanging and does not require panel mounting. It is compliant with RoHS and REACH directives.
