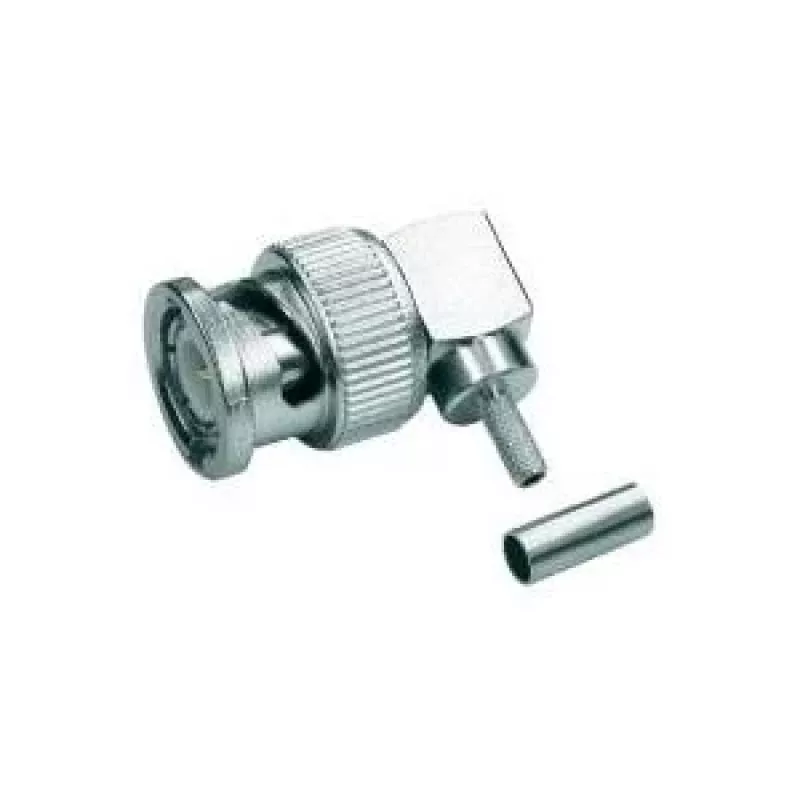

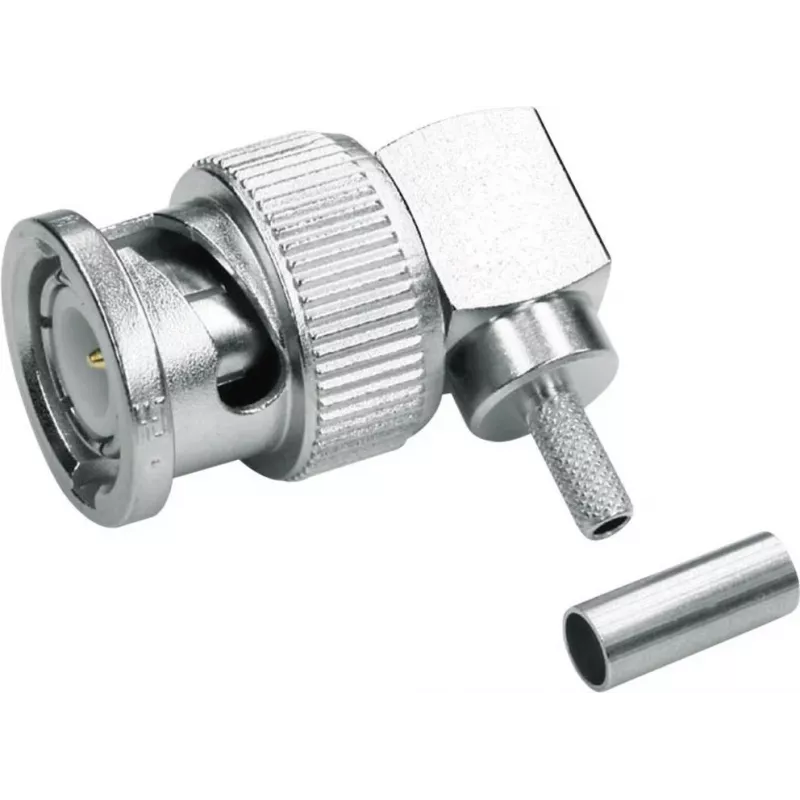

Telegärtner Conector BNC macho angular de crimpagem 50 Ohm para RG 316/U, RG 174 A/U, RG 188 A/U (J01000A0010)

When space is tight and a straight BNC connector would force an awkward cable bend, this right-angle plug solves the routing problem. It lets the cable exit at 90 degrees, keeping the connection compact and strain-free in dense equipment racks or inside devices.

Who is it for

RF technicians, broadcast engineers, and electronics assemblers who terminate small-diameter 50-ohm coax cables and need a reliable, space-saving BNC connection.

Main features

• Right-angle BNC plug (male) with 50-ohm impedance
• Crimp termination for outer conductor, solder for inner conductor
• Compatible with RG 316/U, RG 174 A/U, and RG 188 A/U cables
• Gold-plated centre contact and nickel-plated brass body for corrosion resistance
• PTFE insulator supports a wide temperature range from -55 °C to +155 °C
• Rated for DC to 4 GHz and 500 V RMS

Specifications

• Connector type: BNC plug (male)
• Body style: right angle
• Impedance: 50 ohm
• Termination: crimp (outer), solder (inner)
• Cable group: G07 (RG 316/U, RG 174 A/U, RG 188 A/U)
• Frequency range: DC to 4 GHz
• Voltage rating: 500 V RMS
• Contact plating: gold (centre), nickel (body)
• Insulator: PTFE
• Operating temperature: -55 °C to +155 °C
• Dielectric withstanding voltage: 1500 V RMS
• Contact resistance: ≤ 1.5 mΩ inner, ≤ 1 mΩ outer
• Insulation resistance: ≥ 5 GΩ
• Durability: ≥ 500 mating cycles

Tips

Use a proper crimp tool for the ferrule to ensure a secure connection. Strip the cable according to the connector's dimensions and solder the centre pin before crimping the braid.
