Conector coaxial DeLOCK 65859

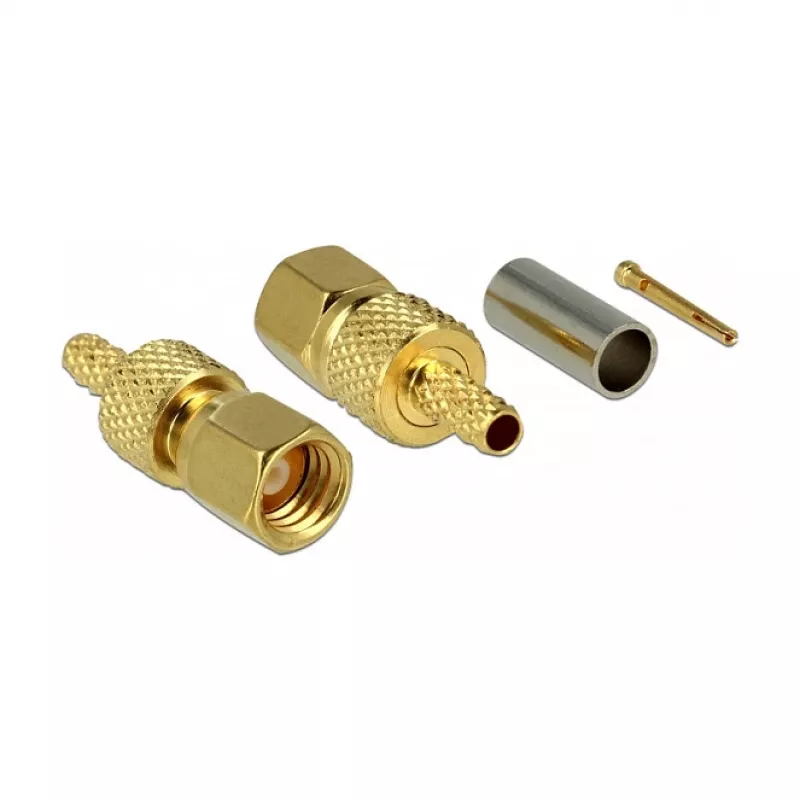

The DeLOCK 65859 coaxial connector is a single SMC-type plug with 50 Ω impedance and a 6 mm outer diameter. With a depth of 18.8 mm and gold-coloured finish, it is intended for reliable radio-frequency connections and component linking in cable interface and gender adapter applications.

Advantages

The SMC design provides a compact, threaded connection with consistent 50 Ω impedance suitable for RF signals. The 6 mm outer diameter and 18.8 mm depth make the connector compatible with equipment that accepts SMC interfaces. The gold-coloured finish improves corrosion resistance and contact reliability.

Suitable for

• Connecting radio-frequency components and modules
• Cable interface and gender adapter applications
• Repair or replacement of SMC-type RF connectors

Key specifications

• Type: SMC plug
• Impedance: 50 Ω
• Outer diameter: 6 mm
• Depth: 18.8 mm
• Colour/finish: Gold
• Sold: individually
• Brand: DELOCK, MPN: 65859, EAN: 4043619658596

How to use

Align the SMC connector with the mating jack and thread or press into place according to the receiving device's SMC interface specification. Ensure secure mechanical connection and proper seating to maintain the 50 Ω impedance and optimal RF performance. Use appropriate torque if specified by the equipment manufacturer.

Recommendations

Handle the connector by the body to avoid contaminating the contact surfaces; inspect contacts before installation and avoid excessive force when mating to prevent damage to the threaded interface.
