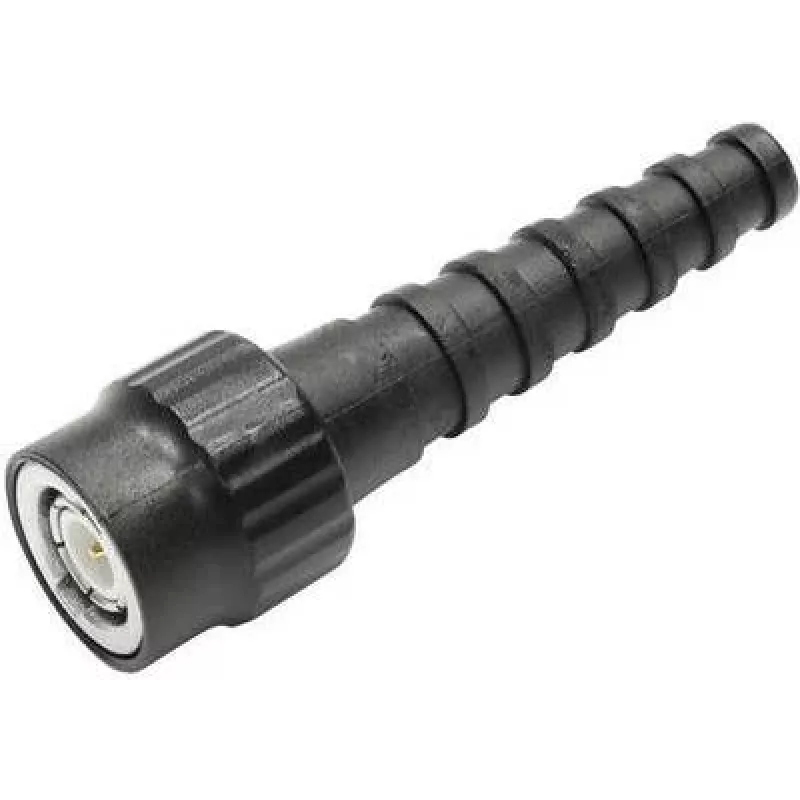

Telegärtner Conector BNC macho de crimpagem, isolado, preto, para grupo de cabos G01 (RG-58C/U, Belden 7806A, 9907, KX 15, LMR-195, WCX195) J01000A0014

The Telegärtner J01000A0014 is a BNC male crimp connector engineered for the G01 cable group, providing a secure and reliable connection for RG-58C/U and equivalent cables. Its black insulated body offers protection and a professional finish, while the crimp termination ensures a durable, low-loss link for RF applications up to 4 GHz.

Highlights

• 50 Ohm impedance with gold-plated center contact and nickel-plated body for excellent conductivity and corrosion resistance.
• PTFE dielectric supports a wide frequency range from DC to 4 GHz with VSWR ≤ 1.3 at 3 GHz.
• Crimp termination for quick, reliable assembly without soldering.
• Black insulation provides electrical isolation and strain relief.
• Compatible with RG-58C/U, Belden 7806A, Belden 9907, KX 15, LMR-195, and WCX195 cables.

In daily use

Designed for video, RF, test and measurement, and data applications, this connector maintains stable performance across temperatures from -40°C to +85°C. Its 500 mating cycles ensure long-term reliability in field installations and lab environments. The crimp design simplifies termination, reducing installation time while providing a consistent, repeatable connection.

Full specifications

• Connector Series: BNC
• Connector Type: Plug (Male)
• Impedance: 50 Ohm
• Termination Method: Crimp
• Cable Group: G01
• Compatible Cables: RG-58C/U, Belden 7806A, Belden 9907, KX 15, LMR-195, WCX195
• Insulation: Yes (Black)
• Body Plating: Nickel
• Contact Plating: Gold
• Dielectric Material: PTFE
• Frequency Range: DC to 4 GHz
• Voltage Rating: 500 V (RMS)
• VSWR: ≤ 1.3 at 3 GHz
• Operating Temperature: -40°C to +85°C
• Mating Cycles: 500
• Standard: IEC 61169-8
• Mounting Type: Cable Mount

Final note

Telegärtner precision engineering ensures consistent performance and compatibility across the G01 cable family.
