Conector coaxial DeLOCK 89709

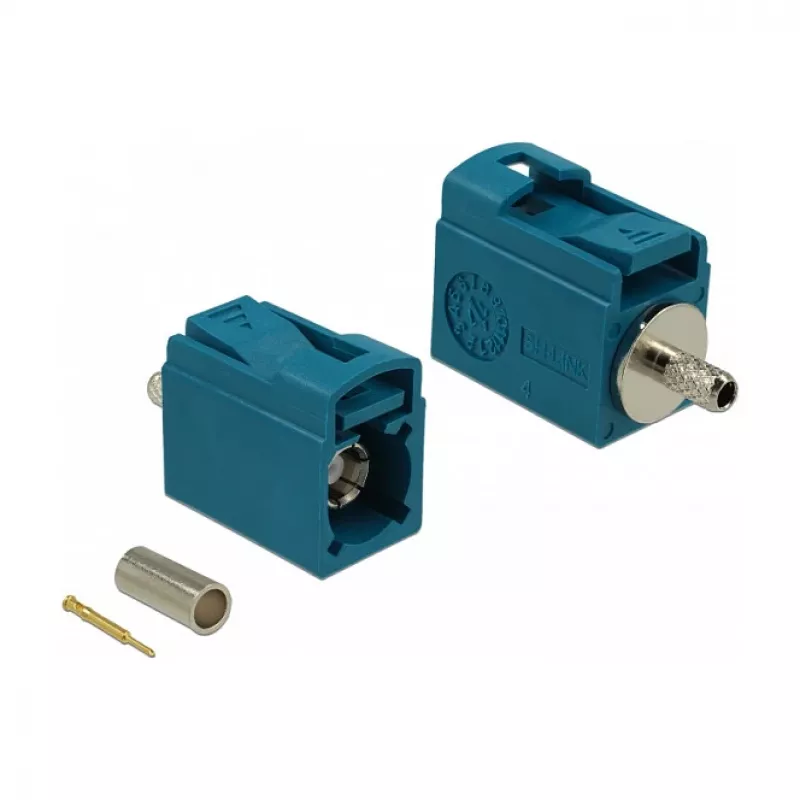

The DeLOCK 89709 coaxial connector is a compact FAKRA Z male connector with gold-plated contacts designed for reliable radio frequency connections. With dimensions of 13.8 mm width, 21 mm depth and 9.5 mm height and a blue stainless-steel appearance, this connector is supplied in a polybag and intended for use where strong signal integrity and space-saving form factor are required.

Advantages

Gold-plated contacts improve conductivity and reduce corrosion, while the FAKRA Z interface ensures compatibility with RF systems that use this standard. The small footprint and robust stainless-steel construction provide mechanical durability for installations in confined spaces. The packed polybag protects the connector during storage and transport.

Suitable for

Key specifications

How to use

Align the FAKRA Z male connector with the matching female FAKRA Z socket and press firmly until it clicks into place to ensure a secure RF connection. For disconnection, press any release mechanism on the mating housing (if present) and pull straight out. Verify correct mating and that gold-plated contacts are clean before assembly to maintain signal quality.

Recommendations

Handle the connector by its body to avoid contaminating the contacts; store in the supplied polybag until installation and avoid excessive mechanical stress or bending of the connected cable to preserve contact integrity.
