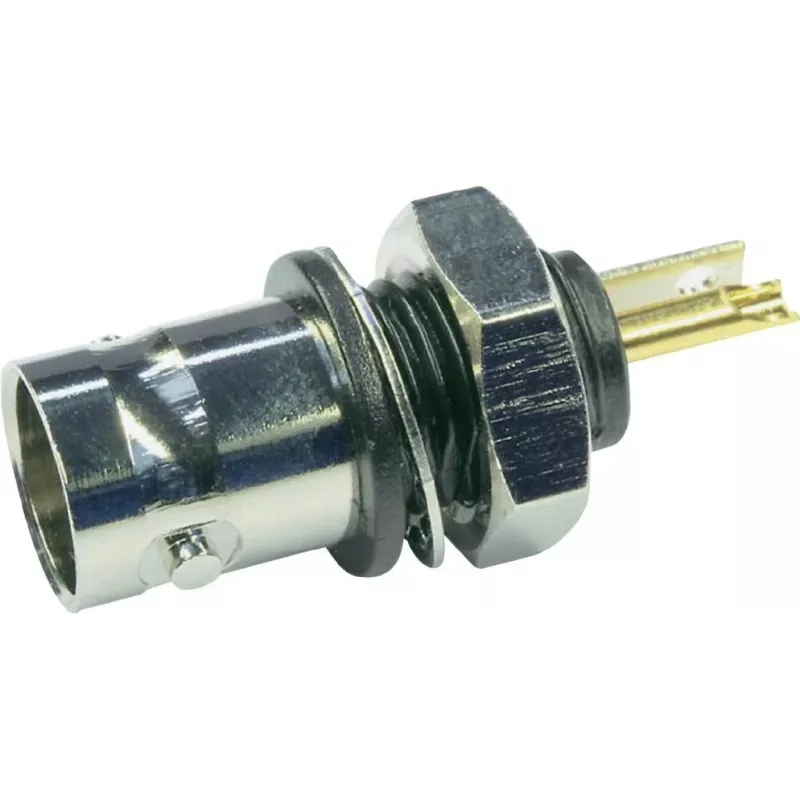

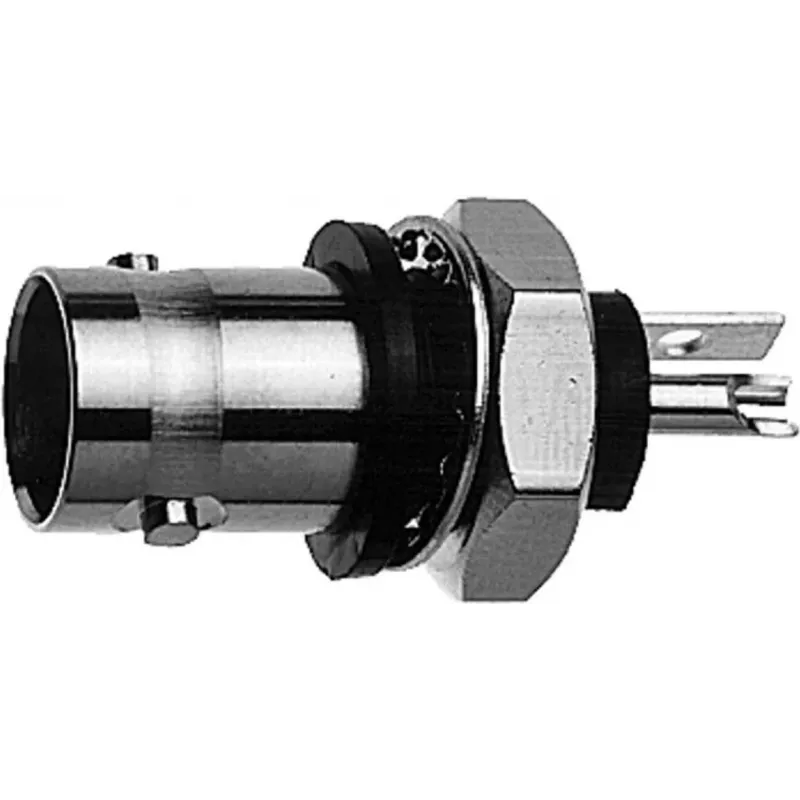

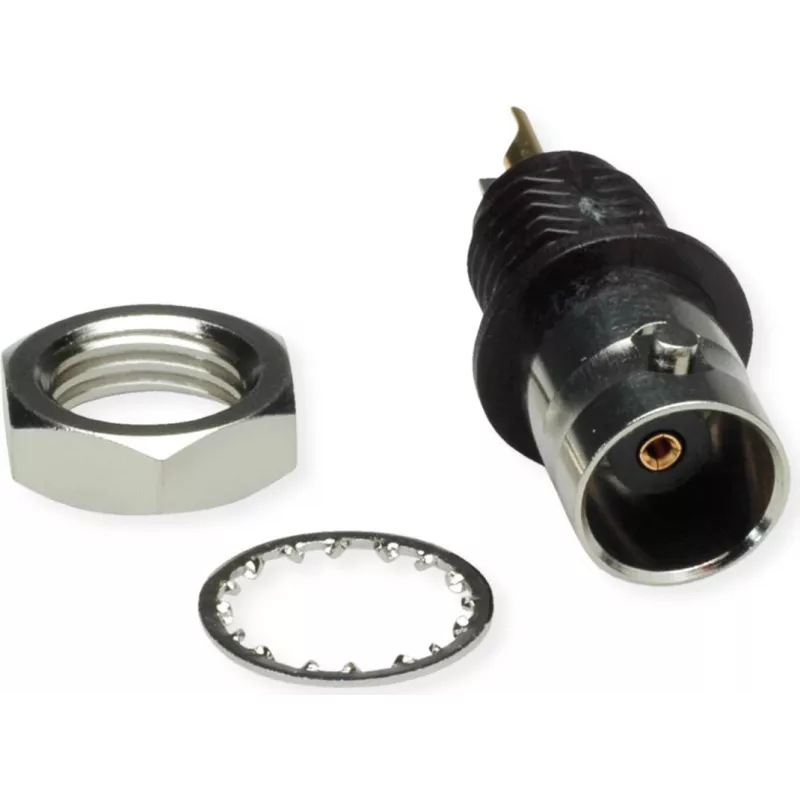

Telegärtner conector fêmea BNC de encastrar, isolado 50 Ohm, flange isolante preto, contactos dourados, 4 GHz, 1 unid.

This BNC bulkhead jack stands out with its isolated panel mounting and black insulating flange, providing electrical separation from the chassis while maintaining a secure 50-ohm connection. The gold-plated center contact and nickel-plated brass body ensure reliable signal integrity up to 4 GHz.

Highlights

• Isolated bulkhead design with black insulating flange
• 50 Ohm impedance for RF applications
• Gold-plated center contact for low resistance
• Wide frequency range DC to 4 GHz
• PTFE insulator for high-temperature performance

In daily use

Ideal for panel-mounted coaxial connections in test equipment, communications systems, and industrial electronics. The isolation flange prevents ground loops and allows floating shield configurations. With a mounting hole diameter of 12.7 mm and maximum panel thickness of 3.2 mm, it fits standard bulkhead cutouts. The connector withstands over 500 mating cycles, ensuring long service life.

Full specifications

• Connector Type: BNC Jack (Female)
• Impedance: 50 Ohm
• Mounting Type: Bulkhead / Panel Mount, Isolated
• Flange Color: Black
• Contact Plating: Gold over Nickel
• Body Plating: Nickel
• Body Material: Brass
• Insulator Material: PTFE
• Frequency Range: DC to 4 GHz
• VSWR: ≤ 1.2 @ 3 GHz
• Dielectric Withstanding Voltage: 1500 Veff
• Insulation Resistance: ≥ 5 GΩ
• Center Contact Resistance: ≤ 1.5 mΩ
• Outer Contact Resistance: ≤ 1.0 mΩ
• Operating Temperature Range: -55 °C to +155 °C
• Mating Cycles: ≥ 500
• Mounting Hole Diameter: 12.7 mm (0.5 inch)
• Max Panel Thickness: 3.2 mm

Final note

Telegärtner quality with precise RF performance for professional installations.
