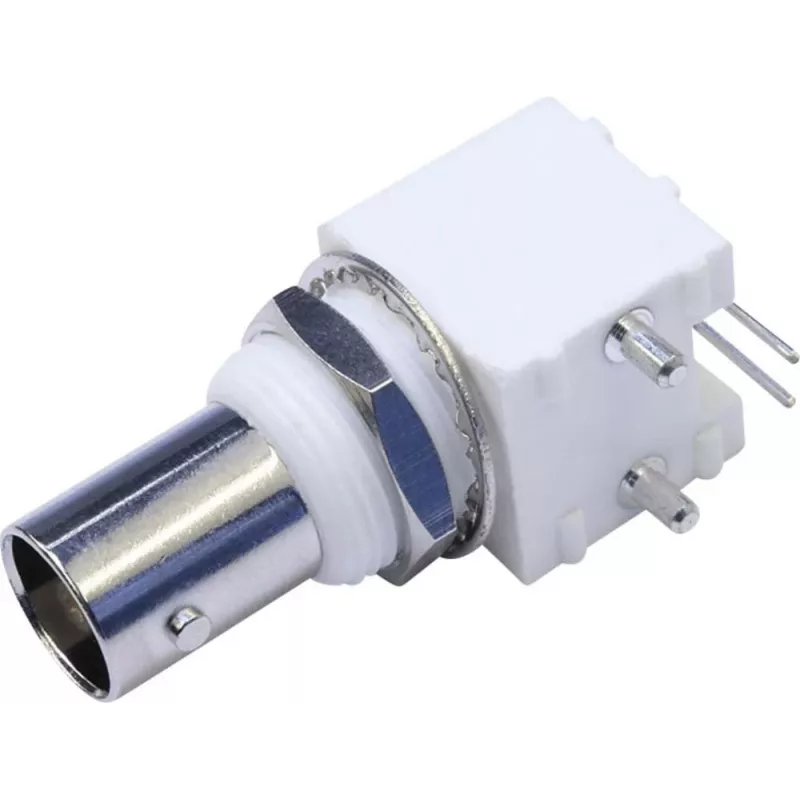

Telegärtner Conector fêmea BNC para PCB, 50 Ohm, montagem isolada, pino de solda 90°, Z04/Z34, a=16, b=35 J01001A0038

RF engineers and PCB designers use this BNC jack to terminate 50-ohm coaxial connections directly on printed circuit boards. The right-angle solder pin and insulated mounting with fixing pins provide stable mechanical anchoring without additional screws, making it suitable for dense board layouts in test equipment, instrumentation, and communications modules.

Key specifications

• Connector type: BNC jack (female)
• Impedance: 50 Ohm
• Mounting type: PCB mount, insulated
• Termination style: Solder pin, right-angle (90°)
• Mounting features: Fixing pins, without mounting screws
• Telegärtner series/type: Z04/Z34
• Dimension a: 16 mm
• Dimension b: 35 mm
• Quantity per pack: 1 piece

Why choose it

Telegärtner's Z04/Z34 series is engineered for reliable RF performance in professional applications. The insulated mounting isolates the connector body from the PCB ground plane, preventing unwanted ground loops and ensuring consistent impedance matching. The integrated fixing pins simplify assembly and provide secure retention during soldering and operation.

Ideal use cases

• RF test and measurement equipment
• Broadcast and video signal routing
• Telecommunications infrastructure
• Industrial control systems with coaxial interfaces

Good to know

The right-angle solder pin allows low-profile board mounting, saving vertical space. The connector is supplied as a single piece, ready for manual or automated soldering processes.
