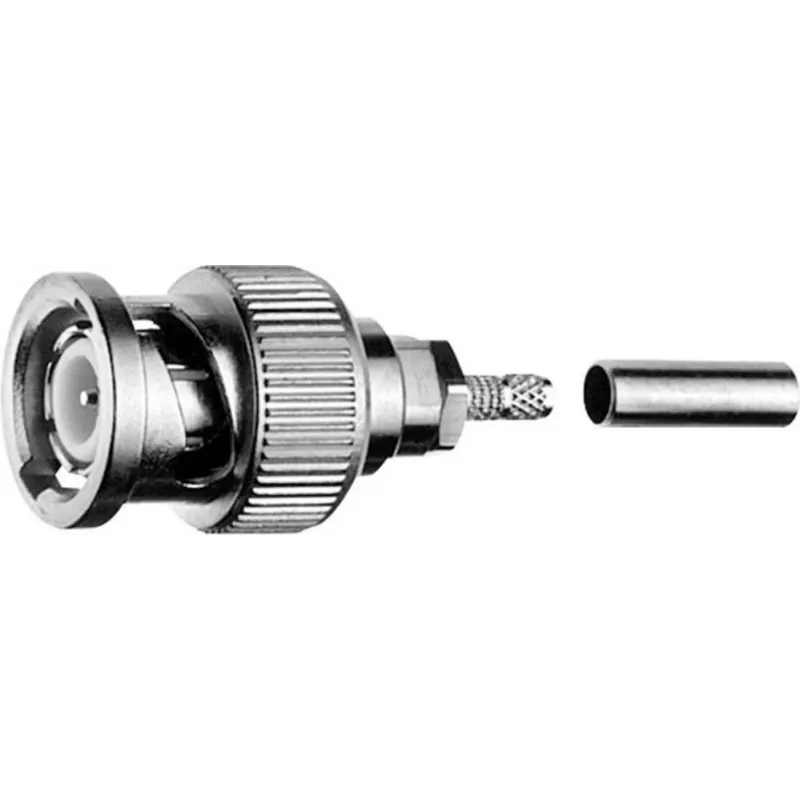

Telegärtner Conector macho de cabo BNC Crimp G08 50 Ohm, crimp/crimp, Professional, A2914, G08 (RD-316) (J01000B0022)

When building or repairing coaxial connections in RF systems, achieving a reliable, low-loss termination is critical. The Telegärtner BNC Cable Plug Crimp G08 50 Ohm solves this by providing a professional-grade connector designed for crimp attachment to common 50-ohm coaxial cables such as RG-316, RG-174, and RG-188. Its precision-machined construction and gold-plated center contact ensure stable impedance and minimal signal degradation up to 4 GHz.

Who is it for

This connector is intended for RF technicians, network engineers, and electronics professionals who need to terminate coaxial cables in telecommunications, broadcast, test and measurement, or industrial applications. It is also suitable for advanced hobbyists working on high-frequency projects.

Main features

• BNC male (plug) connector with 50 Ohm impedance
• Crimp termination for both inner and outer conductors
• Compatible with cable group G08: RG-316, RG-174, RG-188A/U, RG-179B/U, RG-187A/U, RG-179A/U, RG-188/U, RG-179/U, RG-174/U
• Frequency range DC to 4 GHz with VSWR ≤ 1.25
• Gold-plated CuBe2 center contact and nickel-plated brass body for durability and corrosion resistance
• PTFE dielectric for stable performance across temperature range -40 °C to +85 °C
• High mating cycle life (≥ 500 cycles)

Specifications

• Connector type: BNC plug (male)
• Impedance: 50 Ohm
• Termination method: crimp (inner & outer conductor)
• Cable group: G08
• Frequency range: DC to 4 GHz
• VSWR: ≤ 1.25 (DC to 4 GHz)
• Insertion loss: ≤ 0.1 dB (DC to 4 GHz)
• Dielectric strength: 1.5 kVeff
• Insulation resistance: ≥ 5 GΩ
• Inner contact resistance: ≤ 1.5 mΩ
• Outer contact resistance: ≤ 1 mΩ
• Operating voltage: 500 Veff
• Operating temperature range: -40 °C to +85 °C
• Mating cycles: ≥ 500
• Center contact material: gold-plated CuBe2
• Body material: nickel-plated brass (CuZn39Pb3)
• Dielectric material: PTFE
• Inner conductor crimp size: 1.0 mm
• Outer conductor crimp size: 5.4 mm

Tips

Use the correct crimp tool and dies for the specified crimp sizes to ensure a secure connection. For best performance, strip the cable according to the connector's recommended dimensions and avoid excessive heat during soldering if applicable. Always verify the cable type matches the G08 group before installation.
