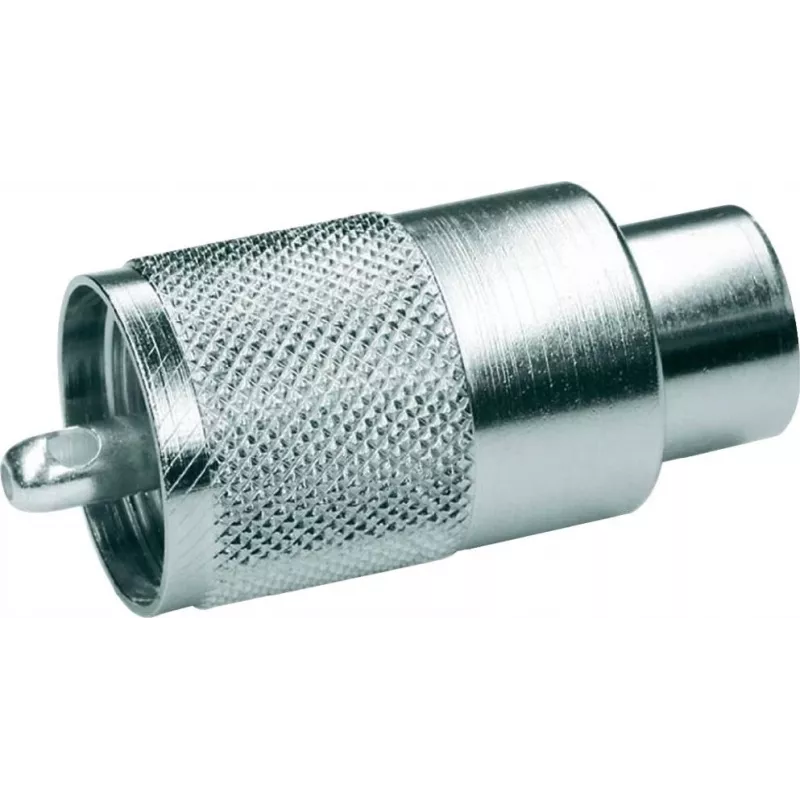

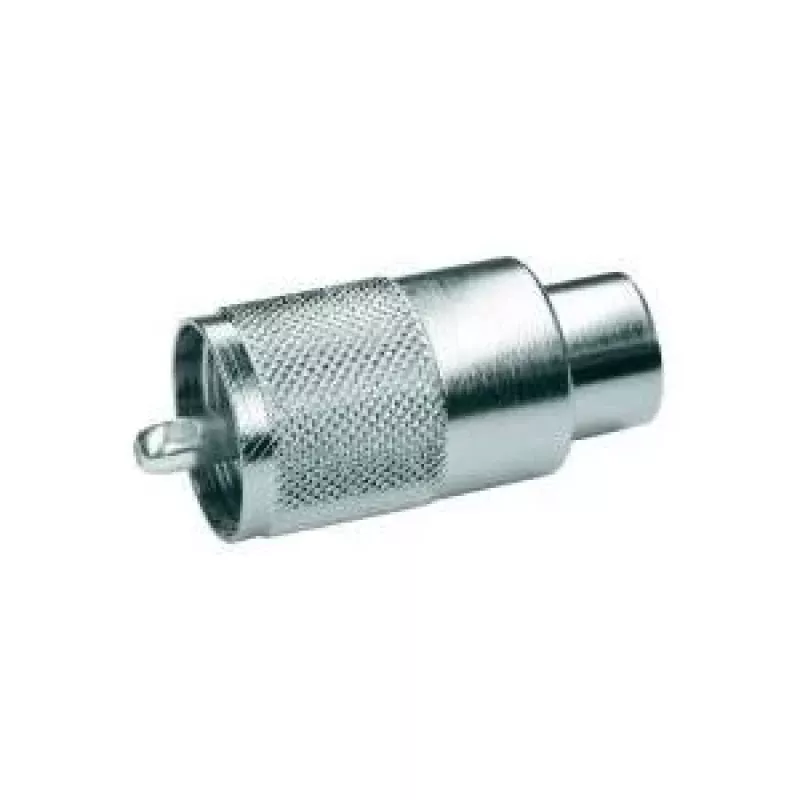

Telegärtner Conector macho UHF PL259 para RG-213/U, isolamento PTFE, latão niquelado, pack de 5 J01040B0602

For radio amateurs and RF technicians terminating RG-213/U coaxial cable, the Telegärtner UHF cable plug (PL259) provides a reliable 50-ohm connection. This pack of 5 connectors is suited for antenna feedlines, transceiver setups, and test equipment where a robust UHF interface is required.

Key specifications

• Connector type: UHF (PL259), male
• Compatible cable: RG-213/U
• Impedance: 50 Ohm
• Insulation: PTFE
• Body material: Brass, nickel-plated
• Center contact: Brass, silver-plated
• Frequency range: DC to 300 MHz
• Voltage rating: 500 V RMS
• Temperature range: -65°C to +165°C
• Pack size: 5 pieces

Why choose it

The PTFE insulation offers high temperature resistance and low loss, while the nickel-plated brass body provides corrosion resistance and durability. The silver-plated center contact ensures excellent conductivity. Suitable for both indoor and outdoor use within the specified temperature range.

Ideal use cases

• Amateur radio antenna connections
• RF test and measurement setups
• Coaxial cable terminations for RG-213/U

Good to know

These connectors require soldering of the center pin and clamping of the braid. The pack of 5 is convenient for multiple installations or replacements.
