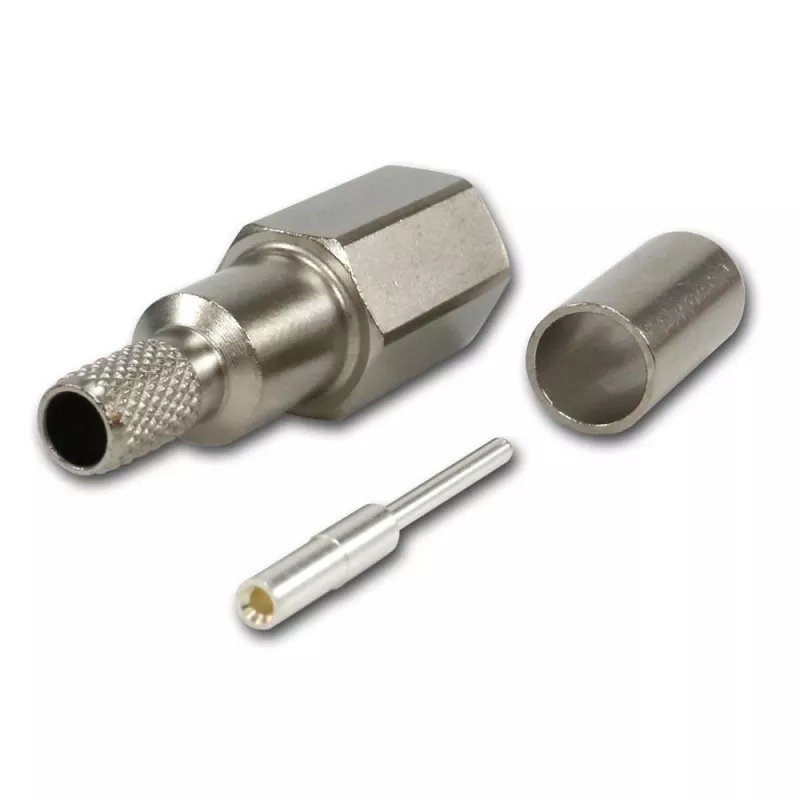

Telegärtner Ficha FME de crimpar/crimpar para RG-58 C/U, 50 Ohm, ouro/níquel J01700A0006Z

With a frequency range up to 3 GHz and VSWR ≤ 1.3 at 2.5 GHz, this FME plug delivers reliable RF performance for coaxial connections. The crimp/crimp termination ensures a secure fit on RG-58 C/U cable.

Overview

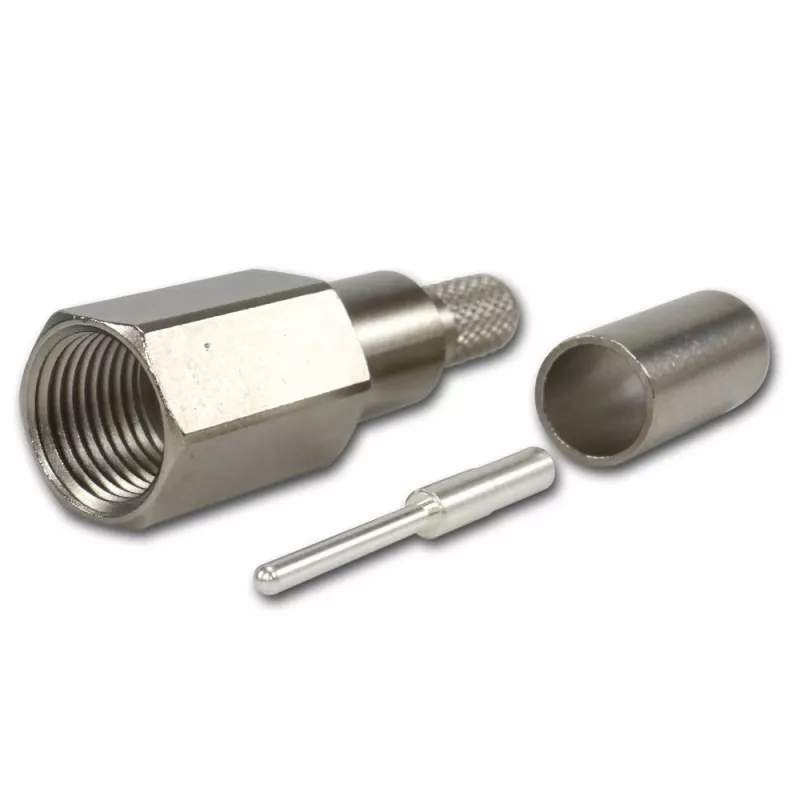

The Telegärtner J01700A0006Z is a straight FME plug (male) designed for 50-ohm coaxial cables. It is compatible with RG-58 C/U, RG-58 A/U, RG-141 A/U, and LMR-195 cables, terminated by crimping both inner and outer conductors.

What stands out

• Gold-plated center contact for corrosion resistance and low contact resistance (≤ 1.5 mΩ).
• Nickel-plated brass body for durability and conductivity.
• PTFE insulator for high-temperature stability.
• Operating temperature range from -40 °C to +85 °C.
• Designed for at least 500 mating cycles.

Technical details

• Impedance: 50 Ohm
• Frequency range: 0 – 3 GHz
• VSWR: ≤ 1.3 @ 2.5 GHz
• Dielectric withstanding voltage: 1 kVeff
• Insulation resistance: ≥ 5 GΩ
• Center contact resistance: ≤ 1.5 mΩ
• Outer contact resistance: ≤ 1 mΩ
• Body material: Brass (CuZn39Pb3), nickel-plated
• Center contact plating: Gold
• Insulator material: PTFE

Our verdict

A robust, high-performance FME connector for professional RF applications where reliable crimp termination and low signal loss are critical.
