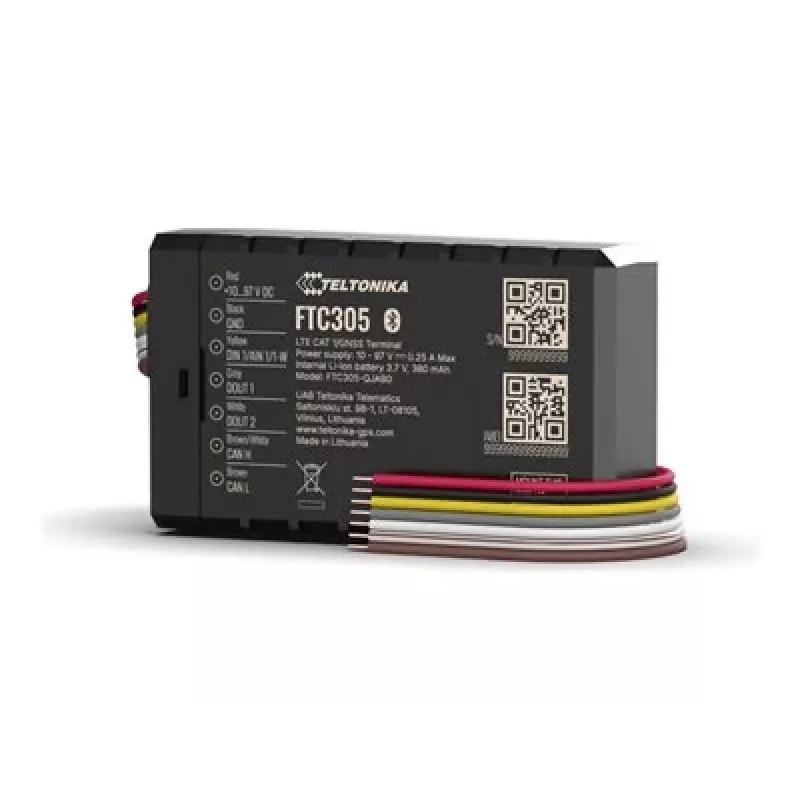

Teltonika FTC305 rastreador compacto de e-mobilidade 4G LTE Cat 1 com leitura de dados CAN

The Teltonika FTC305 stands out as a purpose-built e-mobility tracker, seamlessly integrating 4G LTE Cat 1 connectivity with CAN bus data reading for electric scooters, bikes, and micromobility fleets. Unlike generic GPS trackers, it taps directly into vehicle CAN networks (J1939, J1708, FMS) to capture battery state, speed, and diagnostics—delivering actionable insights without extra hardware. Its compact IP41-rated housing, internal antennas, and wide 10–30 V input make installation straightforward even in tight e-scooter compartments.

Highlights

• 4G LTE Cat 1 with 2G fallback for reliable global coverage
• Multi-constellation GNSS: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
• CAN bus support for J1939, J1708, and FMS protocols
• Internal 170 mAh Li-Ion backup battery for power-loss alerts
• Bluetooth 4.0 LE for wireless configuration and firmware updates
• 128 MB flash memory stores up to 245,760 records
• Wide operating temperature range from -40 °C to +85 °C

In daily use

Fleet operators gain real-time visibility into e-scooter location, battery health, and rider behavior. The built-in accelerometer detects harsh acceleration, braking, and crashes, while the single digital input can monitor ignition or tamper events. Data is buffered locally if cellular coverage drops, then uploaded automatically when connectivity returns. The micro-USB port allows local configuration, and FOTA updates keep firmware current without physical access.

Full specifications

• Brand: Teltonika
• Model: FTC305
• MPN: FTC305STAC01
• Cellular technology: 4G LTE Cat 1, 2G GSM
• GNSS support: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
• CAN bus protocols: J1939, J1708, FMS
• Power supply voltage: 10–30 V DC
• Internal battery: 170 mAh Li-Ion (3.7 V)
• Digital inputs: 1
• Analog inputs: 1
• Digital outputs: 1
• Internal memory: 128 MB Flash (up to 245,760 records)
• Operating temperature: -40 °C to +85 °C
• Ingress protection: IP41
• Accelerometer: Yes (internal)
• Bluetooth: 4.0 LE
• SIM card type: Micro-SIM
• Antennas: Internal GNSS, internal LTE
• USB interface: Micro-USB 2.0
• GNSS accuracy: < 3 m CEP
• Firmware update: FOTA (Firmware Over The Air)
• Product type: E-mobility tracker
• Tracking function: Yes
• Geotagging: Yes
• Rechargeable battery: Yes
• Battery technology: Lithium-Ion (Li-Ion)
• Battery capacity: 170 mAh
• Battery voltage: 3.7 V
• USB connector type: Micro-USB
• USB version: 2.0
• SIM card slot: Yes
• SIM card capability: Single SIM
• LED indicators: Yes
• Housing material: Plastic
• Protection features: Dust resistant, splash resistant
• Certification: CE, E-mark (implied for e-mobility)

Final note

For e-mobility fleets demanding deep vehicle integration and rugged reliability, the Teltonika FTC305 delivers CAN-level insights in a compact, easy-to-install tracker. Its blend of LTE Cat 1 efficiency, multi-GNSS accuracy, and robust memory makes it a future-proof choice for micromobility operators.
