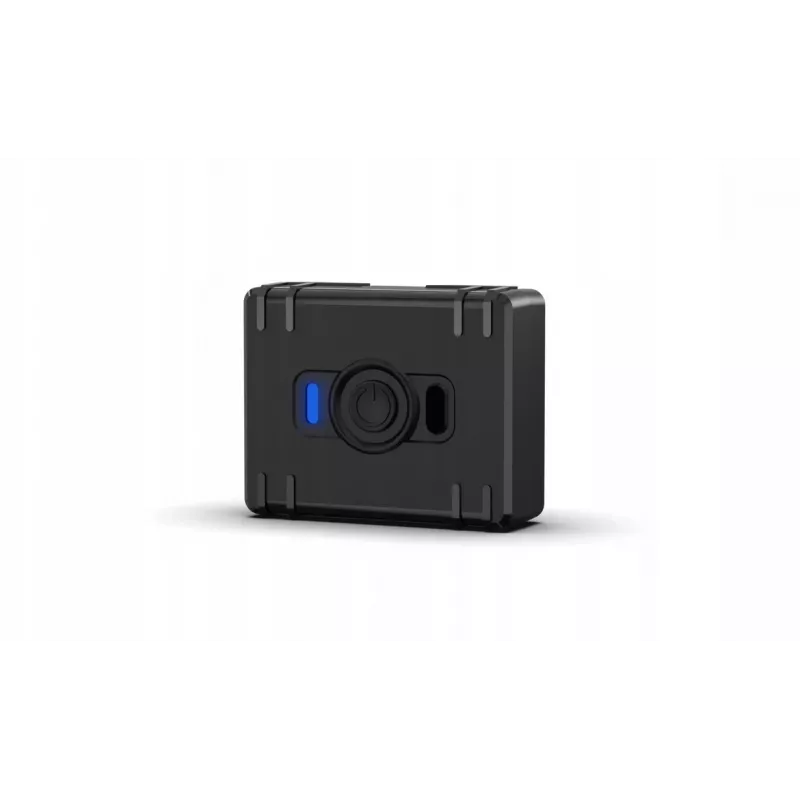

Teltonika Rastreador GPS ATC700AAAA01

The Teltonika ATC700AAAA01 is a versatile GPS tracking device designed for vehicle and asset tracking applications. Featuring multi-constellation GNSS support and quad-band GSM connectivity, it provides reliable real-time location data and communication. With built-in accelerometer, digital and analog inputs, and a 1-Wire interface, this tracker is suitable for a wide range of monitoring and control scenarios.

Advantages

Multi-constellation GNSS (GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, DGPS, AGPS) ensures accurate positioning even in challenging environments. The internal 1700 mAh rechargeable battery provides backup power, and the device supports FOTA (Firmware Over The Air) for easy updates. Compact design with IP41 rating makes it suitable for indoor and protected outdoor installations.

Suitable for

• Vehicle tracking and fleet management
• Asset tracking and monitoring
• Green driving and over speeding detection
• Crash and towing detection
• Geofencing and immobilizer applications

Key specifications

• GNSS: GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, DGPS, AGPS
• GSM: Quad-band 850/900/1800/1900 MHz
• Data: GPRS Class 12, TCP/UDP
• Internal battery: 1700 mAh Li-ion rechargeable
• Power supply: 10-30 V DC
• Digital inputs: 1
• Analog inputs: 1
• Digital outputs: 1
• 1-Wire interface: Yes
• Internal memory: 128 MB Flash (up to 245,760 records)
• Accelerometer: Yes
• Operating temperature: -40 °C to +85 °C
• IP rating: IP41
• SIM card: Micro-SIM
• USB interface: 1 (for configuration)
• FOTA: Yes

Recommendations

For optimal performance, use a high-quality Micro-SIM card with an active data plan. Ensure the device is installed in a location with good GNSS and GSM signal reception. Regular firmware updates via FOTA are recommended to access the latest features and improvements.
