Terminal de extremidade duplo Klauke 87313 2 x 0,75 mm² cinzento

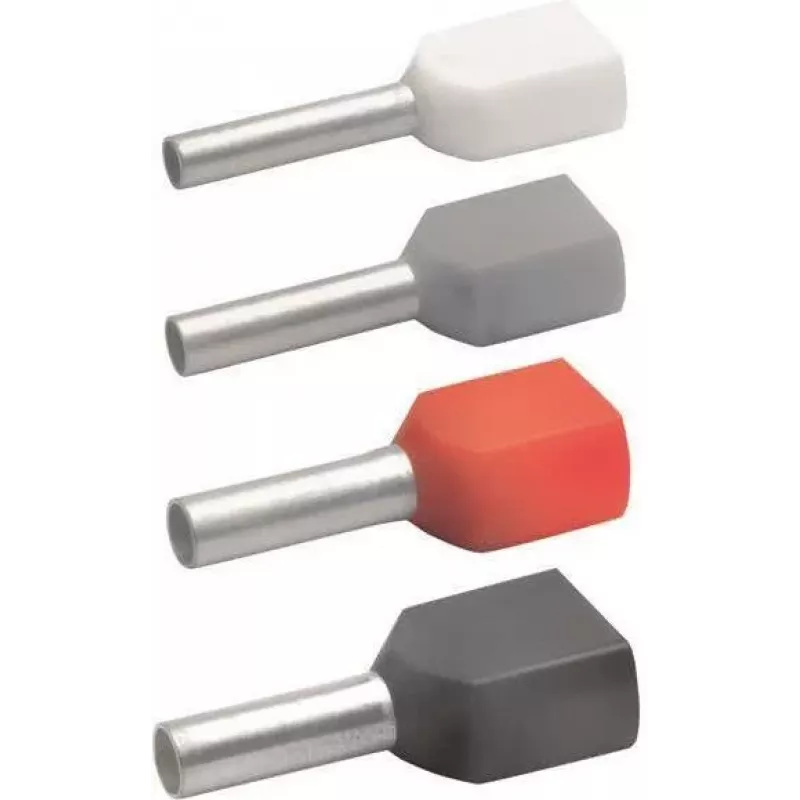

The Klauke 87313 is a twin wire end ferrule engineered for reliable termination of two fine-stranded conductors with a nominal cross-section of 0.75 mm² each. Its grey polypropylene insulation provides clear colour coding for quick identification in control cabinets and terminal blocks.

Highlights

• Accommodates two 0.75 mm² conductors (18 AWG) in a single crimp
• Tin-plated electrolytic copper sleeve ensures low contact resistance and corrosion resistance
• Halogen-free polypropylene insulation withstands temperatures up to 105 °C
• Conforms to DIN 46228 Part 4 for consistent crimping quality

In daily use

This ferrule simplifies wiring of two conductors into one terminal point, reducing installation time and improving connection reliability. The 12 mm metal sleeve length provides secure conductor retention, while the 18 mm total length fits standard terminal blocks.

Full specifications

• Ferrule type: Twin wire end ferrule
• Nominal cross-section per wire: 0.75 mm²
• Total nominal cross-section: 2 x 0.75 mm²
• AWG equivalent per wire: 18 AWG
• Sleeve length (metal part): 12 mm
• Total length: 18 mm
• Insulation colour: Grey
• Conductor material: Electrolytic copper
• Surface treatment: Tin-plated
• Insulation material: Polypropylene (PP)
• Halogen-free: Yes
• Temperature resistance: Up to 105 °C
• Standard compliance: DIN 46228 Part 4
• Inner diameter of sleeve (d1): 1.3 mm
• Outer diameter of sleeve (d2): 2.8 mm
• Outer diameter of insulation (d3): 4.0 mm
• Application: For fine-stranded conductors

Final note

Klauke's precision manufacturing ensures consistent dimensions and reliable crimping, making the 87313 a dependable choice for professional electrical installations.
