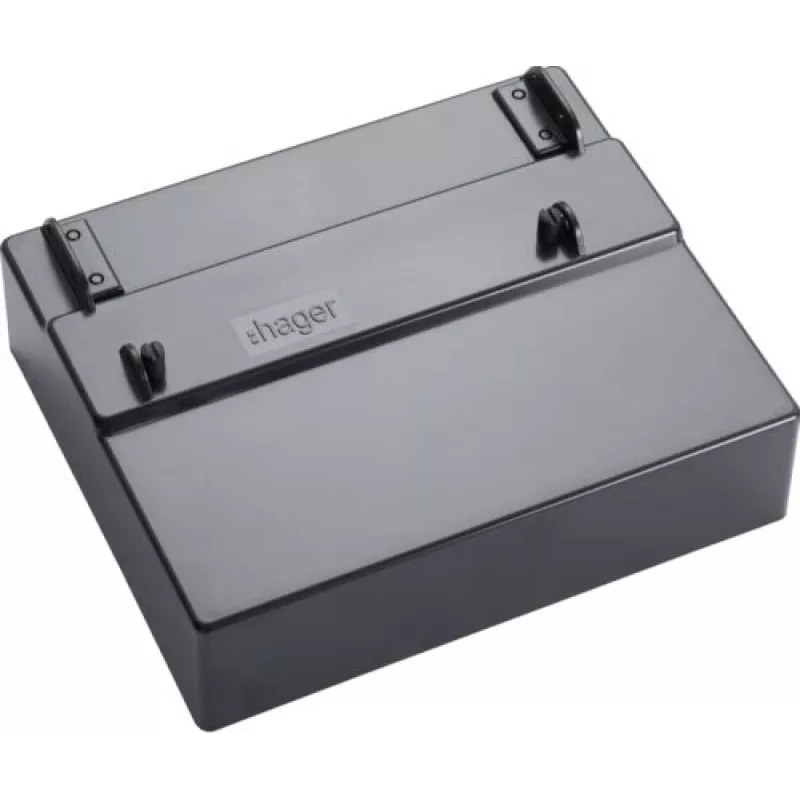

Terminal de ligação de contador HAGER KJ31S 100 A trifásico

Meter connection terminal block for three-phase systems, rated for 100 A. Provides a secure screw-terminal connection point for electricity meters on mounting plates or meter boards.

Advantages

Rated for 100 A continuous current, suitable for main conductor cross-sections up to 50 mm² rigid or 35 mm² flexible. Three-pole design matches three-phase supply requirements. Thermoplastic insulation and copper contacts ensure reliable performance.

Suitable for

• Electricity meter installations in residential and commercial distribution boards
• Three-phase (Drehstrom) supply connections
• Mounting on meter boards or mounting plates

Key specifications

• Current rating: 100 A
• Nominal voltage: 400 V AC (phase-to-phase)
• Number of poles: 3
• Connection technology: screw terminals
• Main conductor cross-section: 1.5 - 50 mm² (rigid), 1.5 - 35 mm² (flexible)
• Mounting type: for meter boards / mounting plate
• Protection class: IP20
• Insulation material: thermoplastic
• Contact material: copper
• Colour: grey

Recommendations

For use by qualified electricians in accordance with local regulations. Ensure conductors are properly sized and torqued to manufacturer specifications.
