Terminal de ponta duplo isolado TRYTYT 2x4,0mm² 12mm cinzento (100 unid.) DUID-2x4,0-12SZ

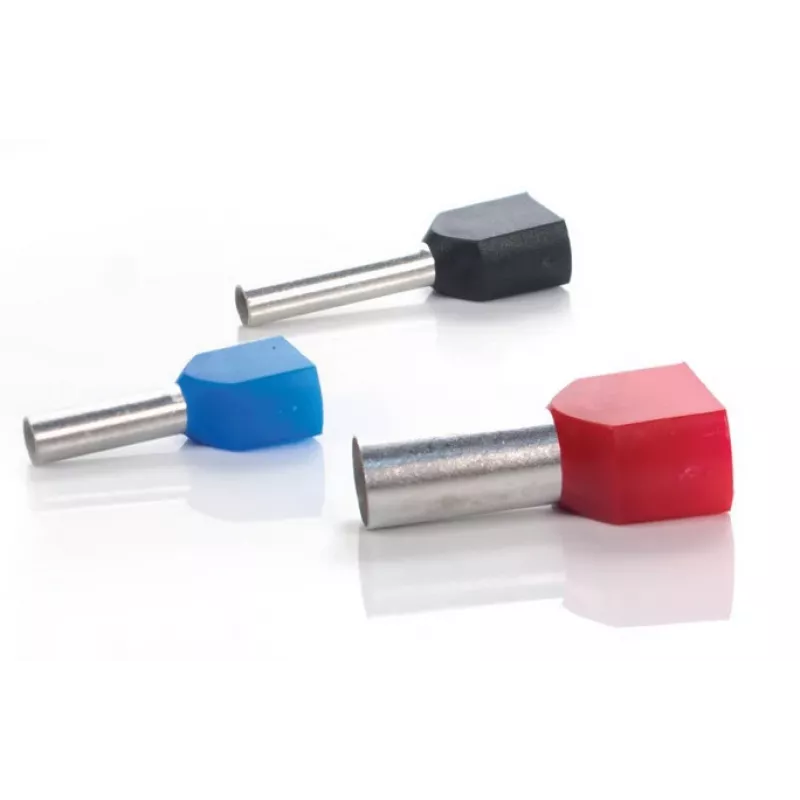

The TRYTYT DUID-2x4,0-12SZ twin insulated ferrule is designed for reliable and secure termination of two conductors in a single ferrule. Made from tin-plated electrolytic copper with halogen-free polypropylene insulation, it ensures excellent conductivity and safety. Ideal for use in control cabinets, junction boxes, and industrial wiring applications.

Advantages

Time-saving dual-wire entry; funnel-shaped conductor entry for easy insertion; halogen-free insulation for reduced environmental impact; wide operating temperature range from -40°C to +105°C.

Suitable for

• Control cabinet wiring
• Junction boxes
• Industrial automation
• Power distribution systems

Key specifications

• Ferrule Type: Twin Insulated Ferrule
• Wire Cross-Section: 2 x 4.0 mm²
• Insulation Colour: Grey
• Quantity per Pack: 100 pieces
• Metal Tube Length: 12 mm
• Total Length: 21 mm
• Internal Diameter (Metal Tube): 4.9 mm
• Outer Diameter (Metal Tube): 5.3 mm
• Insulation Diameter: 6.5 mm
• Operating Temperature: -40°C to +105°C
• Voltage Rating: Up to 600V
• Standard Compliance: DIN 46228 Part 4
• Flammability Rating: UL94 V-2
• RoHS Compliant: Yes

Recommendations

For best results, use with a compatible crimping tool designed for twin ferrules. Ensure proper stripping length before insertion.
