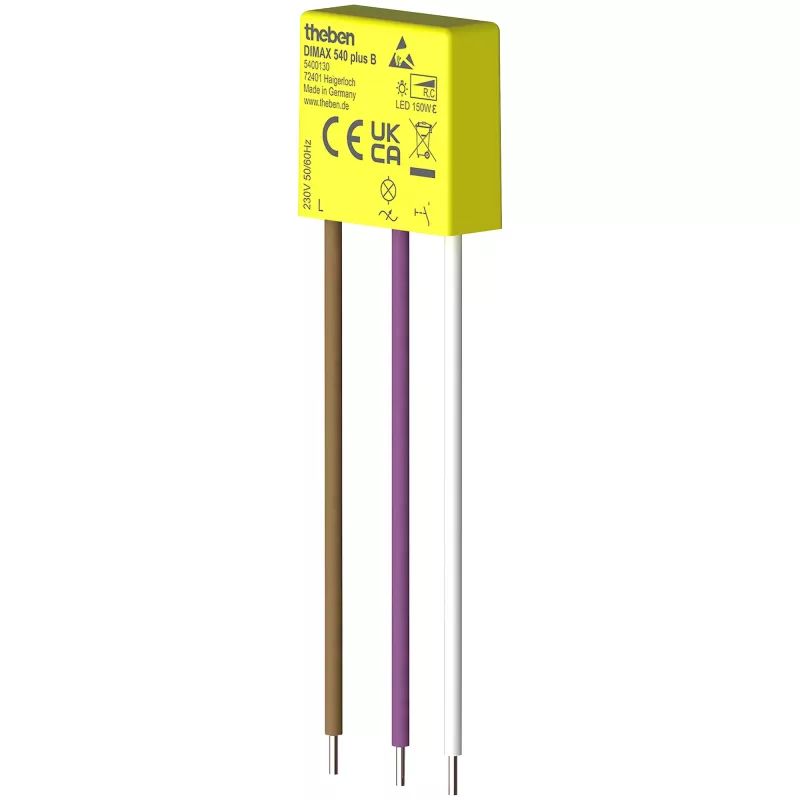

THEBEN THE DIMAX 540 plus B Dimmer universal de encastrar para lâmpadas incandescentes, halogéneas e LED, 400 W, controlo por botão, branco

In a modern living room, a homeowner wants to set the perfect lighting mood for movie night. They press the pushbutton once, and the lights gently fade to a warm, dim glow. This is the everyday convenience delivered by the THEBEN THE DIMAX 540 plus B universal dimmer. Designed for flush-mounted installation, it replaces a standard light switch and brings smooth, flicker-free dimming to incandescent, halogen, and dimmable LED lamps.

Key specifications

• Universal dimmer for incandescent, HV halogen, LV halogen (with suitable transformer), dimmable LED, and dimmable CFL lamps
• Automatic phase control (leading/trailing edge) for optimal compatibility
• Maximum load: 400 W for incandescent/HV halogen, 200 W for dimmable LED
• Minimum load: 3 W
• Input voltage: 230 V AC, 50/60 Hz
• Pushbutton control (Tastersteuerung) with soft ON/OFF function
• Memory function stores last dimming value
• Adjustable minimum brightness
• Standby loss less than 0.5 W
• Overload, short-circuit, and thermal overload protection
• Screw terminals for secure wiring
• Installation depth: 33 mm
• Operating temperature range: -20°C to +50°C

Why choose it

This dimmer stands out for its versatility and reliability. The automatic phase control detects the connected load and selects the appropriate dimming method, eliminating the need for manual configuration. The memory function recalls your last brightness setting, so you don't have to readjust every time. The soft ON/OFF feature extends lamp life by reducing inrush current, and the low standby loss keeps energy consumption minimal. With robust protection against overload, short circuits, and overheating, it is built to last in demanding environments.

Ideal use cases

• Residential lighting control in living rooms, bedrooms, and hallways
• Commercial spaces such as hotel rooms, restaurants, and offices
• Retrofit projects where existing switches are replaced with dimmers
• Applications requiring precise mood lighting with LED or halogen lamps

Good to know

The THE DIMAX 540 plus B is a flush-mounted device, meaning it fits into a standard wall box behind a pushbutton cover. It is compatible with a wide range of dimmable LED lamps, but for best results, use lamps that are explicitly marked as dimmable. The minimum brightness can be adjusted to prevent flickering or drop-out at low levels. Installation should be carried out by a qualified electrician in accordance with local regulations.
