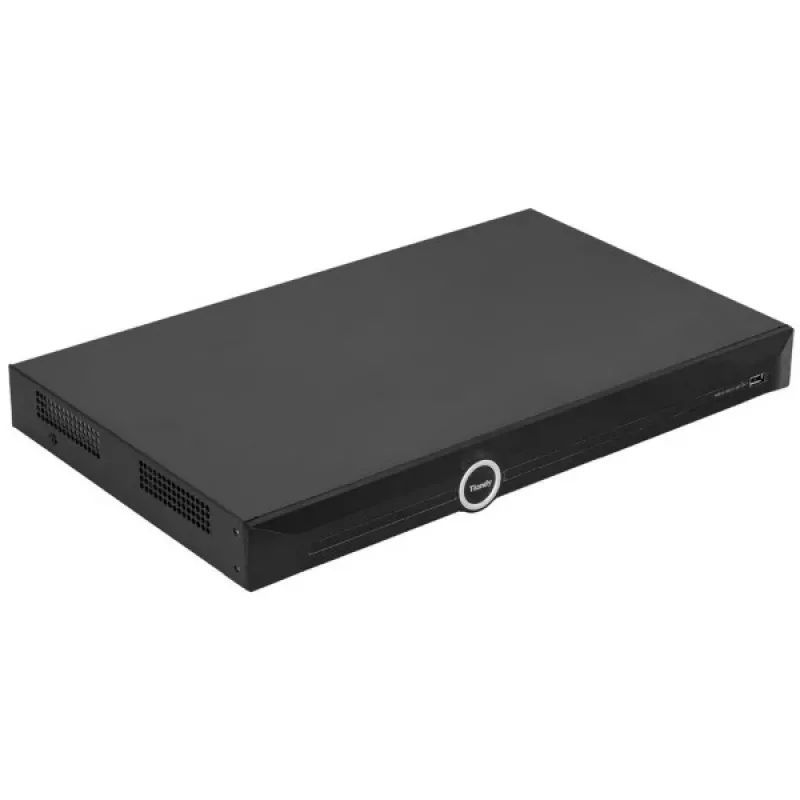

Tiandy TC-R3240 NVR IP 40 Canais, 12MP, H.265, 2 SATA, 320Mbps

The Tiandy TC-R3240 is a high-performance 40-channel IP network video recorder designed for professional surveillance systems. Supporting up to 12MP resolution and advanced S+265/H.265/H.264 compression, it delivers exceptional video quality while optimizing bandwidth and storage. With 320 Mbps incoming bandwidth and powerful decoding capabilities, this NVR is ideal for medium to large-scale security installations.

Advantages

• 40 IP channels with 320 Mbps incoming bandwidth for high-density camera setups
• Supports up to 12MP resolution for ultra-detailed video
• Intelligent video analytics: face detection, perimeter protection, line crossing, object left/lost, counting, heat map
• Dual SATA bays supporting up to 10TB each for extensive storage
• 4K HDMI output for crisp local monitoring

Suitable for

• Commercial and industrial surveillance systems
• Retail stores, warehouses, and office buildings
• Smart city and perimeter security projects
• Integration with Tiandy IP cameras and third-party ONVIF devices

Key specifications

• Video Input: 40 IP channels
• Max Recording Resolution: 12MP (4096x3072)
• Video Compression: S+265 / H.265 / H.264
• Incoming Bandwidth: 320 Mbps
• Outgoing Bandwidth: 160 Mbps
• Decoding: 2-ch@12MP (30fps), 4-ch@8MP (30fps), 8-ch@4MP (30fps), 16-ch@1080P (30fps)
• Video Output: 1x HDMI (up to 4K), 1x VGA (up to 1080p)
• Audio: 1x RCA In / 1x RCA Out
• Alarm: 4x In / 1x Out
• HDD Bays: 2x SATA (up to 10TB each)
• Network: 1x RJ45 10/100/1000 Mbps
• USB: 1x USB 2.0 (front), 1x USB 3.0 (rear)
• Power: DC12V, ≤10W (without HDD)
• Operating Temperature: -10°C to 55°C

Recommendations

For optimal performance, pair with Tiandy IP cameras and use enterprise-grade SATA HDDs. Ensure proper ventilation and stable power supply.
